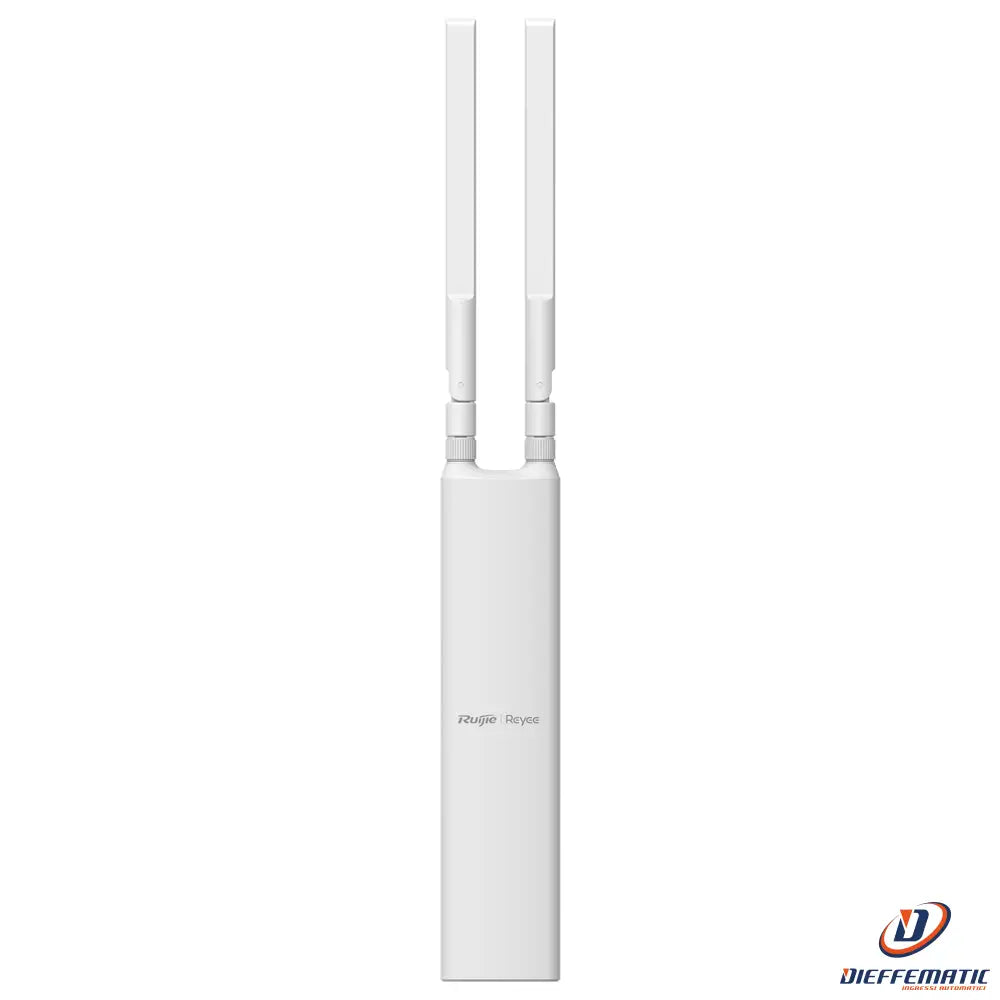

Reyee Rg-Rap52-Od Wi-Fi Access Point

Wi-Fi Access Point

Model RG-RAP52-OD

SKU: RG-RAP52-OD

• Reyee

• Omnidirectional Wi-Fi 5 AP

• Suitable for outdoor use, IP65, compact design

• Supports 802.11a/b/g/n/ac Wave 2

• Transmission speed up to 1267 Mbps

• Removable 2x2 MIMO antennas


DESCRIPTION:

• Reyee

• Dual-band 2.4 and 5 GHz Wi-Fi 5 802.11AC access point with two streams

• Compact design

• Compatible with 802.11a/b/g/n/ac Wave 2

• Up to 300Mbps on 2.4GHz and 867Mbps on 5GHz

• 2x2 MIMO technology with removable omnidirectional antennas - MultiSSID

• Temperature range from -30 to 65 °C

• 802.3af PoE and 24V Passive PoE power supply

• IP65


SPECIFICATIONS:

Brand
Reyee

Wireless standard
Wi-Fi 5 802.11ac

Frequencies
2.4 and 5GHz

2.4GHz transmission speed
Up to 300 Mbps

5GHz transmission speed
Up to 867 Mbps

Integrated antenna
Removable dual-band 2x2 MIMO antennas
Male SMA connectors

Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh

Security
WPA / WPA2 (AES) / WPA-PSK

Management
Configuration via web interface or remotely using the Ruijie cloud app

Interface
1 RJ45 10/100/1000Mbps Base-T port

Outdoor certification
IP65

Power supply
PoE IEEE802.3af / 802.3at < 14W
Passive PoE 24V

Operating temperature
-3 °C ~ 65 °C

Dimensions
220 mm x 50mm x 35.7 mm (Without mounting brackets or antennas)

Weight
0.4 kg


CONTENTS:

• Access Point

• Installation Guide

• Mounting Anchors
