Description

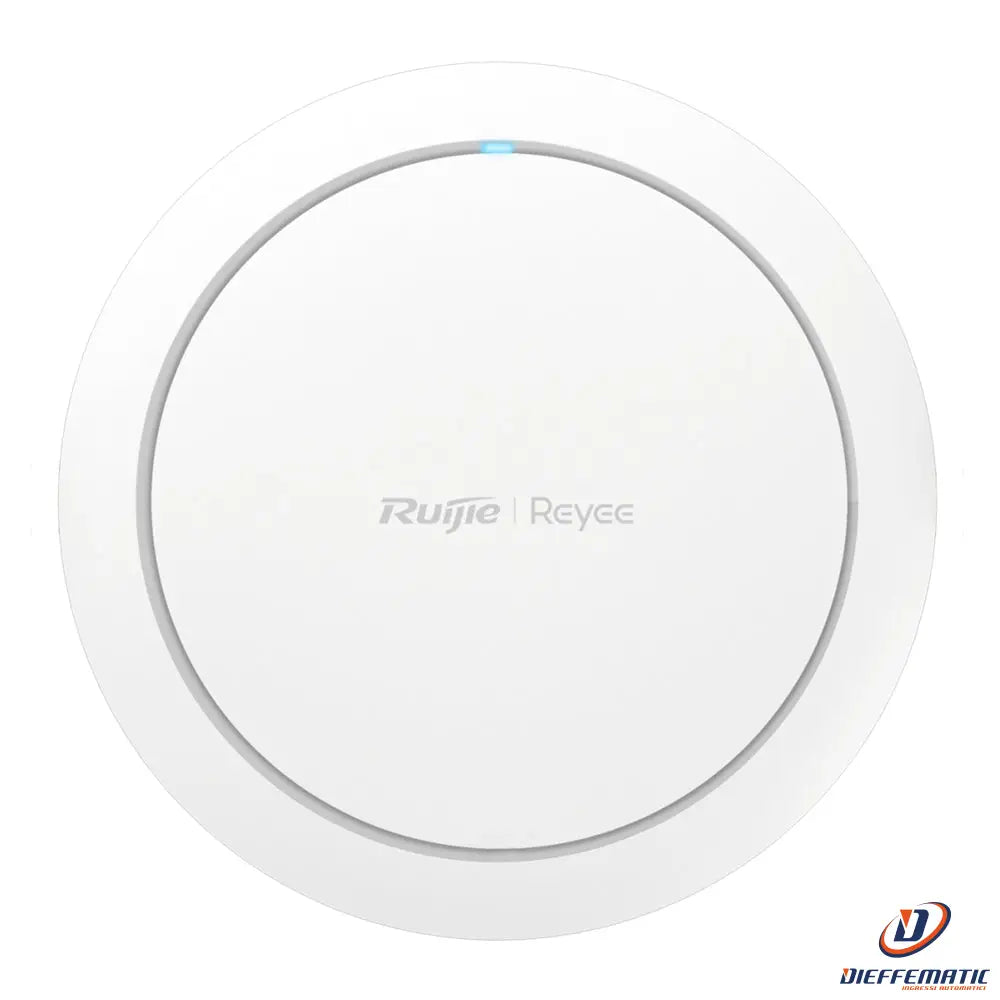

Wi-Fi Access Point
Mod. RG-RAP2266
SKU: RG-RAP2266
• Reyee
• Omnidirectional Wi-Fi 6 AP
• 2.4 and 5 GHz frequency / 160MHz bandwidth
• Supports 802.11a/b/g/n/ac/ax
• Wi-Fi performance up to 3000 Mbps
• MU-MIMO antennas, 2x2 at 2.4GHz and 2x2 at 5GHz
DESCRIPTION:
• Reyee
• Dual-band Wi-Fi 6 802.11ax access point, 2.4 and 5 GHz
• Compatible with 802.11 b/g/n/ac Wave1/Wave2/ax
• Supports connections up to 3000 Mbps
• Antennas with 2x2 MIMO technology for 2.4GHz and 2x2 MIMO for 5GHz
• Up to 160MHz channel bandwidth
• Multi-SSID
• Temperature range from 0 to 40°C
• PoE power supply
• Powerful and intuitive operation with Ruijie's free Cloud
SPECIFICATIONS:
Brand
Reyee
Wireless standard
Wi-Fi 6 802.11ax
Frequencies
2.4 GHz and 5GHz
Wi-Fi performance
Up to 3000 Mbps
Radio1: 2.4GHz - 574 Mbps
Radio2: 5GHz - 2402 Mbps - Up to 160MHz
Maximum transmission power
Radio1: 2.4GHz - 20 dBm
Radio2: 5GHz - 30 dBm
Integrated antenna
Radio1: 2.4GHz - 2x2 MIMO 3,53dBi
Radio1: 5GHz - 2x2 MIMO 5,15dBi
Interfaces
1 Uplink 1 RJ45 10/100/1000 Mbps PoE In
SSID
Up to 8
Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh
Security
WPA-PSK, WAP2-PSK and WPA-WAP2-PSK
Management
Web/Cloud/APP/Console
Simultaneous clients
Maximum software: 512 / Recommended: 110
Technologies
Hidden SSID
Band steering
Load balancing
Bandwidth control
802.11k/v roaming
Power supply
PoE IEE802.3af/at 18W
DC 12V/2A
Operating temperature
0 °C ~ 40 °C
AP dimensions
220 x 220 x 52,6 mm
Weight
500 g (bracket not included)
CONTENTS:
• Access point
• Installation guide
• Screws
• Mounting bracket
CLICK ON THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
24-month warranty
