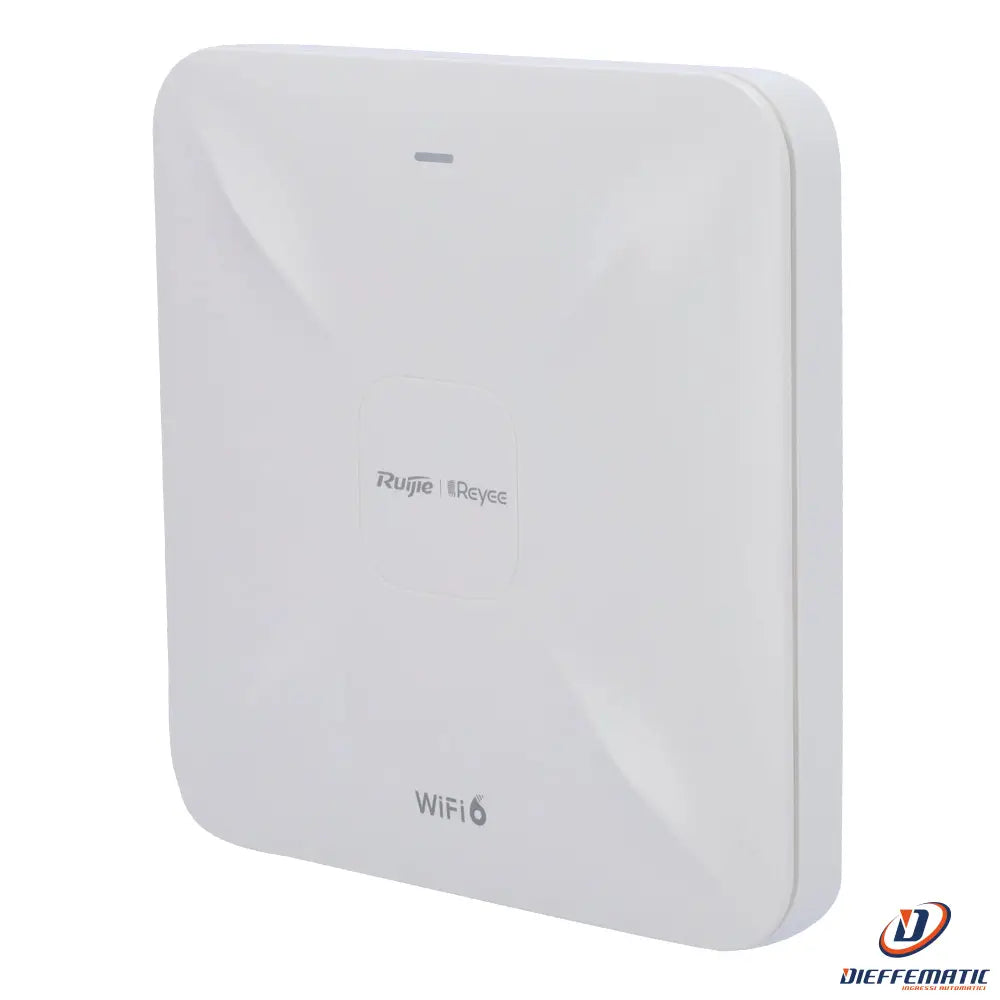

Reyee Rg-Rap2260G Wi-Fi Access Point

Wi-Fi Access Point

Model RG-RAP2260G

SKU: RG-RAP2260G

• Reyee

• Omnidirectional Wi-Fi 6 AP

• 2.4 and 5 GHz frequency

• Supports 802.11a/b/g/n/ac/ax

• Transmission speed up to 1775 Mbps

• 2x2 MIMO antenna


DESCRIPTION:

• Reyee

• Dual-stream WiFi 6 802.11AX access point with 2.4 and 5 GHz bands

• Compatible with 802.11a/b/g/n/ac/ax

• Supports connections up to 1775 Mbps

• MIMO technology with two integrated 3 dBi antennas

• Temperature range from 0 to 40 °C

• PoE+ power supply


SPECIFICATIONS:

Brand
Reyee

Wireless standard
WiFi 6 802.11AX

Frequencies
2.4 GHz and 5GHz

2.4GHz transmission speed
Up to 574 Mbps

5GHz transmission speed
Up to 1201 Mbps

Maximum transmission power
20 dB

Maximum sensitivity
-88 dBm@MCS0

Integrated antenna
2x2 internal MIMO antennas, 2.4 GHz (3dBi) and 5 GHz (3dBi)

SSID
Up to 8

Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh

Security
WPA / WPA2 (AES) / WPA-PSK

Management
Configuration via web interface or remotely using the Ruijie Cloud app

Interface
2 Base-T 10/100/1000Mbps ports

Power supply
PoE+ 802.3at 15.3W
DC 12V/1.5A

Operating temperature
°C ~ 40 °C

Dimensions
194 x 194 x 35 mm

Weight
560 g


CONTENTS:

• Access point

• Installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Reyee RG-RAP2260(G) Access Point Hardware Installation and Reference Guide

24-month warranty
