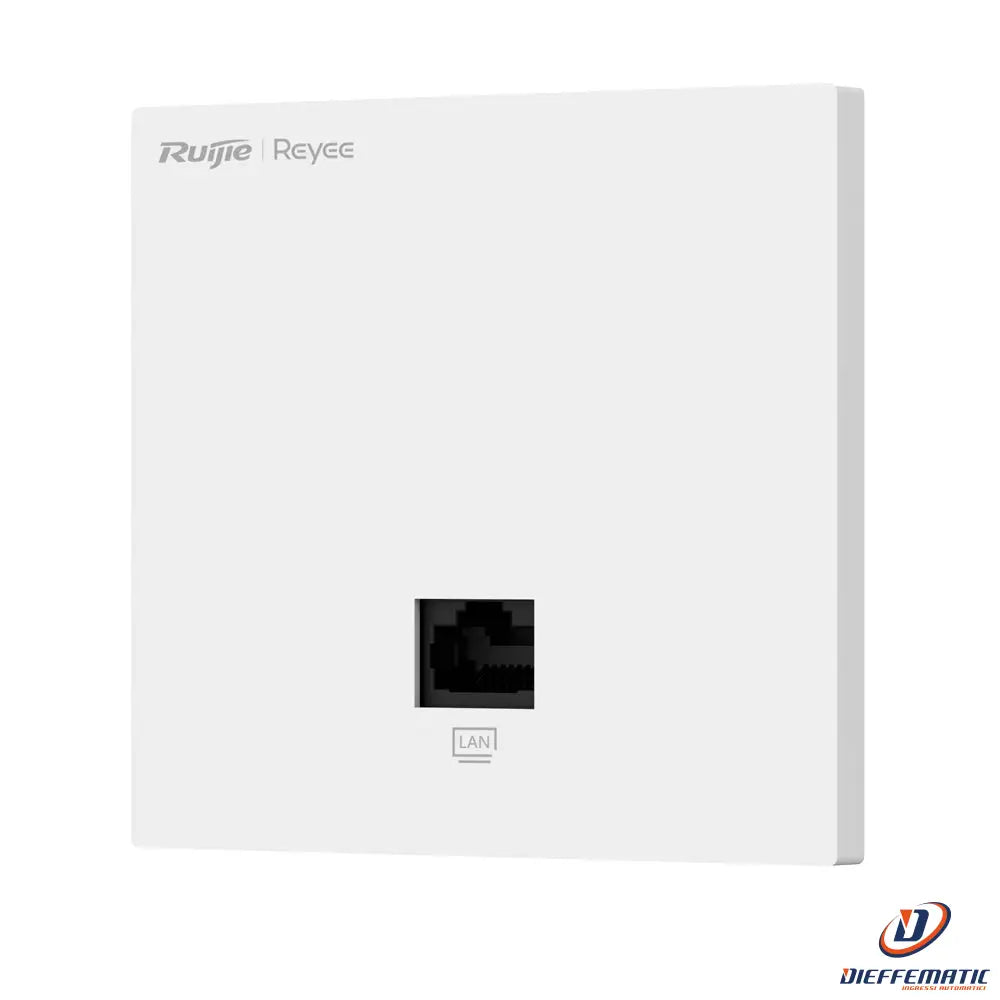

Reyee Rg-Rap1201 Omnidirectional Wall-Mount Wi-Fi Access Point

Omnidirectional wall-mounted Wi-Fi access point

Model RG-RAP1201

SKU: RG-RAP1201

• Reyee

• 5 GHz omnidirectional wall-mounted Wi-Fi AP

• Supports 802.11 b/g/n/ac Wave 1 and 2 at 2.4 GHz and 5 GHz

• Transmission speed up to 1267 Mbps

• 2x Gigabit RJ45 ports

• Installation in junction boxes


DESCRIPTION:

• Reyee

• Dual-band 2.4 and 5 GHz Wi-Fi AC 802.11ac access point

• Compatible with 802.11 b/g/n/ac Wave1/Wave2

• Up to 400 Mbps at 2.4 GHz and 867 Mbps at 5 GHz

• 2x2 MIMO technology with two integrated omnidirectional antennas

• 2x Gigabit RJ45 ports (Downlink + Uplink)

• Multi-SSID

• Temperature range from 0 to 40°C

• PoE power supply

• Installation in flush-mounting boxes


SPECIFICATIONS:

Brand
Reyee

Wireless standard
Wi-Fi 5 (802.11ac)

Frequencies
2.4 GHz and 5 GHz

2.4 GHz transmission speed
For 400 Mbps

5 GHz transmission speed
For 867 Mbps

Maximum transmission power
Adjustable

Maximum sensitivity
-91dBm@MCS0

Integrated antenna
2x2 internal omnidirectional MIMO antennas at 2.4 GHz (2dBi) and 5 GHz (2dBi)

Operating modes
Wireless access point
Routing with basic functions
Not compatible with Reyee AP Mesh

Security
WPA / WPA2 (AES) / WPA-PSK

SSID
Up to 8

Management
Configuration via web interface or remotely with the Ruijie cloud app

Interface
1 Rear Uplink RJ45 10/100/1000 Mbps PoE In
1 Downlink RJ45 10/100/1000 Mbps

Power supply
PoE IEEE802.3af < 9W

Operating temperature
0 °C ~ 40 °C

Dimensions
86 x 86 x 42.4

Weight
140 g


CONTENTS:

• Access point

• Installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Ruijie Reyee RG-RAP1201 Access Point Hardware Installation and Reference Guide

24-month warranty
