Description

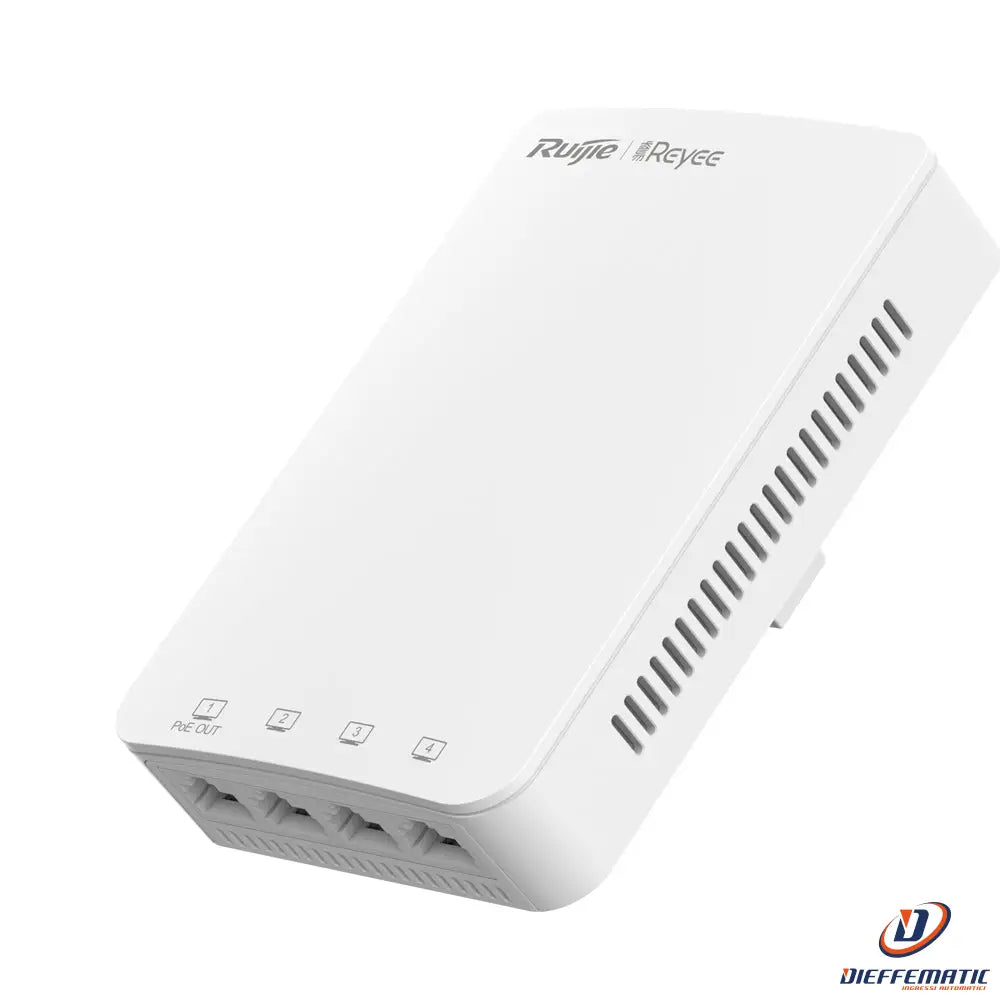

Wi-Fi access point
Model RG-RAP1200(P)
SKU: RG-RAP1200(P)
• Reyee
• 5 Omnidirectional Wall-Mounted Wi-Fi AP
• 2.4 and 5 GHz frequency
• Transmission speed up to 1267 Mbps
• Integrated 4-port Gigabit switch
• Installation in junction boxes
DESCRIPTION:
• Reyee
• Dual-band Wi-Fi AC 802.11ac access point, 2.4 and 5 GHz
• Compatible with 802.11 b/g/n/ac Wave1/Wave2, enabling connections up to 1267 Mbps
• MIMO technology with two integrated omnidirectional antennas
• Multi-SSID
• Integrated 4-port Gigabit switch
• Installation in electrical back boxes
• Temperature range from 0 to 40°C
• PoE power supply
• Powerful, intuitive operation with Ruijie’s free cloud service
SPECIFICATIONS:
Brand
Reyee
Ports
4 RJ45 10/100/1000 Mbps + 1 rear Gigabit RJ45 uplink
Wireless standard
WiFi AC (802.11ac)
Frequencies
2.4 GHz and 5 GHz
2.4 GHz transmission speed
For 400 Mbps
5 GHz transmission speed
For 867 Mbps
Maximum transmission power
Adjustable 20 dB
Maximum sensitivity
-92.5dBm@MCS0
Integrated antenna
2x2 internal omnidirectional MIMO antennas, 2.4 GHz and 5 GHz
Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh
Security
WPA / WPA2 (AES) / WPA-PSK
SSID
Up to 8
Management
Configuration via web interface or remotely using the Ruijie cloud app
Downlink interface
1 Rear uplink RJ45 10/100/1000 Mbps PoE In
4 Downlink RJ45 10/100/1000 Mbps (1 with PoE Out)
Installation
Electrical box
Power supply
PoE IEE802.3af 8W / 23,4W when using the PoE Out port
Operating temperature
0 °C ~ 40 °C
Dimensions
126 x 86 x 50 mm
Weight
240 g
CONTENTS:
• Access point
• Installation guide
CLICK THE LINKS FOR THE MANUFACTURER’S DOCUMENTATION:
PDF datasheet
