Description

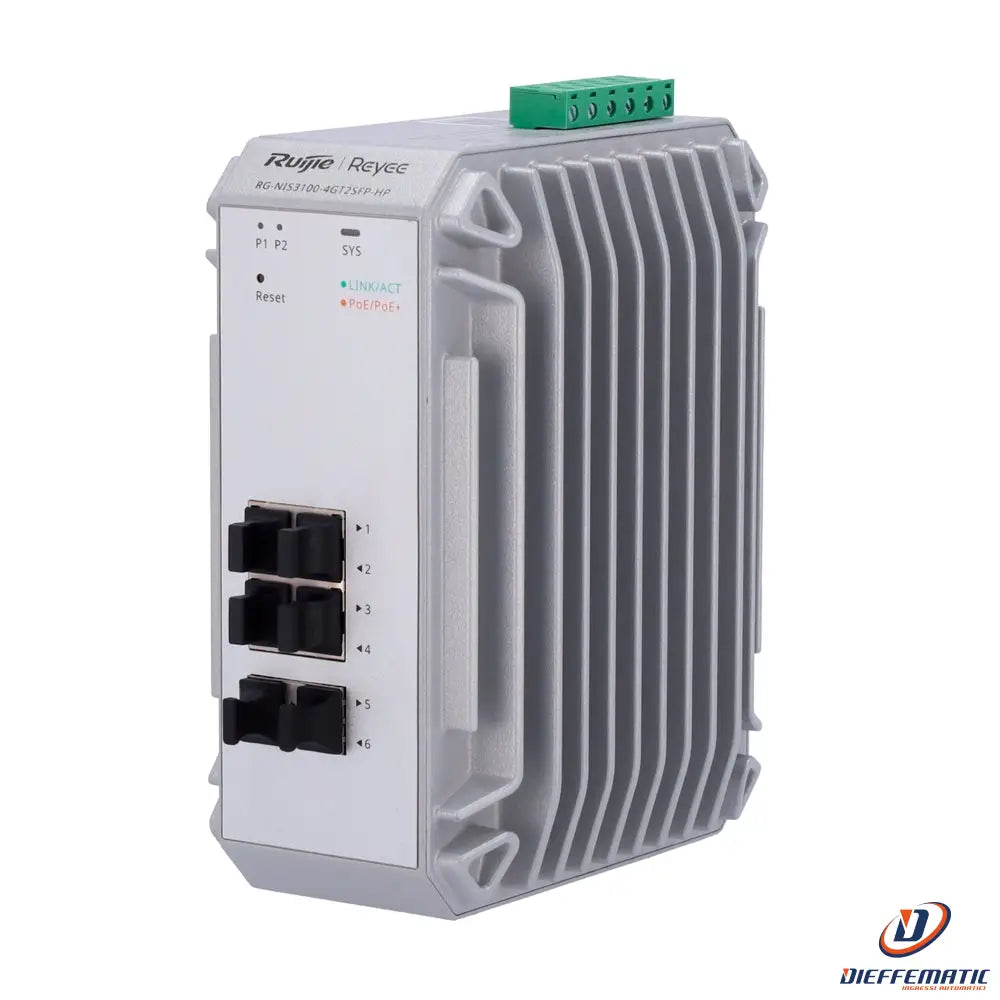

Layer 2 Cloud Industrial PoE Switch
Model RG-NIS3100-4GT2SFP-HP
SKU: RG-NIS3100-4GT2SFP-HP
• Reyee Layer 2 Cloud Industrial PoE Switch
• 4 Gigabit PoE+ ports + 2 Gigabit SFP ports
• 30W per port 802.3af/at / Maximum 120W
• Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring
• VLAN/Loop Prevention/STP/RSTP/ACL/Watchdog
• DIN rail mounting
DESCRIPTION:
• Reyee
• Managed Layer 2 Industrial PoE Switch
• 4 RJ45 ports 10/100/1000 Mbps + 2 Gigabit SFP ports
• DIN rail mounting
• 4 PoE/PoE+ ports (ports 1~4) )
• Supports up to 120W of total PoE power across all ports
• Compatible with IEEE802.3af/at PoE
• Dual input for two power supplies
SPECIFICATIONS:
Interface
4 RJ45 ports 10/100/1000 Mbps + 2 SFP ports
Port speed
4 x 10/100/1000 Mbps - 2 x Gigabit SFP
PoE
Ports 1~4 802.3af/at
Power supply
Up to 30 W per port
When the device is powered by 48vdc, the total power is 120W
When the device is powered by 24vdc, the total power is 120W
When the device is powered by 12vdc, the total power is 60W
PoE features
Compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE
VLAN
Up to 4094
Voice VLAN
Redundancy control
Spanning Tree (STP, RTSP)
ERPS (available only on SFP ports)
Network protocols and technologies
LDP/LLDP-MED
DHCP Snooping
IGMP Snooping v1/v2/v3
Energy Efficient Ethernet
ACL
Jumbo Frame 9216
Loop Prevention
SNMP v1/v2c/v3
Management protocols
Web/Cloud/APP
Installation
DIN rail and/or wall
Power supply
Power supply not included
12-56VDC / 7A
Recommended part number:
- RG-NIS-PA120-48
Protection
8KV surge protection
6KV lightning protection
IP40 dust protection
Operating temperature
-40°C~65°C In enclosed environments
-40°C~75°C When an exhaust fan with an airflow rate of 400 LFM is installed on-site
Recommended industrial SFP modules
RG-NIS-GE-SFP-10KM-SM1310
RG-NIS-GE-SFP-20KM-SM1310-BIDI
RG-NIS-GE-SFP-20KM-SM1550-BIDI
RG-NIS-GE-SFP-550M-MM850
Dimensions
85 x 132 x 165mm
Weight
1.86 kg (with packaging)
CONTENTS:
• Switch
• User manual
• Wall-mounting brackets
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
RG-NIS3100 Series Switch Hardware Installation and Reference Guide (V1.1)
Ruijie RG-NBS Switch Web-Based Configuration Guide
24-month warranty
