Description

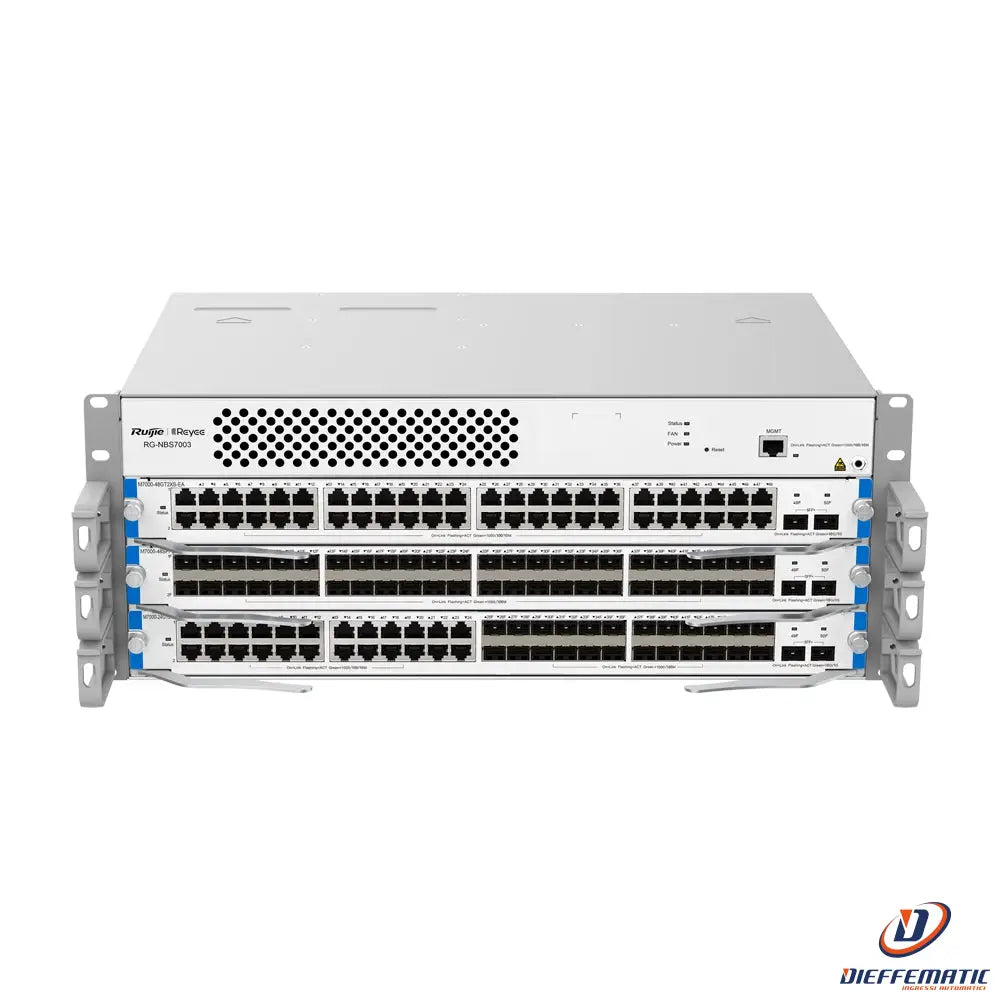

Modular Layer 3 switch
Model RG-NBS7003
SKU: RG-NBS7003
• Reyee modular Layer 3 switch
• 3 expansion slots (total size of 4U)
• Up to 144 GE / 144 SFP GE / 48 SFP+ ports
• Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring
• VLAN/Port Isolation/STP/RSTP/ACL/QoS/802.1X
• DHCP server/Static routes/RIP/OSPF/SNMP
DESCRIPTION:
• Reyee
• Modular Layer 3 switch
• 4U size
• 3 card slots
• Up to 144 Gigabit RJ45 ports
• Up to 144 Gigabit SFP ports
• Up to 48 SFP+ ports
• Switching capacity up to 480Gbps
• Forwarding rate up to 360Mbps
• 32K MAC table
• Up to 1900 ACL rules
• Modular power supplies not included
SPECIFICATIONS:
Size
4 rack units
Expansion slots
3 slots for RG-M7000 cards
Management level
L3
Interfaces
Up to 144 10/100/1000 Mbps RJ45 ports
Up to 144 10/100/1000 Mbps SFP ports
Up to 48 10-Gigabit SFP+ ports
*One or more RG-M7000 cards must be purchased; interfaces may vary depending on the cards selected
Data transfer rate up to
480Gbps
MAC table
Up to 32K
ACL
Up to 1900 rules
Forwarding rate
360Mbps
VLAN
Up to 4096
Voice VLAN
Port-Based VLAN
MAC-Based VLAN
IP-Based VLAN
Redundancy control
Spanning Tree (STP, RTSP)
RLDP
Network protocols and technologies
LLDP/LLDP-MED
IGMP Snooping v1/v2/v3
CPU Protect Policy
Energy Efficient Ethernet
ACL
Jumbo Frame 9216
SNMP
802.1X
RIP
OSPF
DHCP server
DHCP Snooping
Cluster technology
Virtual Cluster Switching
Management protocols
Web/Cloud/APP
Power supply
2 redundant power supply slots. Compatible with:
RG-PA300I-FS (AC 300W)
RG-PA460I-FS (AC 460W)
(Power supply not included)
Operating temperature
0° C - 50° C
Cooling
1 slot for the fan module. Compatible with:
NBS7003-FAN
Weight
9.6 kg (with packaging)
Dimensions
442 mm x 313 mm x 175 mm 4U
CONTENTS:
• Managed L3 switch
• AC power cable
• User manual
• Rack-mounting brackets
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
