Shipping
Shipping in 5-10 business days
Description

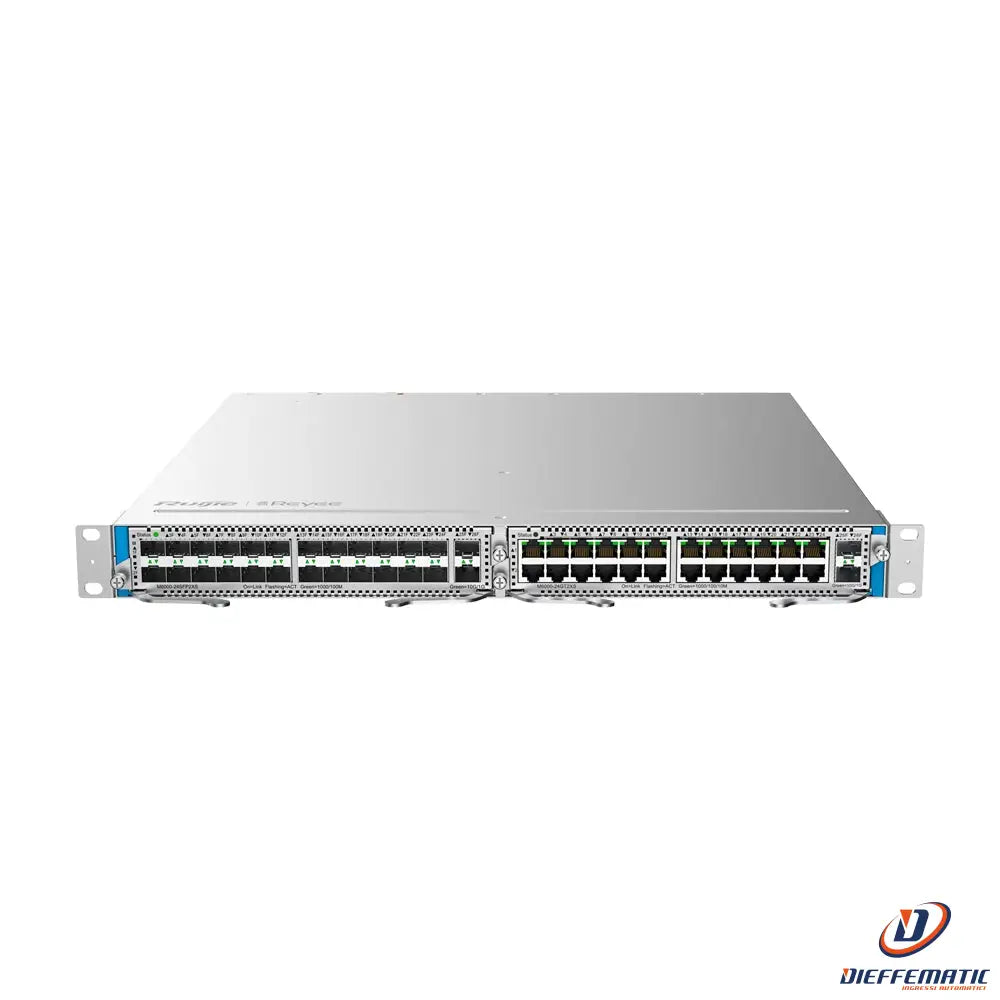

Modular Layer 3 switch
Model RG-NBS6002
SKU: RG-NBS6002
• Reyee modular Layer 3 switch
• 2 expansion slots (total size of 1U)
• Up to 48 GE ports / 48 GE SFP ports / 4 SFP+
• Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring
• VLAN/Port isolation/STP/RSTP/ACL/QoS/802.1X
• DHCP server/Static routes/RIP/OSPF/SNMP
DESCRIPTION:
• Reyee
• Modular Layer 3 switch
• 1U size
• 2 card slots
• Up to 48 Gigabit RJ45 ports
• Up to 48 Gigabit SFP ports
• Up to 4 SFP+ ports
• Switching capacity up to 176Gbps
• Forwarding rate up to 132Mbps
• 32K MAC table
• Up to 1900 ACL rules
• Modular power supplies not included
SPECIFICATIONS:
Size
1 rack unit
Expansion slots
2 slots for RG-M6000 cards
Management layer
L3
Interfaces
Up to 48 10/100/1000 Mbps RJ45 ports
Up to 48 10/100/1000 Mbps SFP ports
Up to 4 10-Gigabit SFP+ ports
*One or more RG-M6000 cards must be purchased; interfaces may vary depending on the cards selected
Data transmission rate up to
176Gbps
MAC table
Up to 32K
ACL
Up to 1900 rules
Forwarding rate
132Mbps
VLAN
Up to 4094
Voice VLAN
Port-Based VLAN
MAC-Based VLAN
IP-Based VLAN
Redundancy control
Spanning Tree (STP, RTSP)
RLDP
Network protocols and technologies
LLDP/LLDP-MED
IGMP Snooping v1/v2/v3
CPU Protect Policy
Energy Efficient Ethernet
ACL
Jumbo Frame 9216
SNMP
802.1X
RIP
OSPF
DHCP server
DHCP Snooping
Cluster technology
Virtual Cluster Switching
Management protocols
Web/Cloud/App
Power supply
2 redundant power supply slots. Compatible with:
RG-PA150I-FS
(Power supply not included)
Operating temperature
0° C - 50° C
Cooling
Internal fans
Side and rear
Noise < 60dB
Weight
6.2 kg (with packaging)
Dimensions
581 mm x 533 mm x 131 mm 1U
CONTENTS:
• L3 managed switch
• AC power cable
• User manual
• Rack mounting brackets
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
