Description

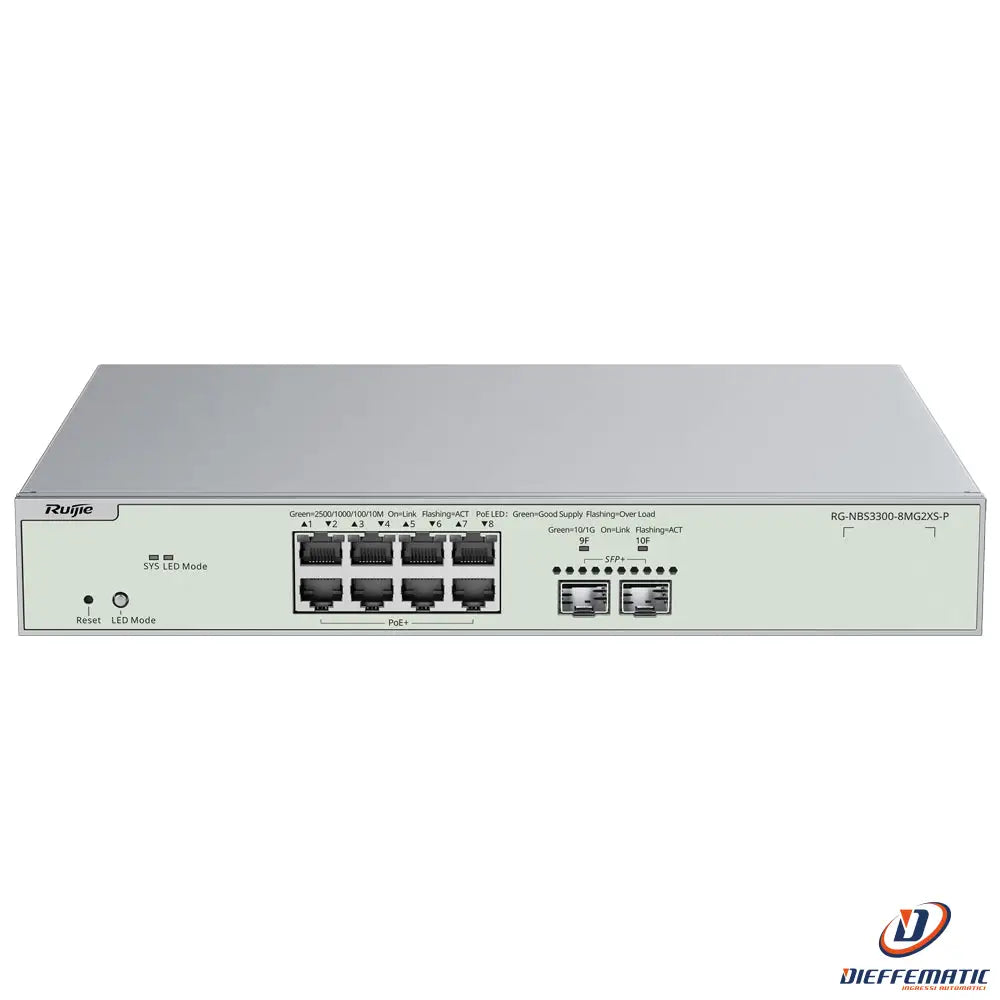

Cloud Layer 2 PoE Switch
Model RG-NBS3300-8MG2XS-P
SKU: RG-NBS3300-8MG2XS-P
• Reyee Cloud Layer 2 PoE Switch
• 8 MultiGigabit PoE ports + 2 10 Gbps SFP+ ports
• PoE 802.3af/at, maximum 240 W
• Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring
• VLAN/Port Isolation/STP/RSTP/ACL/QoS
• Rack-mountable
DESCRIPTION:
High performance: With 10 GbE SFP+ ports, the switch can handle high traffic volumes, making it ideal for high-demand Wi-Fi networks, such as those found in large offices, campuses or major events.
Security: With features such as 802.1X, ACL (Access Control Lists) and advanced VLAN security, you can ensure that only authorized users can access your Wi-Fi network and protect your company's resources.
Easy management: Can be centrally managed via the cloud or Web GUI, simplifying network configuration, monitoring and maintenance.
• Reyee
• Managed Layer 2 desktop switch
• 8 RJ45 ports, 10/100/1000/2500 Mbps + 2 SFP+ ports, 10 Gbps
• 8 PoE/PoE+ ports
• Supports up to 240 W total PoE power across all ports
• Compatible with IEEE 802.3af/at PoE
SPECIFICATIONS:
Interface
8 Multigigabit RJ45 ports + 2 SFP+ ports
Port speed
8 x 10/100/1000/2500 Mbps - 2 x SFP+ 10 Gbps
Power supply
Up to 30 W per port and 240 W for the entire device
PoE features
Compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE
VLAN
Up to 4096
802.1Q VLAN
Port-based VLANs
Voice VLAN
Switching capacity
80 Gbps
Forwarding rate
58.72 Mbps
MAC table
16000
ARP table
1000
Redundancy control
Spanning Tree (STP, RTSP), LLDP, LLDP-MED
Multicast
IGMP v1/v2/v3 snooping / IGMP filtering / IGMP Fast Leave / MVR Mode
ACL
Standard and extended ACLs
QoS
Port-level ingress/egress rate limiting
Authentication
IEEE 802.1X / Port-based Authentication / MAC-based
Maintenance and monitoring
SPAN / NTP CLIENT / SNMP v1/v2/v3 / MQTT / SON / CLOUD
Management protocols
Web/Cloud/APP
Installation
Rack
Power supply
AC 100 V - 240 V
Operating temperature
0° C - 50° C
Dimensions
267.5 (D) x 43.6 (W) x 440 (H) mm
Weight
3.45 kg (with packaging)
CONTENTS:
• PoE switch
• AC power cable
• User manual
• Rack-mounting brackets
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
