Reyee RG-NBF6002M Modular Layer 3 Switch

Modular Layer 3 Switch

Model RG-NBF6002M

SKU: RG-NBF6002M

• Reyee E-Lighten Modular Layer 3 Switch

• 2 expansion slots (total size of 1U)

• Up to 16 E-Lighten splitting and Ethernet ports

• Up to 48 RJ45 ports / 16 GE SFP ports / 4 SFP+ ports

• Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring

• DHCP server/Static routes/RIP/OSPF/SNMP


DESCRIPTION:

• Reyee e-Lighten

• Modular Layer 3 OLT switch

• 1U size

• 2 card slots

• Up to 48 10/100/1000 Mbps RJ45 ports

• Up to 16 E-Lighten SFP ports (PON for passive splitting and Ethernet connections)

• Up to 16 1 Gbps SFP ports

• Up to 4 10 Gbps SFP+ ports

• Compatible with the Reyee PON solution

• 2-in-1 Core + OLT device

• Up to 1200 clients

• Up to 320 ONUs/access switches per device

• Free management via Ruijie Cloud

• 1 MGMT port

• Modular power supplies not included


SPECIFICATIONS:

Dimensions
1 rack unit

Expansion slots
2 slots for MF6000M cards
Compatible cards:
MF6000M-16FS8GT2XS
MF6000M-16GT8SFP2XS
MF6000M-24GT2XS

Interfaces
Up to 48 10/100/1000 Mbps RJ45 ports
Up to 16 1G E-Lighten SFP ports (PON ports can be used for passive splitting and as Ethernet SFP ports)
Up to 16 SFP ports
Up to 4 10 Gbps SFP+ uplink ports

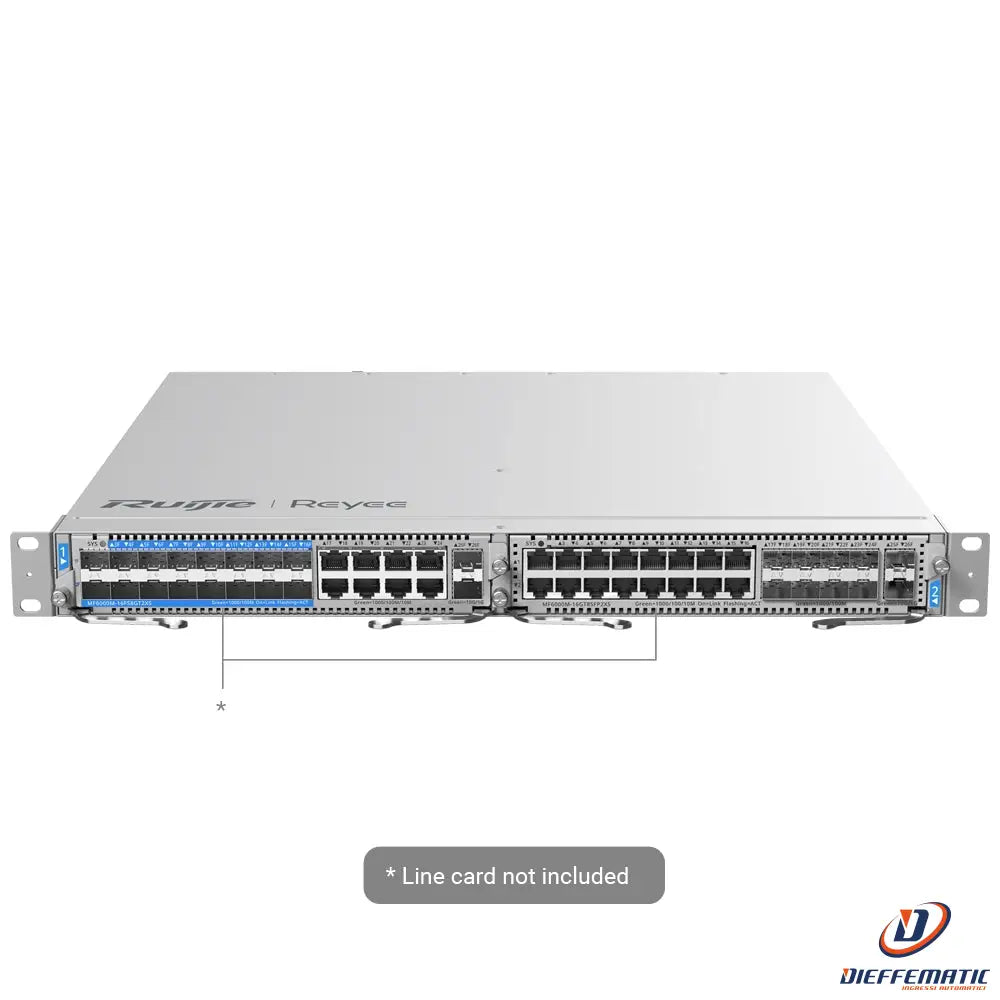

*One or more RG-MF6000M cards must be purchased. The interfaces may vary depending on the cards selected.

PON functionality
Automatic transceiver negotiation
Compatible with RG-OM-GE-SFP-10KM-SM1490
Maximum number of PON ports: 16
Number of ONUs per PON port: 32
Number of ONUs per device: 320
Layer 2 isolation for ONUs connected to the same PON port
Static/dynamic bandwidth allocation for ONUs (SBA/DBA)
Real-time OLT/ONU information on temperature, voltage, tx/rx, etc.
ONU fault alarms (temperature, voltage, tx/rx, etc.)
Automatic ONU connection to the OLT

Data transmission rate up to
216 Gbps

Forwarding rate
132 Mpps

MAC table
32K

VLAN
Up to 4094

Network protocols and technologies
Port aggregation (maximum 16 Layer 3)
802.1X authentication
Port flow control
IGMP Snooping v1,v2,v3
CPU protection policy
IPv6
Port mirroring
ACL

Number of virtual interfaces
64

L3 protocols
RIP
OSPF
Static routing

VCS (Virtual Cluster Switch)
Up to 2 units

Redundancy control
Spanning Tree (STP, RTSP)
RLDP

Management protocols
Web/Cloud/App/SNMP

Surge protection
6 kV on power supply and ports

Power supply
2 redundant power supply slots. Compatible with:
RG-PA150I-FS
(Power supply not included)

Power consumption
126W

Operating temperature
0° C - 50° C

Cooling
3x internal fans (fixed)

Weight
6.82 kg (including packaging)

Dimensions
460 (W) x 44 (H) x 442 (D) mm, 1U


CONTENTS:

• L3 managed switch

• AC power cord

• User manual

• Rack-mount brackets

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Reyee RG-NBF Series Switches ReyeeOS 2.290 - Configuration Guide

Reyee Series RG-NBF Implementation Cookbook

24-month warranty
