Description

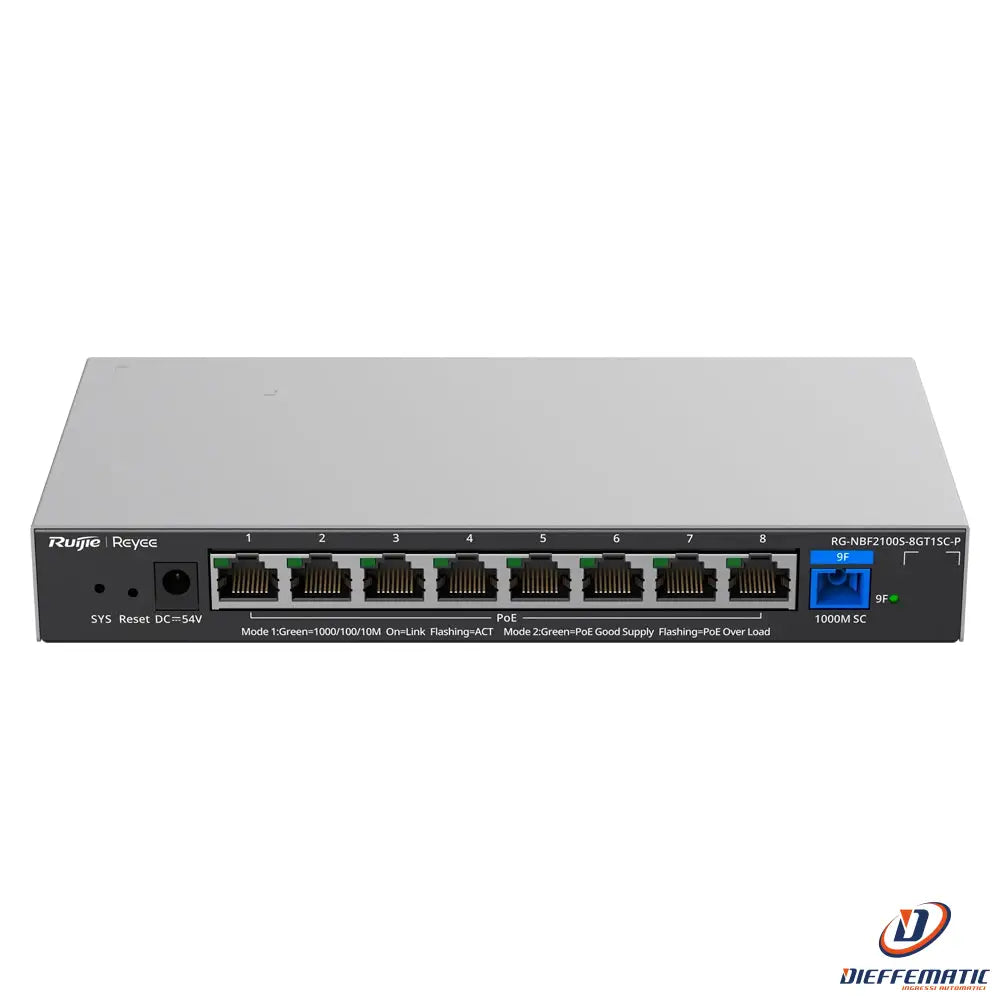

Cloud Layer 2 PoE Switch
Model RG-NBF2100S-8GT1SC-P
SKU: RG-NBF2100S-8GT1SC-P
• Reyee E-Lighten Cloud Layer 2 PoE Switch
• 8 Gigabit 802.3af/at RJ45 ports
• 1 SC 1G optical port (PON)
• 30W per 802.3af/at port / 120W maximum
• VLAN/Port isolation/Loop prevention
• DHCP Snooping/Port mirroring
DESCRIPTION:
• Reyee e-Lighten
• Managed Layer 2 PON switch
• 8 RJ45 10/100/1000 Mbps ports + 1 SC 1Gbps optical uplink port
• 8 PoE/PoE+ ports (ports 1~8) )
• Supports total PoE power of up to 120W across all ports
• Compatible with IEEE802.3af/at PoE
• Compatible with the Reyee PON solution
• Access device
• Up to 100 clients
• DC power supply (adapter included)
• Free management via Ruijie Cloud
• Rack, desktop, and wall mounting
SPECIFICATIONS:
Interface
8 RJ45 10/100/1000 Mbps ports
1 SC 1G optical port (PON uplink connecting to an optical splitter or an e-Lighten Core device)
Port speeds
8x 10/100/1000 Mbps and 1x SC PON 1G
Flash memory
8 MB
PoE power supply
8 PoE+ 802.3af/at ports, up to 30W per port
Up to 120W total power
PON features
Static/dynamic bandwidth assignment for ONUs (SBA/DBA)
Rate limit for unknown unicast traffic
Disable MAC switching for ONU
Automatic ONU connection to the OLT
Bidirectional Optical Subassembly (BOSA) receive sensitivity
From -8 dB to -28 dB
Bidirectional Optical Subassembly (BOSA) transmit power
From 0 dB to 3 dB
Digital Diagnostic Monitoring (DDM)
Temperature/Voltage/Current status/Rx power/Tx power
Maximum bandwidth per ONU 1G
Uplink >=900 Mbps (minimum 10 Mbps)
Downlink 997 Mbps
Data transfer rate up to
18 Gbps
Forwarding rate
13.39 Mpps
MAC table
8K
VLAN
Supports up to 16 VLANs
Network protocols and technologies
Port mirroring
Per-port rate limiting
CPU protection policy
DHCP Snooping
Loop prevention
Management protocols
Web/Cloud/APP
Surge protection
6 kV on the ports, 4 kV on the power supply
Power supply
DC adapter (included)
Power consumption
? 130 W
Operating temperature
0° C - 45° C
Dimensions
108 (W) x 28 (D) x 202 (H) mm
Weight
1.29 kg (with packaging)
CONTENTS:
• Managed L2 switch
• DC adapter
• User instructions
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF sheet
Reyee RG-NBF Series Switches ReyeeOS 2.290 - Configuration Guide
Reyee Series RG-NBF Implementation Cookbook
24-month warranty
