Shipping
Shipping in 5-10 business days
Description

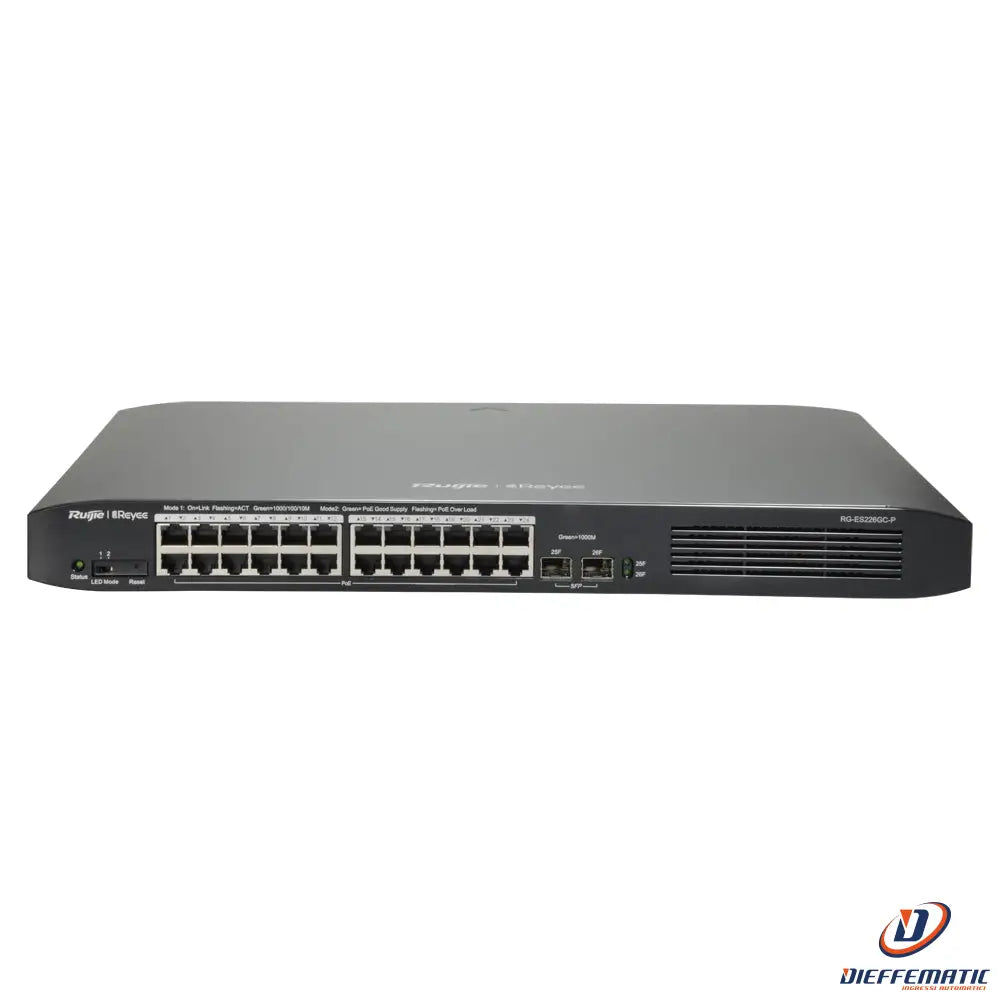

Cloud-Managed PoE Switch
Model RG-ES226GC-P
SKU: RG-ES226GC-P
• Reyee Cloud-Managed PoE Switch
• 24 PoE 802.3af/at ports + 2 SFP
• 24 RJ45 10/100/1000Mbps + 2 SFP 10/100/1000
• 30W per 802.3af/at port / Maximum 370W
• VLAN/Port Isolation/Loop Detection
• Port speed limiting
DESCRIPTION:
• Reyee
• Managed switch
• 24 RJ45 10/100/1000 Mbps ports + 2 Gigabit SFP ports
• 24 PoE/PoE+ ports (ports 1~24) )
• Supports up to 370W total PoE power across all ports
• Compatible with PoE IEEE802.3af/at
SPECIFICATIONS:
Brand
Reyee
Interface
24 RJ45 10/100/1000 Mbps ports + 2 SFP uplinks
RJ45 port speed
24 x 10/100/1000Mbps
PoE power
24 PoE+ 802.3af/at ports, up to 30W per port
Up to 370W total power
Extended PoE
Up to 250 metres, configurable on all ports
Technologies and protocols
Loop Detection
Up to 16 VLANs
Port Isolation
DHCP Snooping
Management protocols
Web/Cloud/APP
Installation
Rack mounting
Power supply
100~240 V with external adapter
Operating temperature
0° C ~ 40° C
Dimensions
289 (W) x 43.6 (D) x 440 (H) mm
CONTENTS:
• Switch
• AC cable
• 19" rack mount brackets
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Reyee RG-ES200 Series Switches Hardware Installation and Reference Guide
Reyee RG-ES200 Series Switches Web-Based Configuration Guide
24-month warranty
