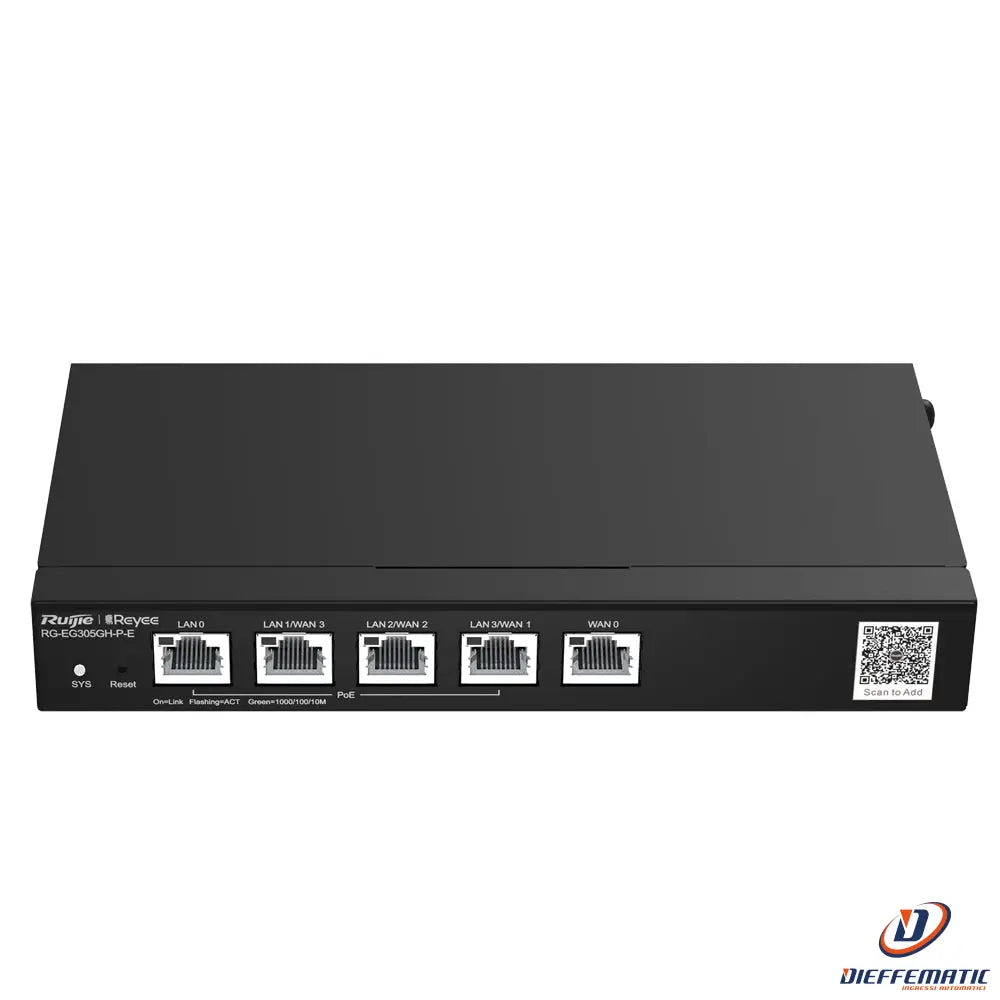

Reyee RG-EG305GH-P-E Cloud Controller PoE Router

Cloud PoE Controller Router

Model RG-EG305GH-P-E

SKU: RG-EG305GH-P-E

• Reyee Cloud PoE Controller Router

• 4 PoE+ LAN ports + 1 WAN port

• 5 RJ45 10/100 /1000 Mbps ports

• Supports up to 4 WAN connections for failover or load balancing

• Up to 1500 Mbps bandwidth

• IPSec, L2TP, PPTP, OpenVPN VPN server


DESCRIPTION:

• Reyee

• PoE Controller Managed Router

• 5 RJ45 10/100/1000 Mbps ports

• 4 PoE+ ports

Total PoE power: 60 W

• Up to 4 ports can be used as WAN ports for failover and load balancing

• Up to 1500 Mbps bandwidth

• Up to 300 simultaneous clients

• Detection, configuration, organization and management of Ruijie devices

• Can control up to 150 devices (APs, NBS) + 128 ES switches

• Powerful, intuitive operation with Ruijie's free cloud service


SPECIFICATIONS:

Brand
Reyee

Interface
3 Gigabit LAN/WAN ports + 1 Gigabit WAN port + 1 Gigabit LAN port

RAM
512MB

Flash
256MB

Maximum number of clients
300

Bandwidth
Up to 1500 Mbps

Technologies
Cloud Tunneling
Application control and blocking (library with over 100 applications)
Web filtering
Automatic Bandwidth Policy and Control (Smart Flow Control)
Real-Time Traffic Monitoring
Captive Portal: One Click / Voucher / Username + Password / SMS
Policy-Based Routing (PBR)
Redundancy and load balancing
Access Control Rules (ACL)
Attack prevention (Ping / Port Scanning / SYN Flooding / Spoofing)

Management in Router mode
Can control up to 150 devices (APs and NBS switches) + 128 ES switches

Management in AC mode
Can control up to 500 devices (APs and NBS switches) + 128 ES switches

Power supply
Up to 30 W per port (60 W for the entire device)

PoE specifications
4 PoE+ ports compliant with the IEEE 802.3at PoE+ / IEEE 802.3af PoE standard

Operating temperature
0° C ~ +40° C

Dimensions
202 (W) x 28 (H) x 108 (D) mm

Weight
500 g


CONTENTS:

• WAN router

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Ruijie Reyee RG-EG300GH-E Series Routers Hardware Installation and Reference Guide

Reyee RG-EG305GH-P-E Quick Installation Guide
