Description

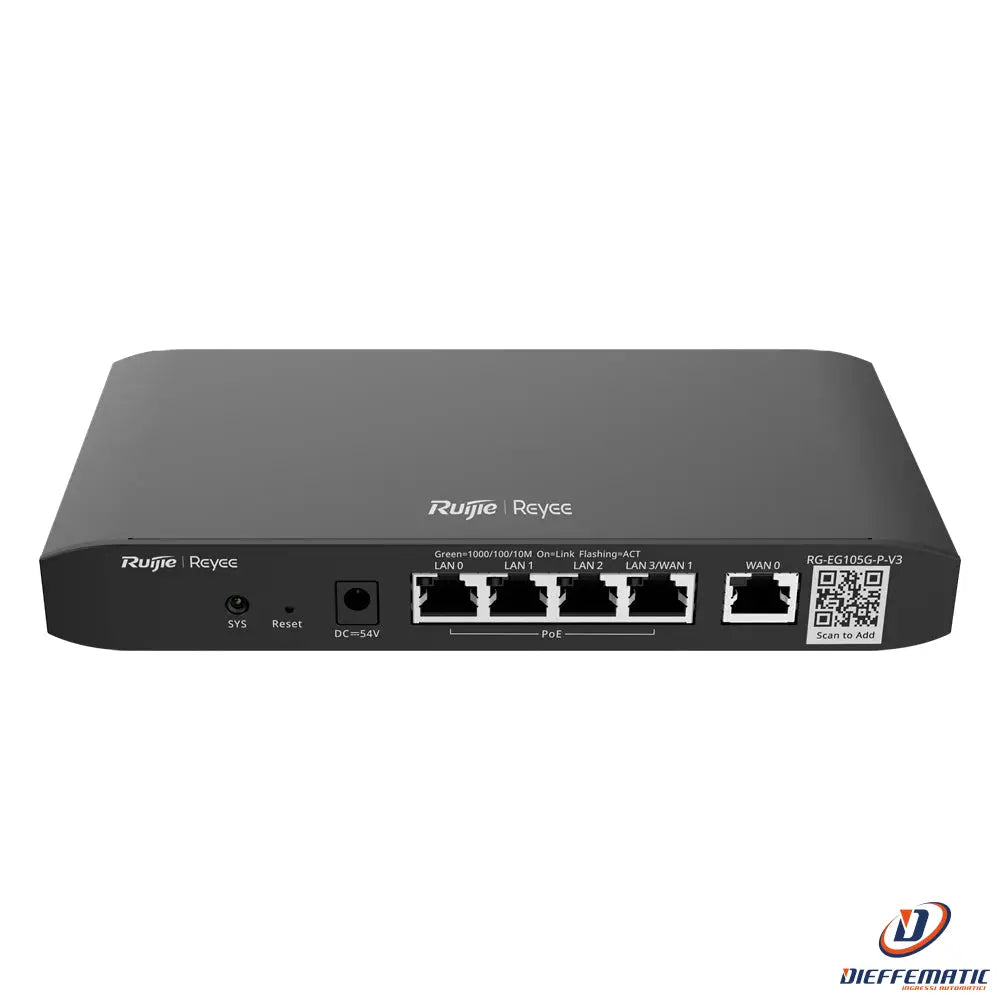

Cloud Controller PoE Router
Model RG-EG105G-P-V3
SKU: RG-EG105G-P-V3
• Reyee Cloud Controller PoE Router
• 4 PoE+ RJ45 GE ports + 2 RJ45 GE ports
• 5 RJ45 ports, 10/100/1000 Mbps
• Supports up to 2 WAN connections for failover or load balancing
• Up to 600 Mbps bandwidth
• IPSec, L2TP, PPTP, OpenVPN VPN server
DESCRIPTION:
• Reyee
• PoE Controller Managed Router
• 5 RJ45 ports, 10/100/1000 Mbps
• 4 PoE+ ports
• Total PoE power of 60W
• Up to 2 ports as WAN for failover and load balancing
• Up to 600Mbps bandwidth
• 1000Mbps bandwidth in Turbo mode
• Up to 100 simultaneous clients
• Discover, configure, organize, and manage Reyee devices
• Controls up to 300 devices (APs, NBS) + 128 ES switches
• Powerful, intuitive operation with Ruijie's free cloud service
SPECIFICATIONS:
Brand
Reyee
Interface
3 LAN ports 10/100/100 Mbps, 1 LAN/WAN port, 1 WAN port
CPU
2 cores, 880Mhz
RAM
128MB
Flash
32MB
Recommended number of clients
Up to 100
Bandwidth
Up to 600Mbps - 1000Mbps Turbo Mode
VLAN
Up to 16 VLANs
Technologies
Cloud Tunnelling
Application control and blocking (library of over 300 applications)
Web Filtering
Policy and Automatic Bandwidth Control (Smart Flow Control)
Real-Time Traffic Monitoring
Captive Portal: One Click / Voucher / Username + Password / SMS
Policy-Based Routing (PBR)
Redundancy and load balancing
Access Control Rules (ACL)
Attack prevention (Ping / Port Scanning / SYN Flooding / Spoofing)
Supports 802.1x
IPTV via VLAN and IGMP
VLAN Priority
SNMP v1/v2/v3
Dynamic Routing
VPN
VPN Server/Client: IPsec, L2TP, PPTP, OpenVPN
Number of IPsec VPN + L2TP/PPTP VPN tunnels
8
Number of OpenVPN tunnels
16
Router Mode Management
Can control up to 32 devices (APs and NBS switches) + 128 ES switches
AC Mode Management
Can control up to 300 devices (APs and NBS switches) + 128 ES switches
Power supply
Up to 30 W per port (110W for the entire device)
Maximum consumption
< 60W (with PoE equipment)
Power supply
DC 54V/1.1A (adapter included)
PoE features
3 PoE+ ports compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE
Operating temperature
0° C ~ +40° C
Installation
Desktop
Dimensions
206.5 (H) x 108.5 (L) x 28 (D) mm
Weight
0.406 kg (without packaging)
CONTENTS:
• WAN router
• User manual
• Adapter
24-month warranty
