Description

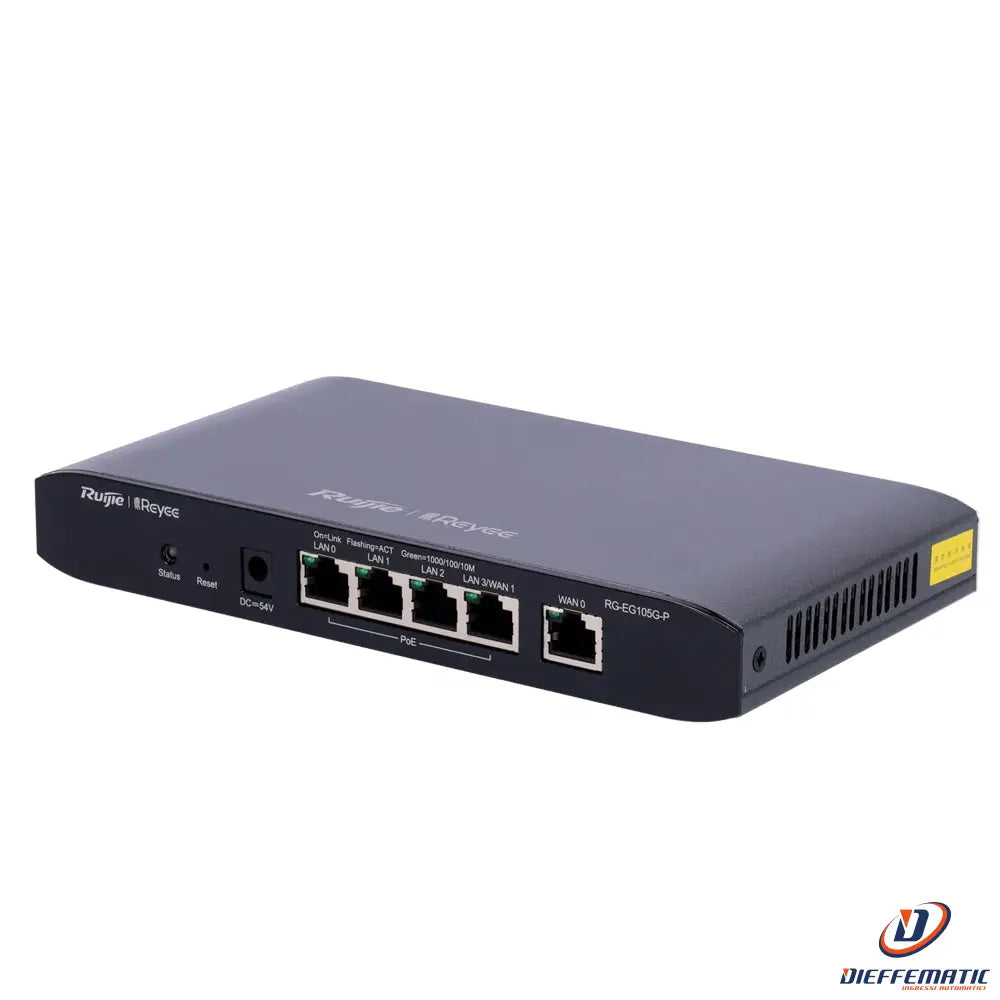

Cloud Controller Router
Model RG-EG105G-P
SKU: RG-EG105G-P
• Reyee Cloud Controller Router
• 5 RJ45 10/100/1000 Mbps ports
• 4 PoE+ 802.3af/at ports / Maximum 54W
• Supports up to 2 WANs for failover or load balancing
• Up to 500 Mbps bandwidth
• IPSec, L2TP, PPTP VPN server
DESCRIPTION:
• Reyee
• Managed PoE Controller Router
• 5 RJ45 10/100/1000 Mbps ports
• 4 PoE+ ports
• Total PoE power of 54W
• Up to 2 ports can be used as WAN ports for failover and load balancing - Up to 500 Mbps bandwidth
• Up to 100 simultaneous clients
• Detection, configuration, organization, and management of Ruijie devices
• Can control up to 32 devices (APs, NBS) + 128 ES switches
• Powerful, intuitive operation with Ruijie's free cloud service
SPECIFICATIONS:
Brand
Reyee
Interface
4 10/100/100 Mbps LAN ports, 1 WAN port
(LAN3 can be changed to a WAN port)
RAM
128MB
Flash
16MB
Maximum number of clients
100
Bandwidth
For 500 Mbps
Technologies
Cloud Tunnelling
Application control and blocking (library of over 100 applications)
Web filtering
Automatic Bandwidth Policy and Control (Smart Flow Control)
Real-Time Traffic Monitoring
Captive Portal: One Click / Voucher / Username + Password / SMS
Policy-based routing (PBR)
Redundancy and load balancing
Access control rules (ACL)
Attack prevention (Ping / Port Scan / SYN Flooding / Spoofing)
Management in Router mode
Can control up to 32 devices (APs and NBS switches) + 128 ES switches
Management in AC mode
Can control up to 300 devices (APs and NBS switches) + 128 ES switches
Power supply
Up to 30 W per port (54W for the entire device)
PoE specifications
4 PoE+ ports compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE
Operating temperature
0° C ~ +40° C
Dimensions
28 (W) x 206.5 (H) x108.5 (D) mm
Weight
840 g
CONTENTS:
• WAN router
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Reyee RG-EG Series Routers Web-Based Configuration Guide, Release EG_3.0(1)B11P62(V1.0)
24-month warranty
