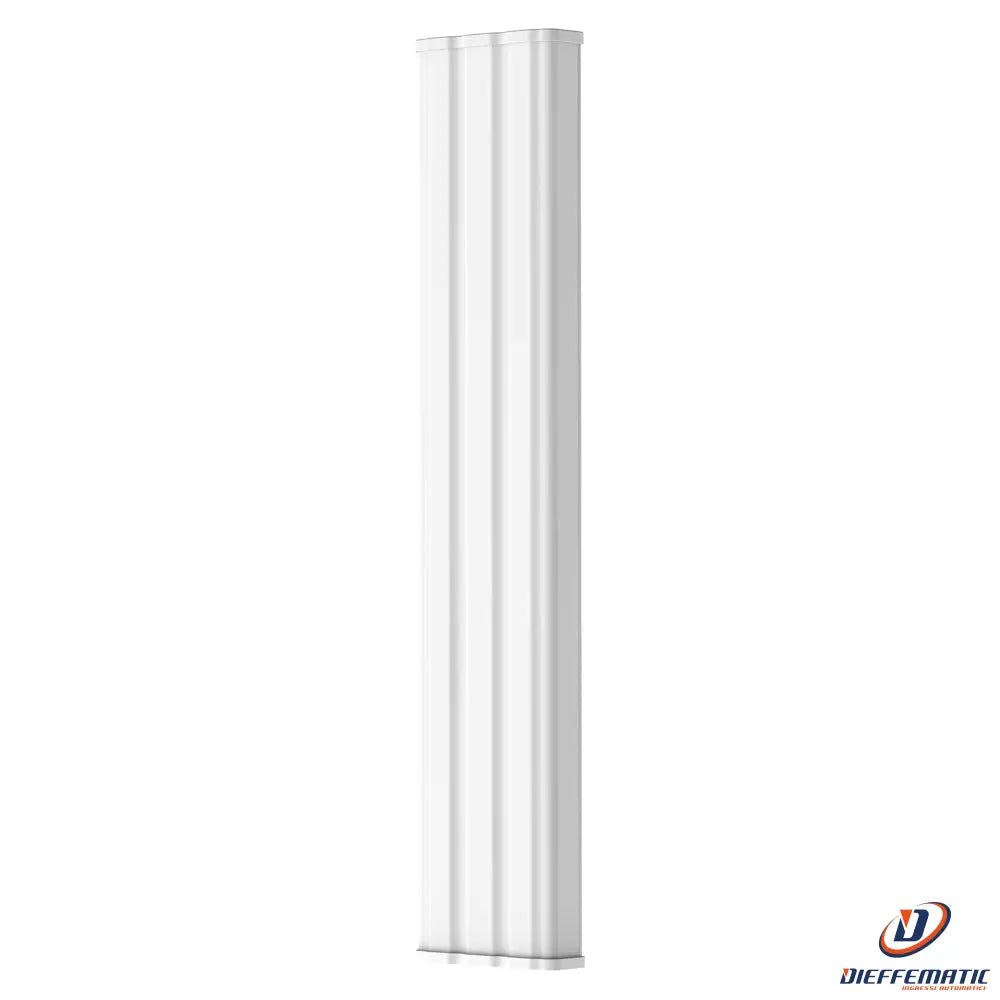

Reyee Rg-Ant20S-90 Passive Sector Antenna Compatible with Rg-Airmetro550G-B

Sector passive antenna compatible with RG-AirMetro550G-B

Model RG-ANT20S-90

SKU: RG-ANT20S-90

• Reyee

• Frequency: 5.15 GHz-5.85 GHz

• Passive antenna compatible with RG-AirMetro550G-B

• Operating range up to 10 km

• IP55, suitable for outdoor use

• 2x SMA male connectors


DESCRIPTION:

• Reyee

• Sector passive antenna compatible with RG-AirMetro550G-B for high-power 5 GHz wireless bridges

• IP55, suitable for outdoor use

• This device is used with RG-AirMetro550G-B and functions as the wireless bridge's passive antenna

• 2 SMA male ports

• Coverage: horizontal 90°, vertical 7° - no power supply required

• Connection range up to 10 km


SPECIFICATIONS:

Brand
Reyee

Operating mode
Passive antenna for RG-AirMetro550G-B (1 antenna per device)

SMA ports
2 x SMA male connectors for dipole

Frequencies
5.15GHz - 5.85 GHz

Distance
Up to 10 km (under ideal conditions)

Integrated antenna
20 dBi
Bidirectional

Power supply
No power supply required

IP rating
IP55

Dimensions
694 x 140 x 49mm

Weight
3.82 kg

Beamwidth with horizontal polarization
90° (6 dBi)

Beamwidth with vertical polarization
90° (6 dBi)

Elevation beamwidth
7° (6 dBi)


CONTENTS:

• 1 x RG-ANT20S-90

• 2 x SMA female-to-female adapter cables

• Pole-mounting accessory kit with metal brackets

• Instructions

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Reyee Series Wireless Bridge Implementation Cookbook (V1.4)

Reyee EST_AirMetro Series Wireless Bridges Web-based Configuration Guide, Release ReyeeOS 1.246.1924 (V1.0)

Reyee RG-AirMetro550G-B Wireless Bridge Hardware Installation and Reference Guide (V1.0)

24-month warranty
