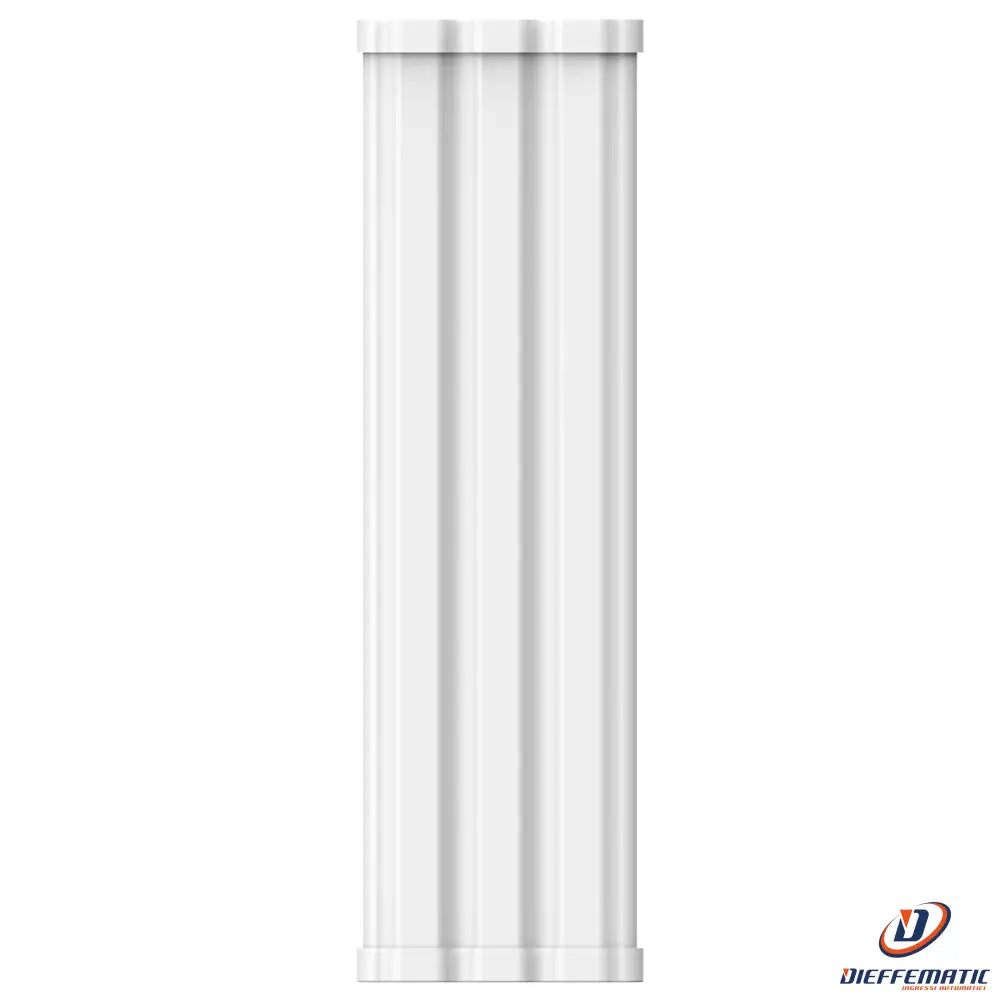

Reyee Rg-Ant16S-120 Passive Sector Antenna Compatible with Rg-Airmetro550G-B

Passive sector antenna compatible with RG-AirMetro550G-B

Model RG-ANT16S-120

SKU: RG-ANT16S-120

• Reyee

• Frequency 5.15 GHz 5.85 GHz

• Passive antenna compatible with RG-AirMetro550G-B

• Operating distance up to 5 km

• IP55, suitable for outdoor use

• 2x SMA male connectors


DESCRIPTION:

• Reyee

• Passive sector antenna compatible with RG-AirMetro550G-B for high-power 5 GHz wireless bridges

• P55, suitable for outdoor use

• This device is used together with the RG-AirMetro550G-B and serves as the wireless bridge's passive antenna

• 2 SMA male ports

• Coverage: 120° horizontal, 10° vertical - No power supply required

• Connection up to 5 km


SPECIFICATIONS:

Brand
Reyee

Operating mode
Passive antenna for RG-AirMetro550G-B (1 antenna type per device)

SMA ports
2 x SMA male connectors for dipole

Frequencies
5.15GHz - 5.85 GHz

Distance
Up to 5 km (under ideal conditions)

Integrated antenna
16 dBi
Bidirectional

Power supply
No power supply required

IP rating
IP55

Dimensions
361 x 110 x 48.5mm

Weight
2.5 kg

Beamwidth with horizontal polarization
118° (6 dBi)

Beamwidth with vertical polarization
120° (6 dBi)

Elevation beamwidth
10° (6dBi)


CONTENTS:

• 1 x RG-ANT16S-120

• 2 x SMA Female-to-Female adapter cables

• Accessory kit for pole mounting with metal brackets

• Instructions

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Reyee Series Wireless Bridge Implementation Cookbook (V1.4)

Reyee EST_AirMetro Series Wireless Bridges Web-based Configuration Guide, Release ReyeeOS 1.246.1924 (V1.0)

Reyee RG-AirMetro550G-B Wireless Bridge Hardware Installation and Reference Guide (V1.0)

24-month warranty
