Description

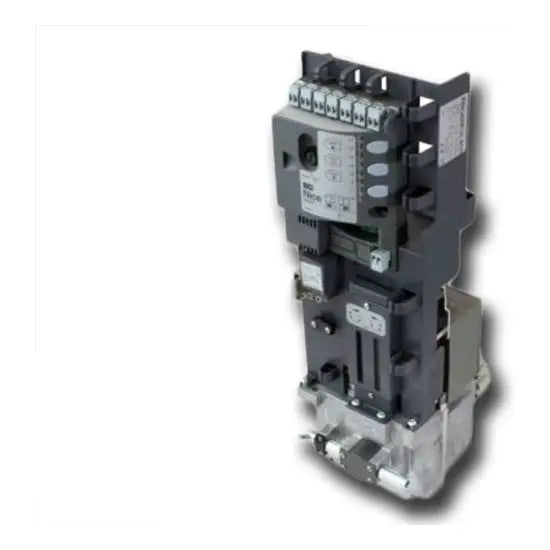

Concealed motor for 400 kg sliding gates with Nice control unit
Model NKSL400
Concealed motor for sliding gates weighing up to 400 kg, with a leaf length of up to 6 m
Non-reversible, 24 Vdc, with integrated control unit and absolute encoder, can be integrated into a column
The first concealed Nice motor for sliding gates weighing up to 400 kg, with a leaf length of up to 6 m. Motor with integrated control unit and absolute encoder, can be installed inside a suitably drilled, compact column. Its extremely compact size allows the motor to be housed in even very narrow columns, with a minimum internal dimension of 140X140 mm. Simple: thanks to the BlueBUS system, which allows connections using just two wires between the control unit and up to 7 pairs of MoonBus series photocells, as well as control, safety and signaling devices. Master/slave selection: automatically synchronizes 2 motors, enabling the automation of opposing double-leaf sliding gates. Intelligent: thanks to obstacle detection and automatic programming of operating times. Self-diagnostics with signaling via the flashing light. Safe: adjustable acceleration and deceleration at the start and end of each maneuver. Simple and precise limit switch adjustment: integrated absolute limit switch, quick setup with a single maneuver while the motor is released. Convenient: the control unit and PS124 backup batteries (optional) connect via a convenient guided plug-in connector. Flexible: the release mechanism can be installed on both sides of the column and/or outside (using KIO and KA1 accessories). Easy installation, even on existing columns.
TECHNICAL DATA:
- Power supply: 230V 50/60Hz
- Current draw: 1.1A
- Power: 250W
- Speed: 0.34 m/s
- Force: 400N
- Duty cycle: 35 cycles/hour
- Protection rating: IP44
- Operating temperature: -20 ÷ +50 °C
- Dimensions: 131 x 135 x 405 mm
- Weight: 6.5 kg
CLICK THE LINK FOR THE MANUAL:
INSTRUCTION MANUAL
24-month warranty
