Description

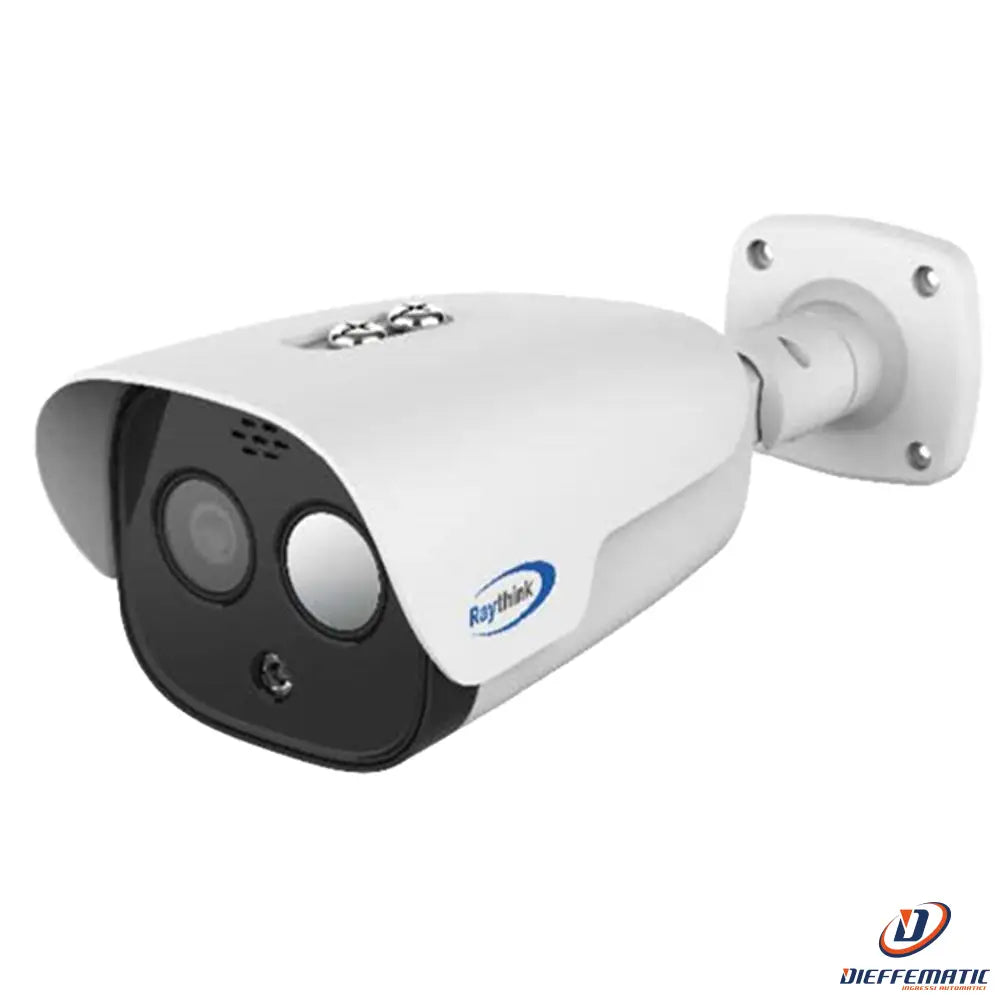

FC2 series IP thermal camera
Model RP-FC225T-010
SKU: RP-FC225T-010
• Raythink FC2 series IP thermal camera
• 256x192 12µm VOx FPA thermal sensor | 10 mm lens
• 1/2.8" CMOS visible-light sensor | 5 MP | 12 mm lens
• Thermal sensitivity ≤40mK
• Temperature measurement range -20°C~550°/±2°C or ±2%
• Early fire and intrusion detection
DESCRIPTION:
• Raythink
• Bi-spectrum IP thermal bullet camera
• 256x192 uncooled VOx FPA thermal sensor
• 12µm pixel size
• 10 mm lens
• Temperature measurement range -20°C~550°C (±2°C or ±2%)
• Thermal sensitivity ≤40mK
• 2560x1920 1/2.8" Progressive Scan CMOS visible-light sensor
• 12 mm lens
• H.265/H.264
• RJ-45 10/100 BaseT
• RS485 and Pelco protocol
• DC 12V±25% / PoE IEEE802.3af
• 2D/3D DNR
• Alarms
• Audio
• Early fire and intrusion detection
• MicroSD card slot up to 256 GB
• WEB, VMS and NVR interface
• ONVIF compatible
• IP66 waterproof
SPECIFICATIONS:
Brand
Raythink
Range
FC2
Thermal sensor
Uncooled VOx FPA
Thermal sensor resolution
256 x 192
Pixel pitch
12µm
Thermal lens
10 mm
Thermal sensitivity
≤40mK
Thermal measurement range
-20°C~150°C, 0°C~550°C / ±2°C or ±2%
Spectral range
LWIR 8~14µm
Thermal field of view
17° (H) x 11° (V)
Visible-light sensor
1/2.8" Progressive Scan CMOS
Visible-light sensor resolution
2560 x 1920 (5 MP)
Visible-light lens
12 mm
Visible-light field of view
25° (H) x 18° (V)
Infrared illuminator
30 m max.
Bi-spectrum Imaging Parameters
Fusion
Main Stream Frame Rate
Visible: 25fps (2560x1920, 2560x1440, 1920x1080)
Thermal: 25fps (1280x960, 1024x768)
Sub-stream rate
Visible: 25fps (1920x1080, 1280x720, 704x576, 352x288)
Thermal: 25fps (640x480, 320x288)
Compression
H.265 / H.264
DRI
Person: 417m (D), 104m (R), 52m (I)
Vehicle: 1278m (D), 319m (R), 160m (I)
Smart analysis ranges
Person: 78m
Vehicle: 240m
Temperature measurement (2x2m object): 278m
Temperature measurement (1x1m object): 139m
Fire detection (2x2m object): 1000m
Fire detection (1x1m object): 550m
VCA
Line crossing, intrusion detection, temperature measurement and fire detection
Temperature rules
Full screen, point, line and area, multiple rules simultaneously
Alarms
2 inputs / 1 output
Audio
1 input / 1 output
Audio compression formats
G.711a/G.711u/AAC/PCM
Internal storage
MicroSD card slot up to 256 GB
Network interface
Ethernet 10/100 BaseT
Communication
1 x RS-485 Pelco protocol
Remote access
Web browser, PC VMS software
Interoperability
ONVIF, API, SDK
Power supply
DC 12V, 6W max.
PoE IEEE802.3af
Operating temperature
-40°C~+70°C, <95% RH
Protection rating
IP66 waterproof
Dimensions
265mm x 99mm x 87mm
Weight
950g
CONTENTS:
Raythink FC2 Series Dual IP Thermal Camera
• Installation materials
• User instructions
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Raythink FC1 & FC2 Series Manual
Raythink VIS Patrol VMS User Manual
24-month warranty
