Description

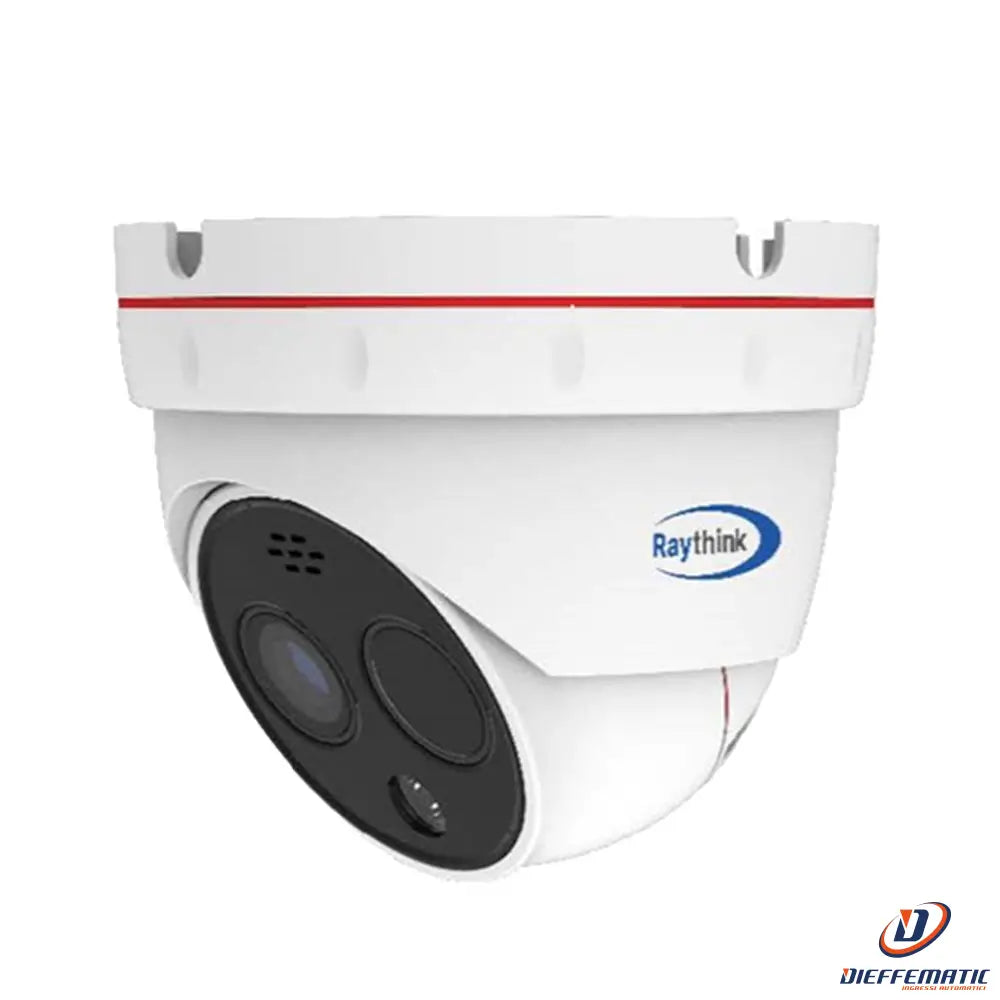

FC1 series IP thermal camera
Model RP-FC125T-007
SKU: RP-FC125T-007
• Raythink FC1 series IP thermal camera
• 256x192 12µm VOx FPA thermal sensor | 7mm lens
• 1/2.8" CMOS visible-light sensor | 5Mpx | 8mm lens
• Thermal sensitivity ≤40mK
• Temperature measurement range -20°C~550°/±2°C or ±2%
• Early fire and intrusion detection
DESCRIPTION:
• Raythink
• Bi-spectrum IP thermal turret camera
• 256x192 uncooled VOx FPA thermal sensor
• 12µm pixel size
• 7mm lens
• Temperature measurement range -20°C~550°C (±2°C or ±2%)
• Thermal sensitivity ≤40mK
• 2560x1920 1/2.8" Progressive Scan CMOS visible-light sensor
• 8mm lens
• H.265/H.264
• RJ-45 10/100 BaseT
• RS485 and Pelco protocol
• DC 12V±25% / PoE IEEE802.3af
• 2D/3D DNR
• Alarms
• Audio
• Early fire and intrusion detection
• MicroSD card slot supporting up to 256 GB
• Web, VMS and NVR interface
• ONVIF compatible
• IP66 waterproof
SPECIFICATIONS:
Brand
Raythink
Range
FC1
Thermal sensor
Uncooled VOx FPA
Thermal sensor resolution
256 x 192
Pixel pitch
12µm
Thermal lens
7mm
Thermal sensitivity
≤40mK
Thermal measurement range
-20°C~550°C / ±2°C or ±2%
Spectral range
LWIR 8~14µm
Thermal viewing angle
25° (H) x 18° (V)
Visible-light sensor
1/2.7" Progressive Scan CMOS
Visible-light sensor resolution
2560 x 1920 (5Mpx)
Visible-light lens
8mm
Visible-light viewing angle
38° (H) x 28° (V)
Infrared illuminator
30 m max.
Bi-Spectrum Imaging Parameters
Fusion
Main Stream Frame Rate
Visible: 25fps (2592x1944, 2560x1440, 1920x1080)
Thermal: 25fps (1280x960, 1024x768)
Sub-stream rate
Visible: 25fps (704x576, 640x480, 352x288)
Thermal: 25fps (640x480, 256x192)
Compression
H.265 / H.264
DRI
Person: 292m (D), 73m (R), 36m (I)
Vehicle: 894m (D), 224m (R), 112m (I)
Smart analysis ranges
Person: 55m
Vehicle: 168m
Temperature measurement (2x2m object): 194m
Temperature measurement (1x1m object): 97m
Fire detection (2x2m object): 778m
Fire detection (1x1m object): 389m
VCA
Line crossing, intrusion detection, temperature measurement and fire detection
Temperature rules
Full frame, point, line and area, multiple rules simultaneously
Alarms
1 input / 1 relay
Audio
1 input / 1 output
Audio compression formats
G.711a/G.711u/AAC/PCM
Internal storage
MicroSD card slot, up to 256 GB
Network interface
Ethernet 10/100 BaseT
Communication
1 x RS-485 Pelco protocol
Remote access
Web browser, PC VMS software
Interoperability
ONVIF, API, SDK
Power supply
DC 12V, 10W max.
PoE IEEE802.3af
Operating temperature
-40°C~+70°C, <95% RH
Protection rating
IP66 waterproof
Dimensions
Ø129mm x 96mm
Weight
800g
CONTENTS:
Raythink FC1 Series Dual IP Thermal Camera
• Installation materials
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Raythink FC1 & FC2 series manual
Raythink VIS Patrol VMS user manual
24-month warranty
