Description

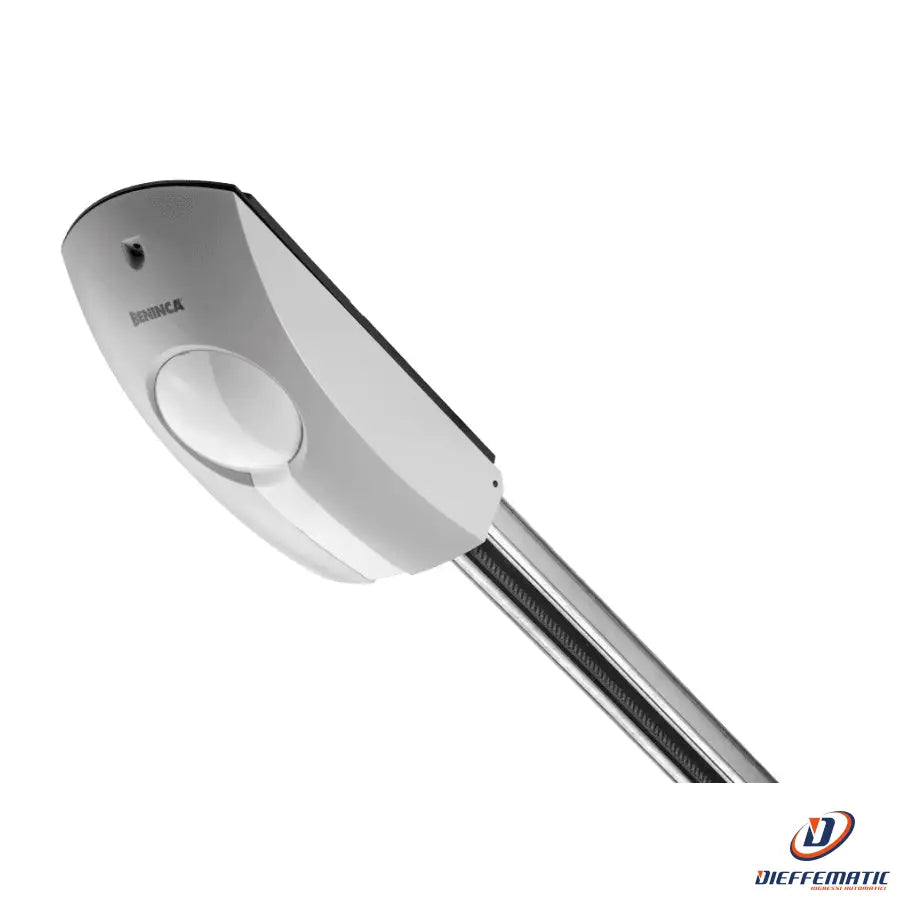

24 Vdc gearmotor for intensive use with built-in control unit and encoder
Mod. JM.4 SE
SKU: 959007250
Condominium use
Sectional doors
24 Vdc
Up to 22 m²
Integrated device that ensures maximum precision during automation maneuvers
Intelligent power control system that acquires dynamic data by calculating torque precisely. STC System identifies any critical points and adjusts the torque according to measured performance and actual requirements
64 transmitters can be stored in the receiver
Standby power consumption compliant with European Regulation (EU) 2023/826
24 Vdc
intensive use
24 Vdc gearmotor for intensive use with built-in control unit and encoder
Standby power consumption compliant with European Regulation (EU) 2023/826
Travel adjustable using one mechanical stop included with belt rails and two with chain rails
Anti-crushing system with amperometric detection
Advanced electronics with display and LED courtesy light
The encoder device ensures maximum safety and precision when moving the door
STC System device that manages torque delivery according to the door position, ensuring maximum safety
Quick-coupling system for attaching the connecting arm of the carriage to the door
Rail not included
TECHNICAL DATA:
Use: condominium
Mains power supply: 230 Vac (50-60Hz)
Motor power supply: 24 Vdc
Maximum current draw: 1.5 A
Traction/pushing force: 1200 N
Opening speed: 4.5 ÷ 8.9 m/min
Cycle of
24-month warranty
