Description

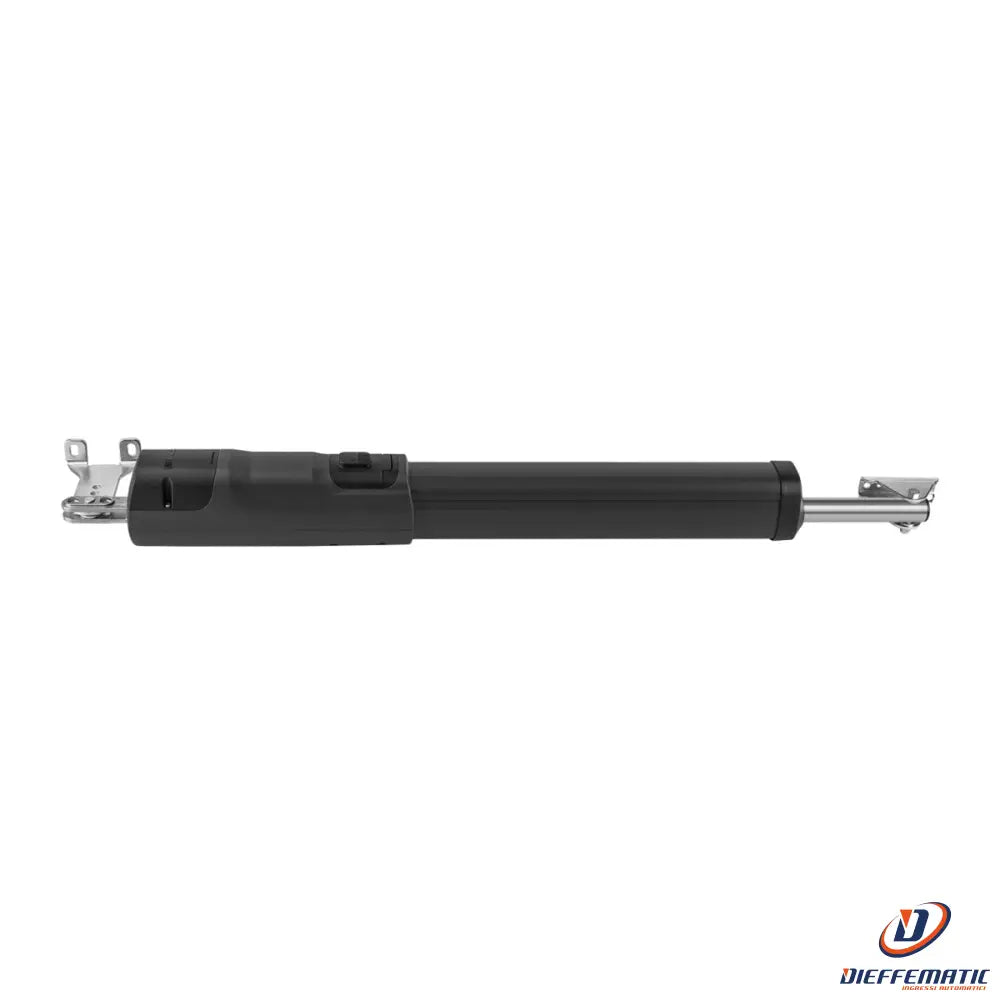

Irreversible 24 Vdc electromechanical gearmotor for intensive use, equipped with an encoder
Mod. TOM4024E
SKU: 959102889
24 Vdc
Up to 4,0 m per leaf
Integrated device that ensures maximum precision during automation operating cycles
Integrated device that ensures maximum precision during automation operating cycles
Ready for control unit management via the BeUP app and the pro.UP accessory, which replicates the control unit menu and lets you adjust parameters and operating logic, read error messages and update the firmware. Remote diagnostics are available, as well as the ability to check the gate status and send commands
24 Vdc
intensive use
Irreversible 24 Vdc electromechanical gearmotor for intensive use, equipped with an encoder
The TRUST24 control unit ensures standby power consumption of < 0,8 W
The encoder device ensures maximum safety and precision when operating the gate
Anti-crushing system with current sensing
Battery operation available
Reliable, innovative gearmotor featuring two adjustable mechanical stops for opening and closing, accessible from above and positioned beneath the metal cover over the rod
Ideal for automating all types of swing gates, thanks to its compact dimensions (only 96 mm wide) and screw-on mounting brackets
The 45° cable entry angle keeps the ground clearance to a minimum
The rear and front brackets, aligned on the same axis, allow better load distribution, optimizing the actuator's service life
The worm screw, protected by a scraper ring, and the stainless steel rod make it suitable for dusty, sandy or harsh weather environments
Easy-access top release
TECHNICAL DATA:
Motor power supply: 24 Vdc
Maximum current draw: 5,5 A
Maximum thrust: 1500 N
Opening time: 15"
Maximum stroke: 400 mm
Duty cycle: intensive use
Protection rating: IP44
Control unit included
24-month warranty
