Single-Leaf Hydraulic Gate Kit 230V for Large Gates - HYDRA 390
Complete Dieffematic HYDRA 390 kit for a single swing gate leaf up to 6m. Includes 3500N hydraulic ram with 390mm stroke, EKOS230M2 control unit and professional accessories.
The definitive Dieffematic solution for oversized or heavy single-leaf swing gates (up to 6 metres long). The kit includes a long-stroke VDS HYDRA 390 hydraulic actuator delivering 3500N of force and sophisticated control electronics
Specially designed to automate very long or panelled single leaves, this kit is ideal both for large residential properties and industrial applications.
Benefits for the user: Exceptional mechanical resistance to stress, smooth movement provided by the integrated hydraulic pump, and intelligent management of deceleration at the end of travel via the control board.
Problem? Solution: Solves the challenge of automating large single leaves exposed to strong gusts of wind or with a heavy structure, where standard electromechanical motors would fail or wear out quickly.
KEY BENEFITS
Ideal for single leaves from 2.3 to 6 metres long
Unrivalled hydraulic thrust (3500N)
Adjustable anti-crushing safety via the internal hydraulic circuit
Intensive-use frequency (60 cycles per hour)
RECOMMENDED APPLICATIONS
Industrial single-leaf driveway gates
Large commercial and business entrances
Private properties with a single swing leaf up to 6 metres
TECHNICAL SPECIFICATIONS
Brand: VDS / Dieffematic
Actuator model: HYDRA 390 (1 unit)
Control unit included: Mod. EKOS-M2 230v
System power supply: 230V AC +/- 10%
Motor power consumption: 250 W
Current consumption: 1.2 A
Usable rod stroke: 390 mm
Linear rod speed: 1.5 cm/s
Operating cycle frequency: 60 cycles/hour
Operating temperature: from -20°C to +70°C
Maximum thrust force: 3500 N
IP rating: IP 55
SPECIFIC DETAILS
Maximum weight/length: Single leaves up to 6 metres.
Deceleration: Programmable through self-learning via the control unit.
Actuator locking status: The actuator is factory-set as irreversible and locked, ensuring a secure closure. In the event of a power failure, the operator can be manually unlocked with a key at the central screw, following the clearly illustrated procedure, to make it reversible.

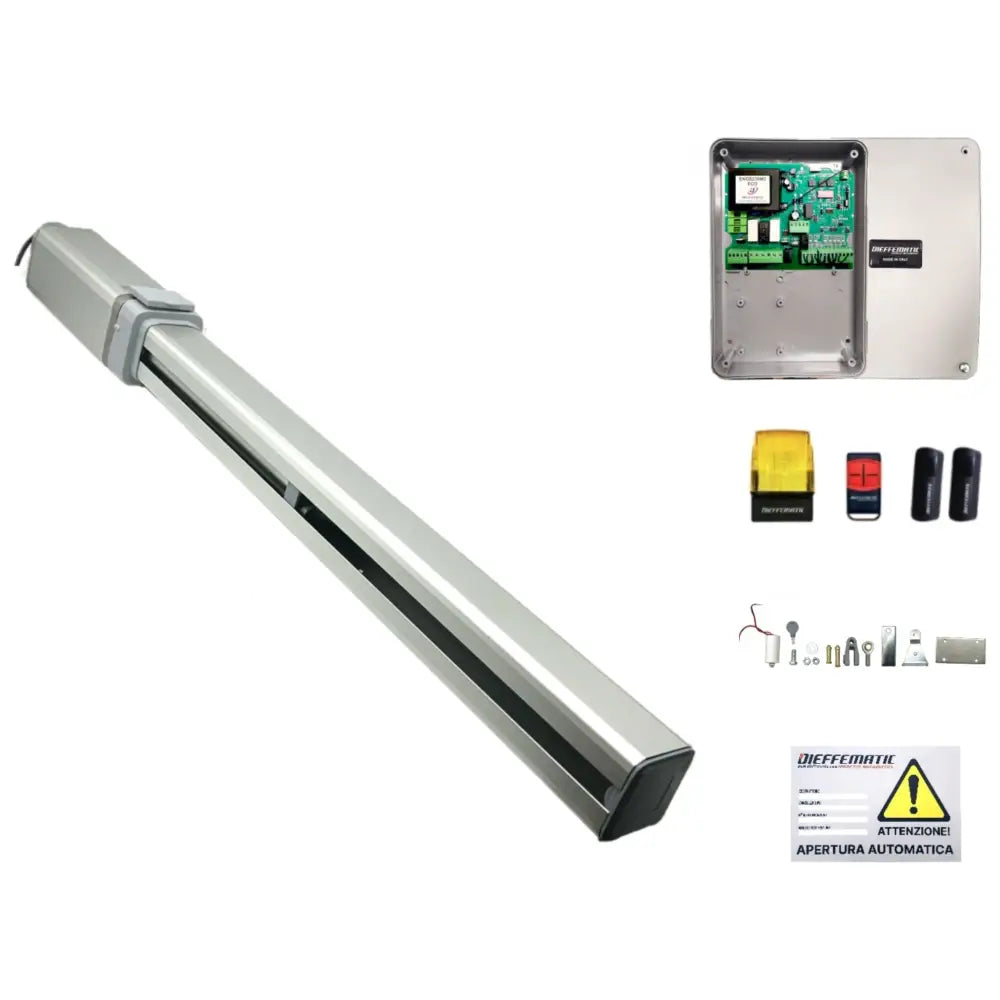

PACKAGE CONTENTS
1x 230V VDS HYDRA linear hydraulic actuator, 390 stroke
1x 230v swing gate control unit with 433.92 MHz receiver, Mod. EKOS-M2 230v
1x EQUO PLUS 4-channel rolling-code remote control
1x Pair of wall-mounted photocells
1x MULTITENSIONE universal LED flashing light 12/24/230 V
1x MONITORE warning sign
1x Installation accessory set (long front and rear brackets)
1x INSTALLATION INSTRUCTIONS
TECHNICAL DOCUMENTATION
MECHANICAL INSTALLATION
ELECTRONIC INSTALLATION
GUIDE TO CONVERTING FROM IRREVERSIBLE TO REVERSIBLE
24-month warranty
