Single-Leaf Hydraulic Gate Kit 230V - Dieffematic HYDRA 270
Complete Dieffematic HYDRA 270 kit for single-leaf swing gates up to 5 m. Includes a 230V hydraulic piston, EKOS230M2 control unit and accessories.
Dieffematic automation kit specially configured for single-leaf swing gates up to 5 metres long. Includes 1 VDS HYDRA 270 high-thrust linear hydraulic actuator and the advanced EKOS230M2 control unit for reliable operation.
This single-leaf solution is designed for homeowners and installers who need to automate a single swing-gate opening, while delivering the smooth operation characteristic of professional hydraulic systems.
Benefits for the user: High-level anti-crushing safety, adjustable directly via the physical valves on the piston. Smooth movement and precise electronic slowdowns help preserve the gate structure over time.
Problem? Solution: Eliminates the need to operate single-leaf gates manually, solving the problem of installations in confined spaces or exposed to strong winds.
KEY BENEFITS
Configuration optimised for a single leaf
Powerful, adjustable 2500N thrust
Pedestrian function included as standard on the control unit
High thermal resistance and protection against weather conditions
RECOMMENDED APPLICATIONS
Single-leaf residential gates
Combined pedestrian/vehicle access
Private entrances up to 5 metres
TECHNICAL SPECIFICATIONS
Actuator model: HYDRA 270 (1 unit)
Control unit included: Mod. EKOS-M2 230v
Power supply: 230V AC +/- 10%
Motor power consumption: 230 W
Rod stroke: 270 mm
Rod linear speed: 1 cm/s
Cycles/hour per operator: 40
Operating temperature: -20°C to +70°C
Maximum thrust force: 2500 N
Protection rating: IP 55
Max. leaf length: 5 m
SPECIFIC DETAILS
Configuration: Single leaf.
Operating logic: Single-leaf programming with or without slowdown via the P2 button (PROG TIME).
Actuator locking status: The actuator is irreversible and locked, preventing the leaf from being forced open manually. It can be made reversible at any time by following the procedure shown and using the supplied emergency release key.

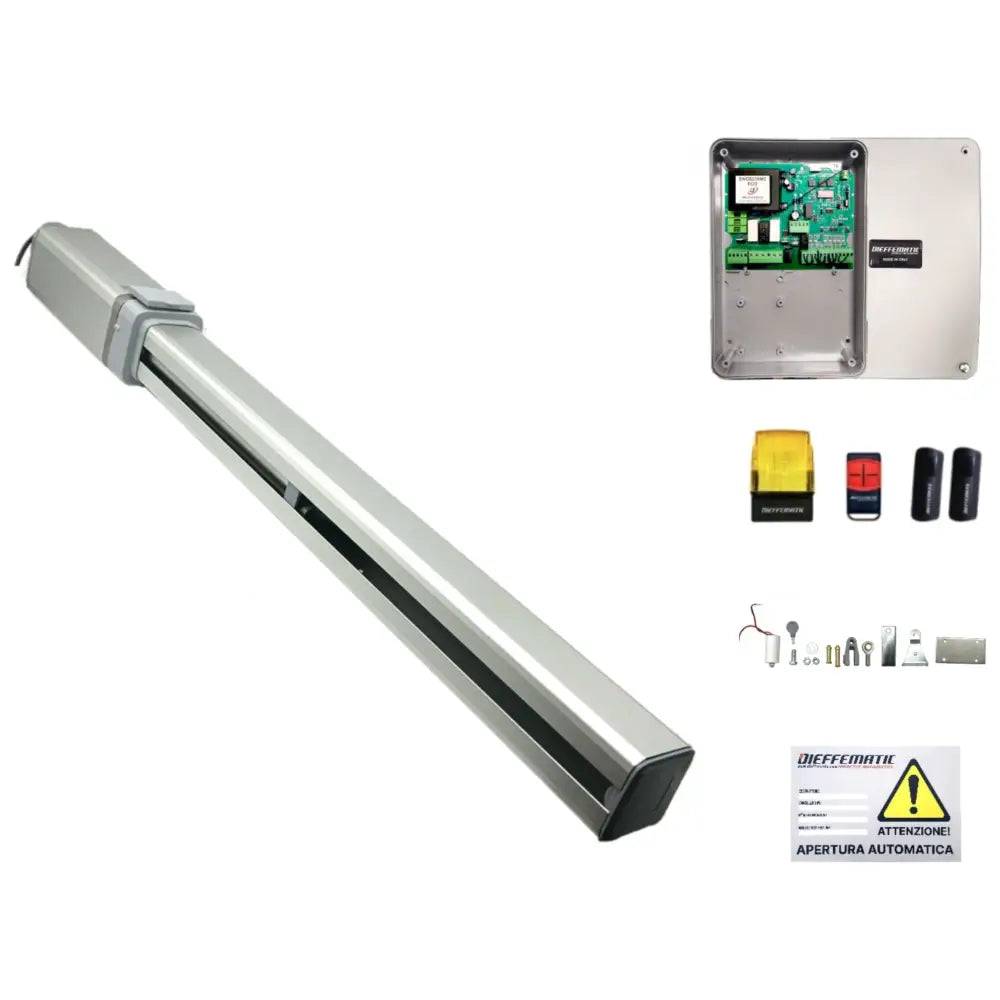

PACKAGE CONTENTS
1x 230V VDS HYDRA linear hydraulic actuator, 270 stroke
1x 230v swing-gate control unit with 433.92 MHz receiver, Mod. EKOS-M2 230v
1x EQUO PLUS 4-channel rolling-code remote control
1x Pair of wall-mounted photocells
1x MULTIVOLTAGE universal LED flashing light, 12/24/230 V
1x MONITORE warning sign
1x Installation accessory set (front and rear brackets)
1x INSTALLATION INSTRUCTIONS
TECHNICAL DOCUMENTATION
MECHANICAL INSTALLATION
ELECTRONIC INSTALLATION
IRREVERSIBLE/REVERSIBLE CONVERSION GUIDE
24-month warranty
