Description

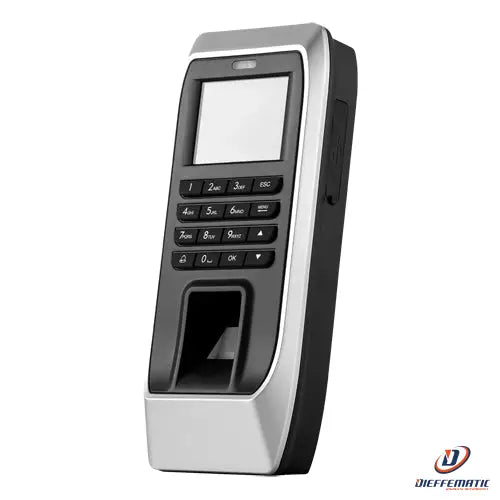

Standalone access control
Mod. HY-AC672
SKU: HY-AC672
• Hysoon standalone access control
• Fingerprints and keypad
• 2,000 registrations / 160,000 logs
• TCP/IP, RS485, and Wiegand 26
• Integrated controller
• Free eTime software
DESCRIPTION:
• Hysoon
• Standalone biometric access reader
Fingerprint, password and/or combination identification
• Keypad and 2.4" color TFT screen
• Capacity for 2,000 fingerprints/cards, 160,000 logs
• TCP/IP, RS485 and Wiegand 26 communication
• Integrated controller (door sensor, button and 2x relays)
• Free eTime management software with access control module included
SPECIFICATIONS:
Brand
Hysoon
CPU
320 MHz
Activation sensor
Keypad or biometric reader keystrokes
Keypad
Mechanical keypad
Capacity
Up to 2,000 users
Logs
Up to 160,000 logs
Verification time
< 0.5 sec.
FAR (False Acceptance Rate)
< 0.0001%
FRR (False Rejection Rate)
< 1%
Identification modes
Fingerprints and/or password
Screen
2.4" TFT Color 320x240 pixels
Proximity card
Not available
PC communication
TCP/IP, USB, RS485
Inputs
Wiegand input, door sensor, exit button
Outputs
Wiegand, NO/NC relay output, doorbell
Temperature
0° C ~ +45° C
Power supply
DC 12 V, 2A max.
Dimensions
44 (W) x 80 (H) x 190 (D) mm
Weight
290 g
CONTENTS:
• Hysoon standalone reader
• Mounting materials
• User instructions
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
User Manual for Access Control device HY-AC672
24-month warranty
