Description

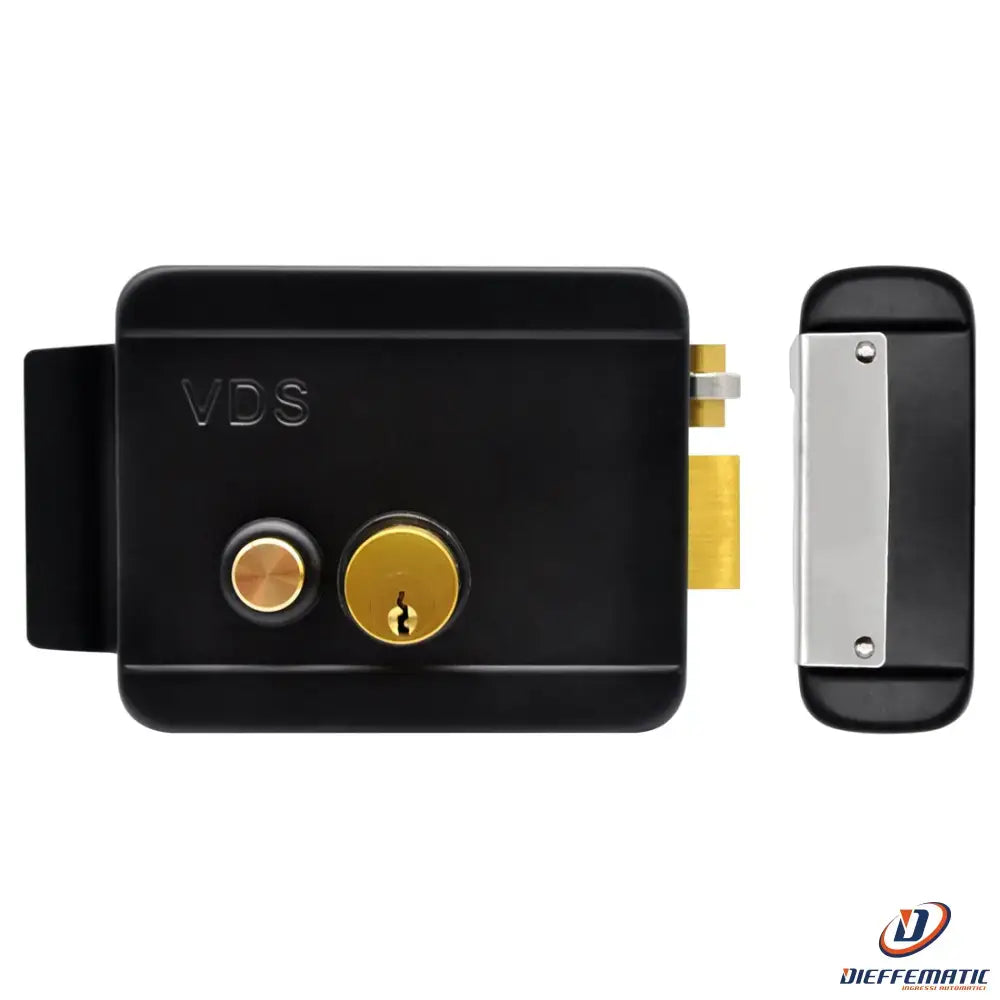

ElectriсеCentral lock with 12V button and three keys included
MOD. 167/E
A professional solution designed to provide a high level of security and protection for exterior doors, gates and pedestrian gates.
The key feature of this model is its flexible installation: thanks to the latch reversal procedure, the lock can easily be configured for both inward opening and outward opening gates. This feature allows the model (right-hand) to be perfectly adapted to the direction in which the structure swings during installation.
The door can be conveniently opened using an electric pulse (e.g. from an intercom) or by pressing the integrated button, which can be enabled or disabled at any time by turning the key.
Applications
Access control systems: Ideal for integration with intercom and door entry systems.
Applications: Ideal for both residential and industrial installations.
Compatibility: Suitable for hinged doors, pedestrian gates and structures with hinges, up to a maximum weight of 300 kg.
Technical Specifications
Power supply: 9-12Vdc (optimal operation with a voltage of at least 8V directly at the terminal block).
Electric pulse duration: Maximum 8 seconds to preserve coil integrity.
Configuration: Suitable for right-hand mounting, reversible for inward / outward opening.
Adjustment: Closing spring tension adjustable using an internal hex nut, according to the gate weight.
Wiring: Requires cables with a cross-section of at least 1 mm².
Housing dimensions: 130 x 106 mm.
Cylinder diameter: Ø 25 mm.
24-month warranty
