Description

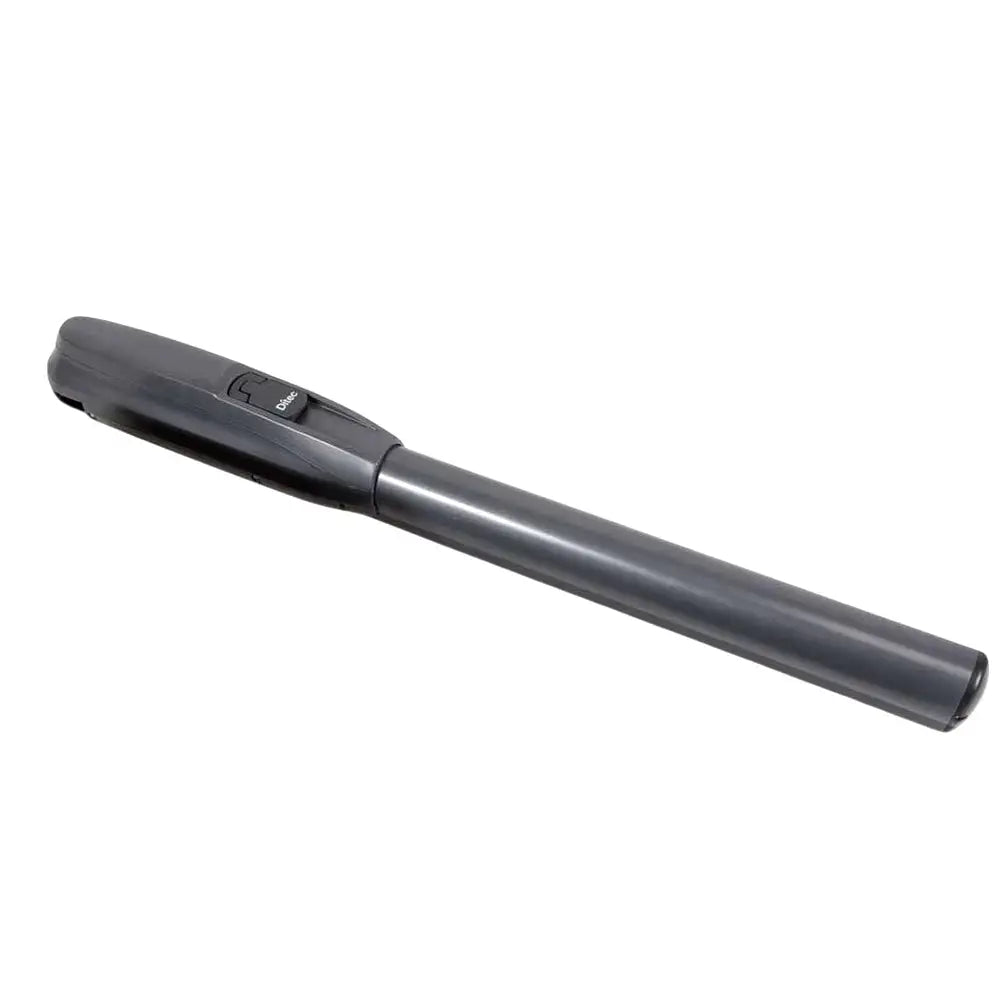

230 V AC actuator for a swing gate leaf up to 5 m
SKU: PWR50AC
Reversible/irreversible electromechanical actuator for intensive use, 230 V AC motor, for a leaf up to 5 m
TECHNICAL SPECIFICATIONS
Electromechanical actuator: irreversible / reversible, for a leaf up to 5 m
Travel control: mechanical stop (during opening)
Maximum load: 800 kg x 1.75 m / 280 kg x 5 m
Motor power supply: 230 V AC - 50 Hz
Maximum current: 1.1 A
Power consumption: 250 W
Thrust: 6000 N
Opening time: 32 s / 90°
Maximum stroke: 500 mm
Maximum actuator opening angle: 120°
Duty cycle: 30 consecutive cycles at 20°C
Duty class: very intensive, tested for up to 450,000 cycles
Manual release: key-operated
Operating temperature: -20°C ÷ +55°C (-35°C ÷ +55°C with NIO active)
Protection rating: IP44
Weight (kg): 10.5
Control panel: LCA70G
BARCODE: 06564
CLICK THE LINK FOR THE TECHNICAL MANUAL:
MANUFACTURER'S TECHNICAL MANUAL
24-month warranty
