Description

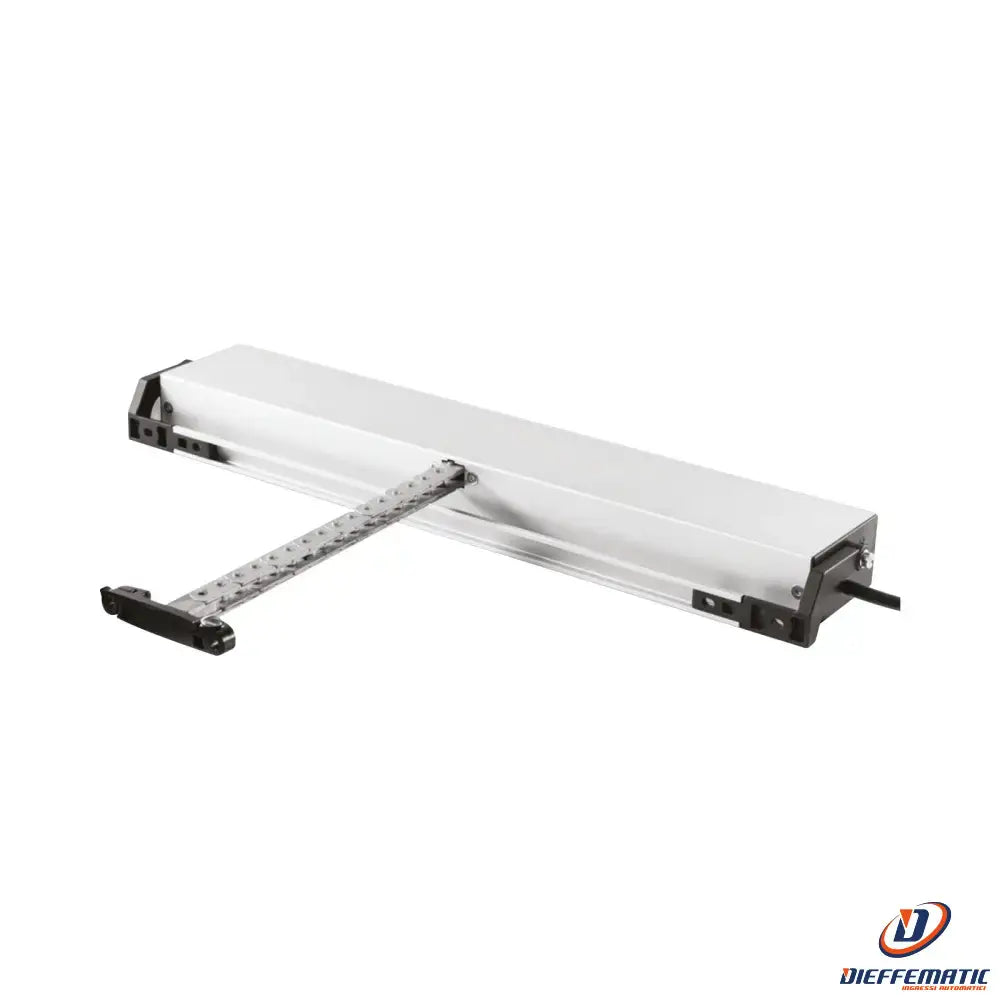

CHAIN ACTUATOR

Mod. MICRO EVO1 - 230V

SKU: 2713789

Silver colour
THRUST: 300 N
POWER: 25W
PROTECTION DEGREE: IP32
MINIMUM SPEED: 13 mm/s

Double link articulated chain linear electric actuator contained within a metal casing.
Equipped with an overload protection system and automatic adjustment of the closing limit switch.
It has 4 types of electronically selectable races.
Equipped with a synchronization system capable of coordinating the movement of the chain of multiple actuators (up to 4) without the need for any external control unit.
Complete with accessories for installation on top-hung or bottom-hung windows.
Possibility of adjusting the stroke via selector
Soft stop closing to preserve the window
Reduced height: 35 mm

FORCE: Max thrust 300N
VOLTAGE: 110-240V
POWER: 25W
STROKE: 100 - 200 - 300 - 400
OPENING/CLOSING LIMIT SWITCH: Electronic
PROTECTION DEGREE: IP32
MINIMUM SPEED: 13 min/s
WORKING TEMPERATURE: -10/+40° C
CERTIFICATIONS: CE - VDE

24 month warranty
