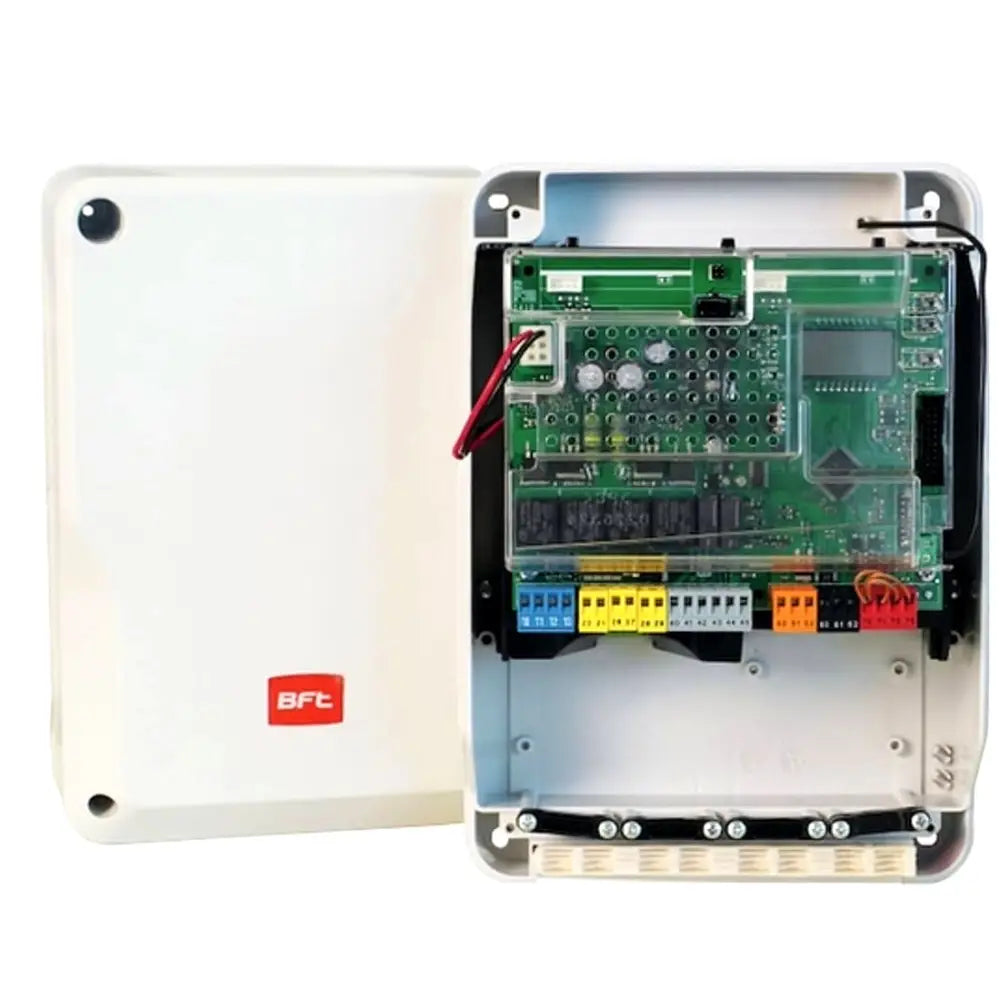

Bft THALIA BT A160 DUO 24V Control Board 2618163

24V Control Panel

Mod. THALIA BT A160 DUO

SKU: 2618163

Control panel for 1 or 2 24V operators for swing gates, for highly complex installations. Application: control panel for 1 or 2 24V operators for swing gates. Control board power supply: 230V single-phase. Operator power supply: 24Vdc 240W max per operator. Main features: removable terminal blocks with a new color-coding standard, simplified scenario-based programming with display and built-in receiver, anti-crushing protection based on the D-Track system, opening and closing slowdown, and electronic self-learning. Main functions: automatic closing, rapid closing, partial opening, hold-to-run operation, direct powered connection for electric lock and electromagnet, direct connection for 8K2 safety edge. Compatibility: LIBRA C MA, LIBRA C LX, LIBRA, LIBRA R, LIBRA MA R

Main features
• Modular: thanks to the additional modules, you can expand your installation offering to meet the needs of a wide range of customers. If required, the new smart board can provide more electrical power to control larger motors or motors operating under heavy-duty conditions
• Connectable: the dual connector lets you connect a gateway and keep it connected at all times, while using a second slot to make the most of the capabilities of the b-eba family boards
• Advanced: the U-LINK communication protocol has evolved and is now ready to communicate with the cloud and modern data communication technologies. It is much faster and more responsive, enables two-way data communication, and supports OTA technology, which allows firmware updates to be scheduled remotely
• Portable: the remote control memory capacity has been increased from 64 to 128 positions, but you can also choose the 2048-position module to manage installations with a large number of stored remote controls. The memory can be removed and inserted into a new control board without losing any remote controls or the list of recorded parameters and logic settings
• Spacious: the electronics enclosure is completely new. There is more room for maintenance, wiring is simpler and faster thanks to a new sealing system, the battery pack for emergency operation can be fitted inside the enclosure, and wall mounting has been redesigned and simplified
• 94% less energy consumption in standby mode, saving 69.82 kWh per year. Energy consumption of accessories connected to the board is not included.

Technologies
• U-Link2.0
• EasyAXS
• 24V
• Dynamic Trajectory
• U-Security

Technical data
Open Gate Indicator: •
Open Gate Alarm: •
Flashing Light: •
Traffic Light Control: •
Active Safety Edge: •
Control Board Power Supply: 220-230 V
Interconnectivity: Yes
Electric Strike Lock: •
Programmable AUX 1: 24V - 1A
Open: •
Resistive Safety Edge: •
Max. Number of Remote Controls: 128
Magnetic Lock: •
Electric Lock: •
Close: •
Monitored Photocell: •
Standby Consumption: < 0,5 W
Maintenance: •
Courtesy Light: •
Pedestrian Open: •
Monitored Active Safety Edge: •
Programming: DISPLAY
Flashing Light + Maintenance: •
Area Light: •
Timed Open: •
Stop: •
Accessory Power Supply: 24V - 0.5A
Gate Status: •
Stairwell Light: •
Timed Pedestrian Open: •
Start: •
Photocell: •
Maximum Power: 400+400 W

CLICK THE LINK FOR INSTRUCTIONS:

MANUFACTURER'S INSTRUCTIONS

24-month warranty
