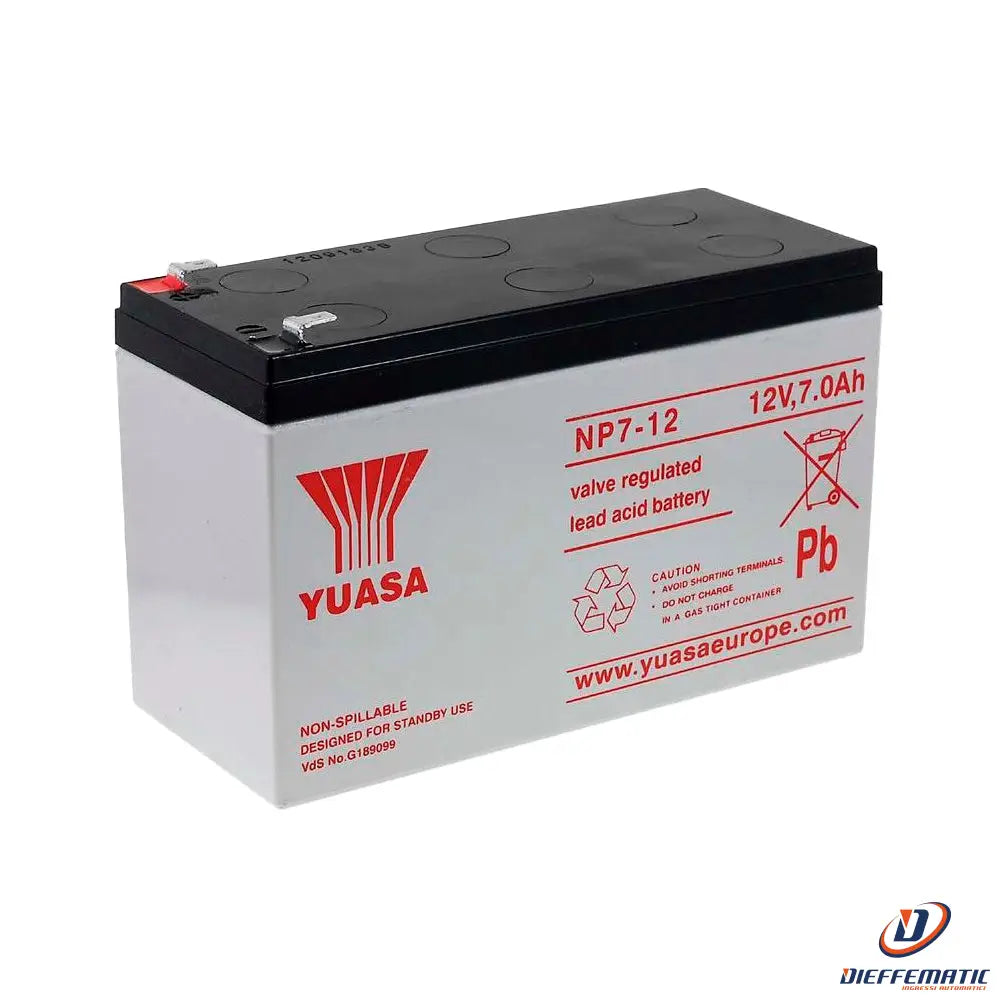

Batt-Np7-12 Rechargeable Battery

Rechargeable battery

Mod. BATT-NP7-12

SKU: BATT-NP7-12

• Yuasa NP7-12

• Rechargeable battery

• AGM lead-acid technology

• Capacity 7 Ah / 12 V

• 65 x 151x x 97.5/ 2200g

• For backup or direct use


DESCRIPTION:

• AGM lead-acid battery

• Yuasa NP7-12 model

• Nominal voltage 12 V

• Rated capacity 7 Ah

• For backup or direct use

• Dimensions 65 (H) x 151 (W) x 97.5 (L) mm

• Weight 2200 g


SPECIFICATIONS:

Brand
Yuasa

Model
NP7-12

Nominal voltage
12 V

Rated capacity
7 Ah (20-hour capacity at 1.75 V/cell at 20°C (Ah)

Charging voltage
Float charge at 20°C (V)/Block: 13.65 (±1%)
Float charge at 20°C (V)/Cell: 2.275 (±1%)
Cyclic charge voltage at 20°C (V)/Block: 14.5 (±3%)
Cyclic charge voltage at 20°C (V)/Cell: 2.42 (±3%)

Maximum charging current
210 A (1 s), 48 A (1 min)

Internal resistance
23 m?

Terminal type
Faston 4.75

Operating temperature
-20°C to +60°C

Charging temperature
-15°C to +50°C

Discharge temperature
-20°C to +60°C

Dimensions
65 (H) x 151 (W) x 97.5 (L) mm

Weight
2200 g


CONTENTS:

• Backup battery

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
