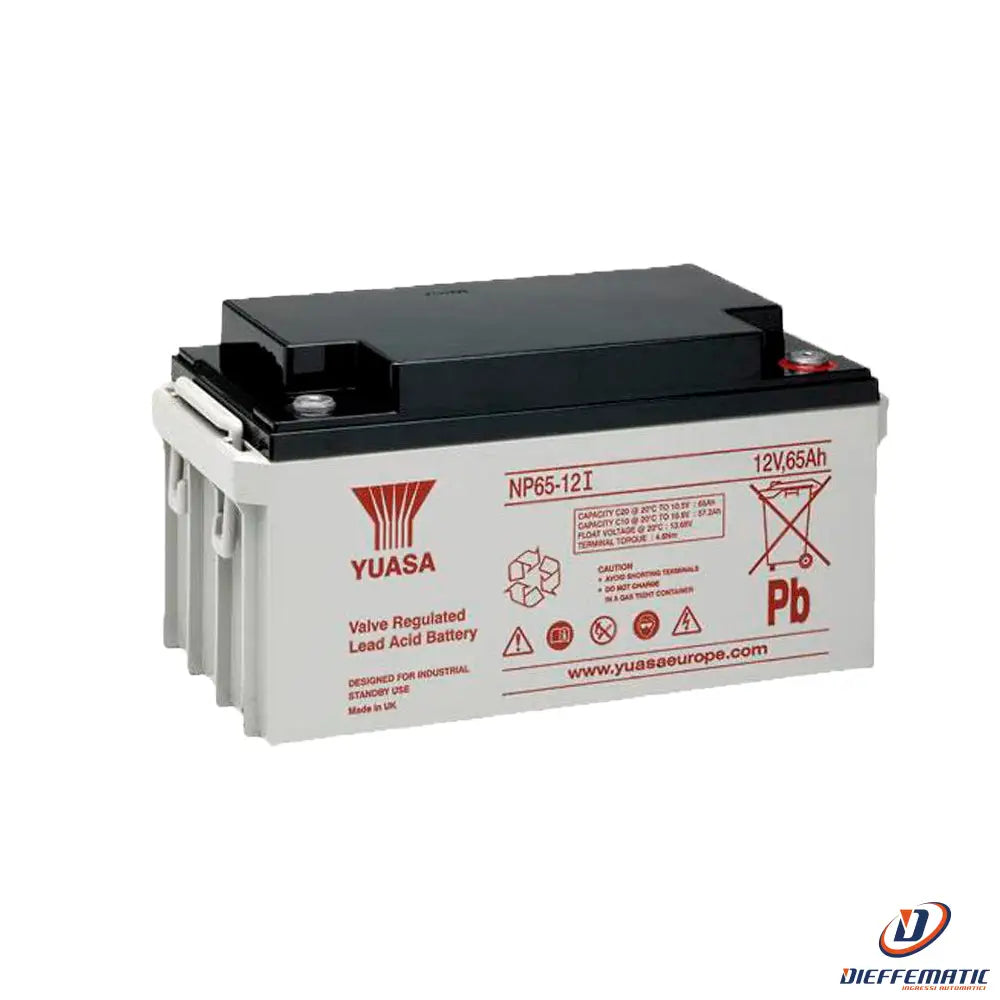

Batt-Np65-12I Rechargeable Battery

Rechargeable battery

Model BATT-NP65-12I

SKU: BATT-NP65-12I

• Yuasa NP65-12I

• Rechargeable battery

• AGM lead-acid technology

• Voltage 12 V / Capacity 65 Ah

• 174 x 350 x 166 mm / 23 kg

• Fire and evacuation certification


DESCRIPTION:

• AGM lead-acid battery

• Yuasa model NP65-12I

• Rated voltage 12 V

• Rated capacity 65 Ah

• Maximum initial current < 8 A

• Standby charging 13.65 V

• Cyclic use 14.5 V

• Dimensions 174 (H) x 350 (W) x 166 (L) mm


SPECIFICATIONS:

Brand
Yuasa

Model
NP65-12I

Rated voltage
12 V

Rated capacity
65 Ah (20HR)

Standby use
13.65 V

Cyclic use
14.5 V

Maximum discharge current
1 second: 800 A / 1 minute: 500 A

Short-circuit current
1375 A in accordance with EN IEC 60896-21

Internal resistance
10.51 m? in accordance with EN IEC 60896-21 / 7m? at 1 KHz

Connection type
M6 (tightening torque 4.76 Nm)

Dimensions
174 (H) x 350 (W) x 166 (L) mm

Weight
23 kg


CONTENTS:

• Backup battery

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF data sheet

24-month warranty
