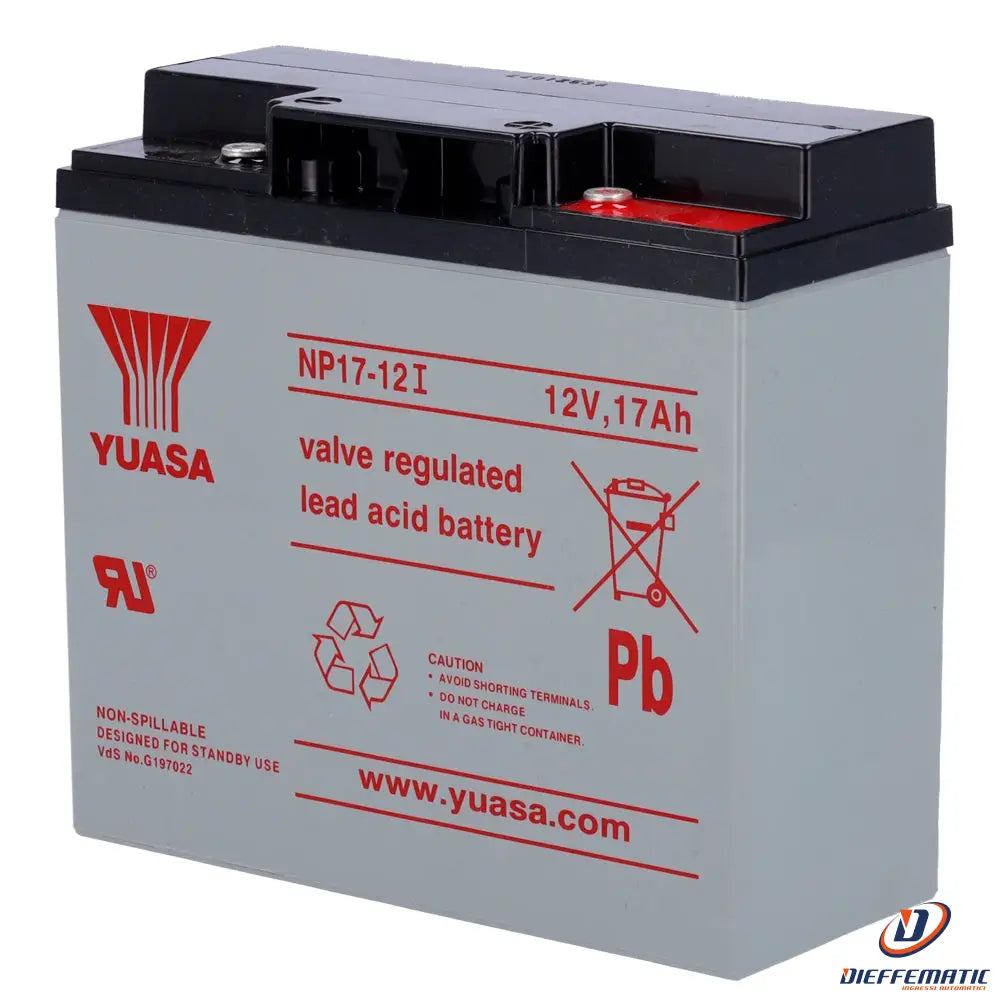

Batt-Np17-12 Rechargeable Battery

Rechargeable battery

Model BATT-NP17-12

SKU: BATT-NP17-12

• Yuasa NP17-12I

• Rechargeable battery

• AGM lead-acid technology

• Capacity 17 Ah / 12 V

• 167 x 76 x 181 / 6.1 kg

• For backup or direct use


DESCRIPTION:

• AGM lead-acid battery

• Model Yuasa NP17-12I

• Nominal voltage 12 V

• Nominal capacity 17 Ah

• For backup or direct use

• Dimensions 167 (H) x 76 (D) x 181 (W) mm

• Weight 6.1 kg


SPECIFICATIONS:

Brand
Yuasa

Model
BATT-NP17-12I

Nominal voltage
12 V

Nominal capacity
17 Ah (10-hour capacity 1.75V/cell at 20°C (15.7 Ah)

Charging voltage
Float charge at 20°C (V)/Block: 13.65 (±1%)
Float charge at 20°C (V)/Cell: 2.275 (±1%)
Cyclic charge voltage at 20°C (V)/Block: 14.5 (±3%)
Cyclic charge voltage at 20°C (V)/Cell: 2.42 (±3%)

Maximum charging current
510 A (1 s), 48 A (1 min)

Internal resistance
34.47 m?

Terminal type
M5 (2.45 Nm)

Operating temperature
-20°C to +60°C

Charging temperature
-15°C to +50°C

Discharge temperature
-20°C to +60°C

Dimensions
167 (H) x 76 (D) x 181 (W) mm

Weight
6.1 kg


CONTENTS:

• Backup battery

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF Datasheet

24-month warranty
