Ba617P-Hac Safire Passive Twisted-Pair Transmitter with Splicing Button

SAFIRE passive twisted-pair transmitter with Splicing Button

Model BA617P-HAC

SKU: BA617P-HAC

• SAFIRE passive twisted-pair transmitter with Splicing Button

• Optimized for HDTVI, HDCVI, AHD and CVBS

• 1 video channel

• Passive, 2-pin connector

• Distance: 150 ~ 500 m

• 2 units


DESCRIPTION:

SAFIRE passive video transmitter for twisted pair, 2 units for transmission and reception, specifically for analog high definition (HD).

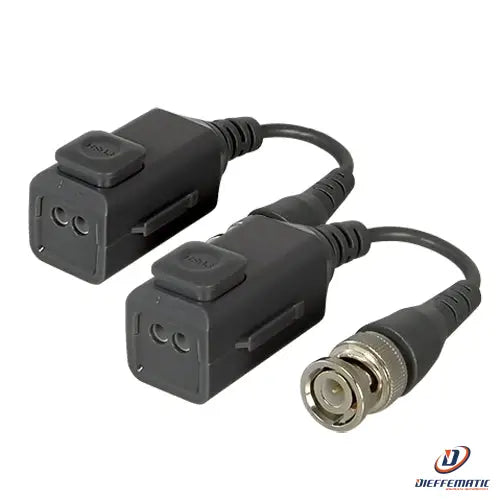

Optimized for transmitting the video signal from 1 analog high-definition HDTVI, HDCVI, AHD or CVBS camera over twisted pair. It has a male BNC connector and a cable insertion terminal with a Splicing Button, a two-pole connector.

The maximum distance between the end connected to the camera and the end connected to the video output depends on the signal resolution and the high-definition technology used:

• HDTVI 720p - 200 m

• HDTVI 1080p - 250 m

• HDTVI 3Mp - 250 m

• HDTVI 5Mp - 150 m

• HDTVI 8Mp - 150 m

• HDCVI 720p - 300 m

• HDCVI 1080p - 250 m

• HDCVI 4Mp - 200 m

• HDCVI 8Mp - 150 m

• AHD 720p - 200 m

• AHD 1080p - 300 m

• AHD 4Mp - 200 m

• AHD 5Mp - 150 m

• CVBS - 500 m


SPECIFICATIONS:

Number of channels
1 channel

Power supply
Not required (passive)

Video input / output
BNC (male)

Transmission distance
HDTVI 200/250/250/150/150 m (720p/1080p/3Mp/5Mp/8Mp), HDCVI 300/250/200/150 m (720p/1080p/4Mp/8Mp)
AHD 200/300/200/150 m (720p/1080p/4Mp/5Mp), CVBS 500 m

Twisted-pair connector
Two-pin connector

Bandwidth
75 MHz

Cable category
UTP Category 5E/6


CONTENTS:

• - Pair of HD passive transceivers

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF data sheet

24-month warranty
