Description

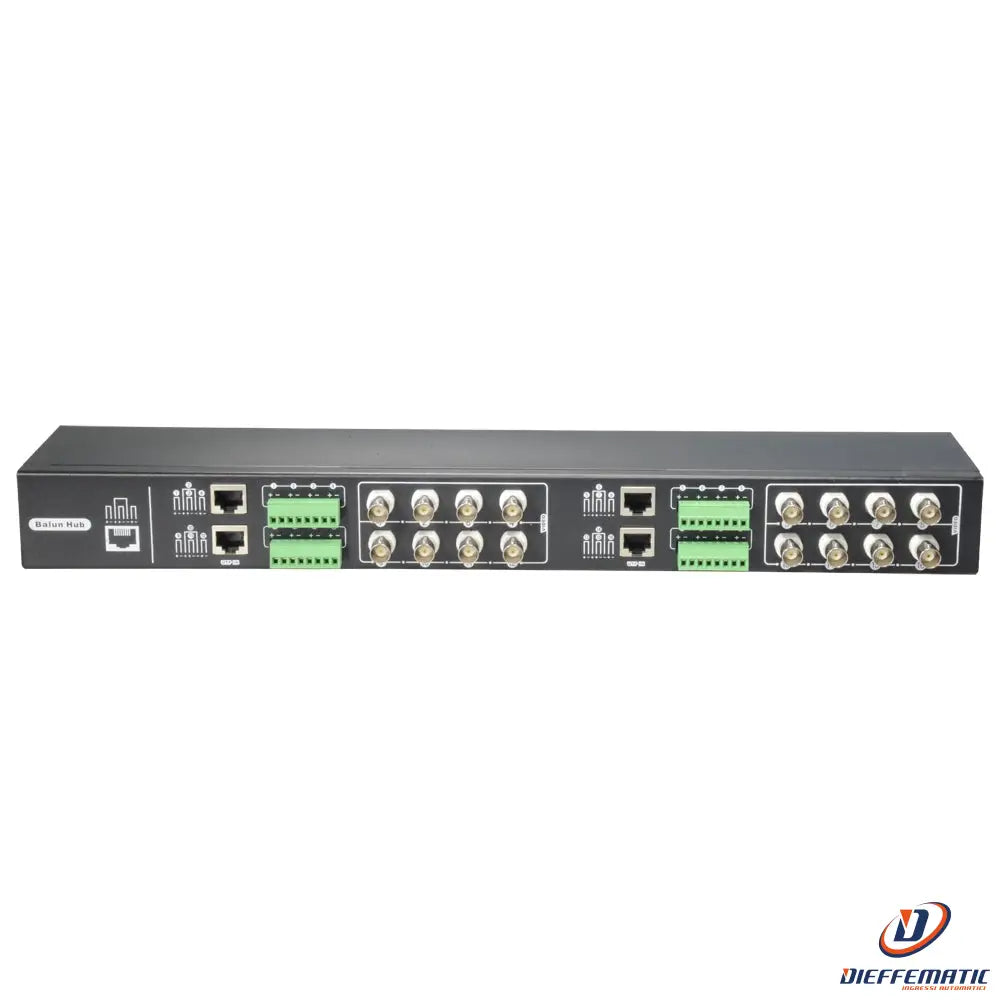

4N1 Video Balun (HDTVI, HDCVI, AHD and CVBS)
Model BA616P-HD
SKU: BA616P-HD
• 4N1 Video Balun (HDTVI, HDCVI, AHD and CVBS)
• 16 passive channels
• Includes 16 BA612P-HAC
• BNC and RJ45 connection
• Distance: 180 ~ 440 m
DESCRIPTION:
16-channel passive video transmitter for twisted-pair cable, optimized for HDTVI / HDCVI / AHD / CVBS video. It can operate as a transmitter or receiver and transmits the signal from four cameras over a single UTP cable.
The adapter has 16 BNC connectors for connections to the video recorder. Includes 16 individual BA612P-HAC baluns to connect to each camera.
It also has 4 connectors for UTP cables, via two RJ45 connectors or 4 clips with 4 contacts +/-, for wiring.
The maximum length between the end connected to the camera and the end connected to the video output is: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) and AHD 320/250/200 m (720p/1080p/5Mpx).
19" rack-mountable.
SPECIFICATIONS:
Tx input / Rx output
16 female BNC video connectors
Tx output / Rx input
4 RJ45 connectors or 16 connectors via clips for CAT5 UTP cable
Bandwidth
DC up to 42 MHz
Video format
NTSC, PAL, SECAM
Impedance
BNC 75 ?, UTP 100 ?
Distance
HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K)
AHD 320/250/200 m (720p/1080p/5Mpx) CVBS 400 m
Power supply
Passive (Not required)
Dimensions
45 (H) x 430 (W) x 85 (D) mm
Weight
1250 g
CONTENTS:
• 16-channel balun
• Installation materials
• 16 BA612P-HAC baluns
• Instructions
• BA616P-HD
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
