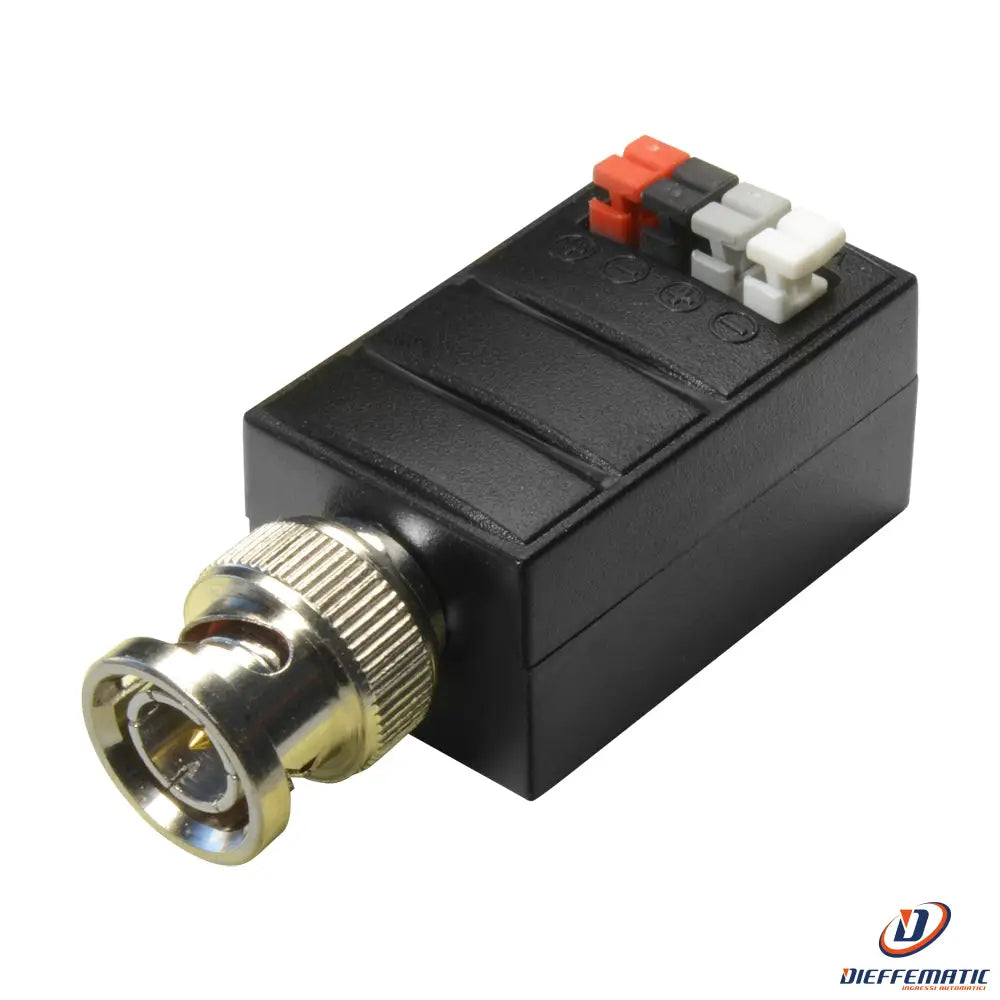

Ba615A-Tx Active Transceiver

Active transceiver

Model BA615A-TX

SKU: BA615A-TX

• Active transceiver

• Optimized for HDTVI / HDCVI / AHD

• 1 video channel

• BNC/UTP 4 pins

• Distance: 400 ~ 700 m

• Transmitter / Compatible with BA615A-RX


DESCRIPTION:

• Balun (transceiver)

• Optimized for HD video: HDTVI / HDCVI / AHD

• 1 channel

• Active

• 12V DC power supply

• BNC/UTP 4 pins

• Video

• Maximum distance: 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)

• 1 transmitter

• Compatible with BA615A-RX


SPECIFICATIONS:

Number of channels
1 channel

Power supply
12VDC / 1A (Passive)

Video input / output
BNC (male)

Transmission distance
400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)

Twisted-pair connector
4-pin connector

Crosstalk
60 dB

Input impedance
75 Ohm

Output impedance
100 Ohm

Cable category
UTP category 5e/6


CONTENTS:

• Active transceiver

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
