Ba614P-Hac Video Balun for Hdtvi / Hdcvi / Ahd /Cvbs

Video balun for HDTVI / HDCVI / AHD /CVBS

Mod. BA614P-HAC

SKU: BA614P-HAC

• Video balun for HDTVI / HDCVI / AHD /CVBS

• 4 passive channels

• Includes 4 BA612P-HAC

• BNC and RJ45 connection

• Distance: 180 ~ 440 m


DESCRIPTION:

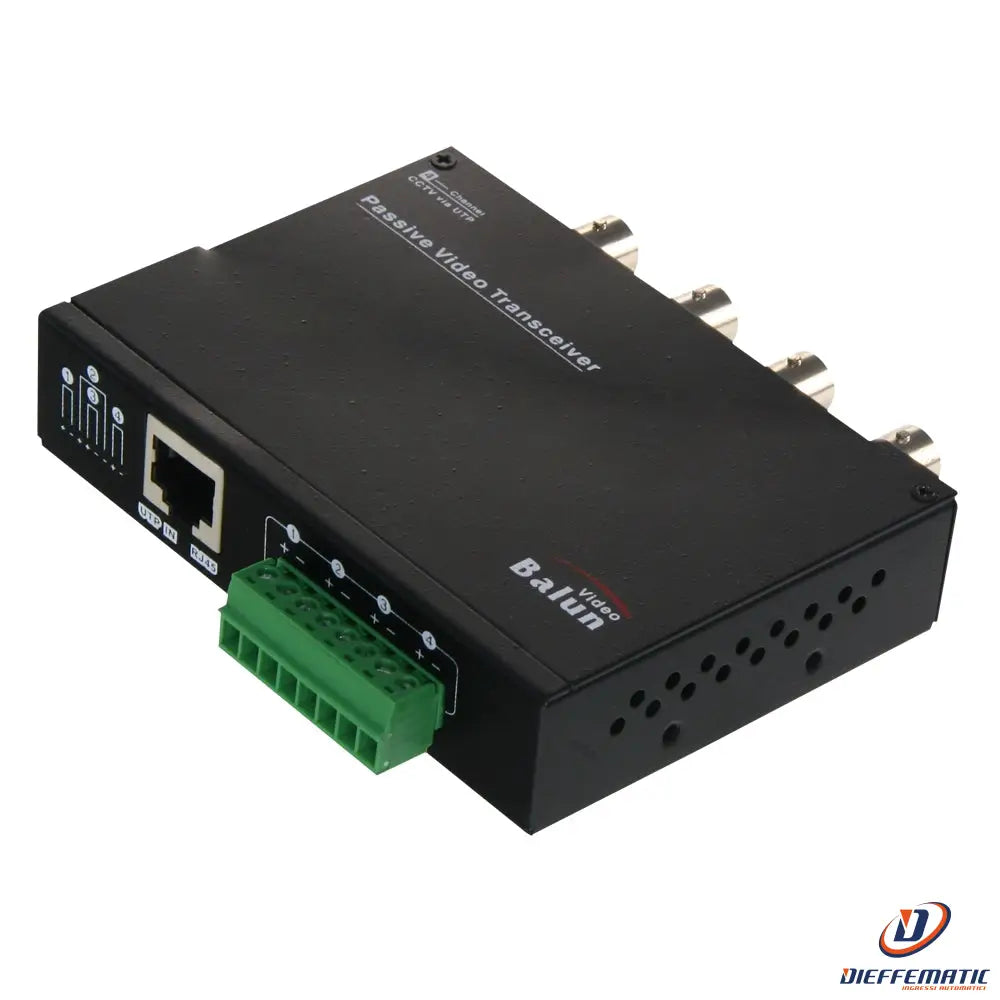

Passive 4-channel video transmitter for twisted pair, optimized for HDTVI / HDCVI / AHD / CVBS video. It can operate as a transmitter or receiver and transmits the signal from four cameras over a single UTP cable.

The adapter has 4 BNC connectors for connection to the DVR. It includes 4 individual BA612P-HAC baluns for connection to cameras.

On the other side, it has a connector for UTP cable, either an RJ45 or a 4-contact +/- terminal block, for connecting the wires.

The maximum length between the end connected to the camera and the end connected to the video output is:

• HDTVI 720p - 200 m

• HDTVI 1080p - 300 m

• HDCVI 720p - 400 m

• HDCVI 1080p - 200 m

• AHD 720p - 300 m

• AHD 1080p - 300 m

• AHD 4 Mpx - 300 m

• HDTVI 4 Mpx 100 m

• HDCVI 4 Mpx 200 m

• HDTVI 4K 100 m

• HDCVI 4K 200 m


19" rack-mountable.


SPECIFICATIONS:

Tx input / Rx output
4 female BNC connectors for video

Tx output / Rx input
1 RJ45 connector or 4 terminal block connectors for CAT5 UTP cable

Bandwidth
DC to 42 MHz

Video format
NTSC, PAL, SECAM

Impedance
BNC 75 ?, UTP 100 ?

Transmission distance
HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K)
AHD 300/200/200 m (720p/1080p/4 Mpx), CVBS 300 m

Power supply
Passive (not required)

Dimensions
25 (H) x 102 (W) x 90 (L) mm

Weight
200 g


CONTENTS:

• 4-channel balun

• Installation materials

• 4 BA612P-HAC baluns

• Instructions

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
