Description

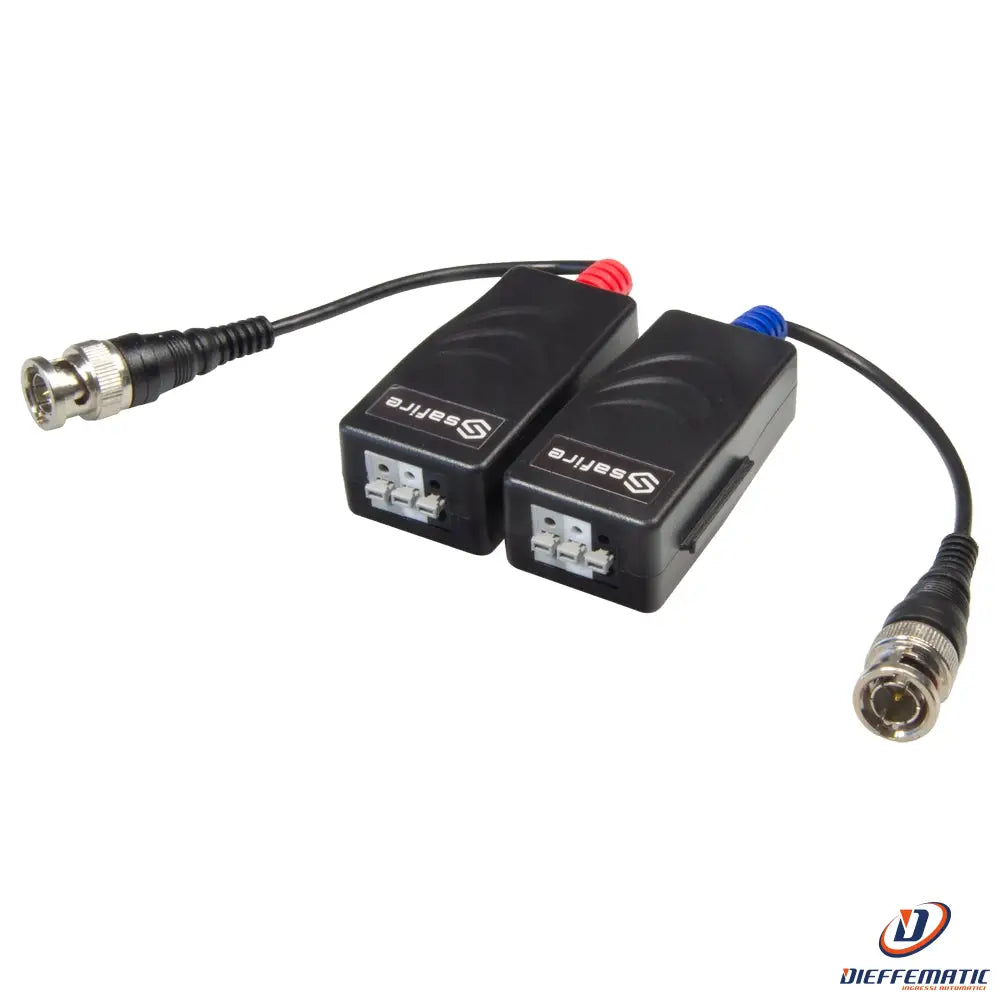

Passive twisted-pair transmitter
Mod. BA613P-HAC
SKU: BA613P-HAC
• Passive twisted-pair transmitter
• 4N1 (HDTVI / HDCVI / AHD / CVBS)
• 1 video channel
• Passive, 2-pin connector
• Distance: 190 ~ 440 m
• 2 units
DESCRIPTION:
• Balun (transceiver)
• Optimized for 4N1 (HDTVI / HDCVI / AHD / CVBS)
• 1 channel
• Passive
• BNC/UTP 2-pin
• Video
• Maximum distance: HDTVI 250/230 m (720p/1080p), HDCVI 440/240 m (720p/1080p) and AHD 330/320 m (720p/1080p)
• 2 units (transmitter and receiver)
• Ground loop isolator eliminates interference
SPECIFICATIONS:
Number of channels
1 channel
Power supply
Not required (passive)
Video input / output
BNC (male)
Transmission distance
HDTVI 250/230 m (720p/1080p) HDCVI 440/240 m (720p/1080p)
AHD 330/320 m (720p/1080p)
Twisted-pair connector
2-pin connector
Crosstalk
60 dB
Input impedance
75 Ohms
Output impedance
100 Ohms
Cable category
UTP Category 5E/6
CONTENTS:
• Pair of HD passive transceivers
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
