Description
Complete Kit for SLIDING Gate Automation
With 3 metres of galvanized rack
600Kg - 230V
Professional
**encoder unit can be installed (optional)**
Mod. KV6 230V
- Irreversible electromechanical gearmotor for automating sliding gates, with all-metal gears for guaranteed performance and reliability.
- Robust and safe, it features a painted die-cast aluminum body and an ABS protective casing.
- It features an innovative mechanical limit switch system that is easy to adjust and ensures high positioning repeatability.
- Particularly suitable for use in areas where snow is common, thanks to the absence of contact between the limit switch and the rack.
- A convenient custom-key release system allows the gate leaf to be moved manually when there is no mains power.
- Control equipment with radio receiver, in a dedicated enclosure with an Aerstop gasket to protect against moisture and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed slowdown.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
- N° 1 600 kg electromechanical gearmotor, 220V power supply with key release, dimensions H270 X L230 X D210 mm. Weight 8 kg.
- N° 1 Galvanized foundation plate
- N° 1 Control unit housed in the motor casing, with motor force adjustment trimmer and obstacle detection, slowdown during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges
- N° 1 Single-channel radio receiver built into the control unit (433.9 MHz)
- N° 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
- N° 1 4-channel Rolling Code remote control
- N° 1 Pair of wall-mounted photocells

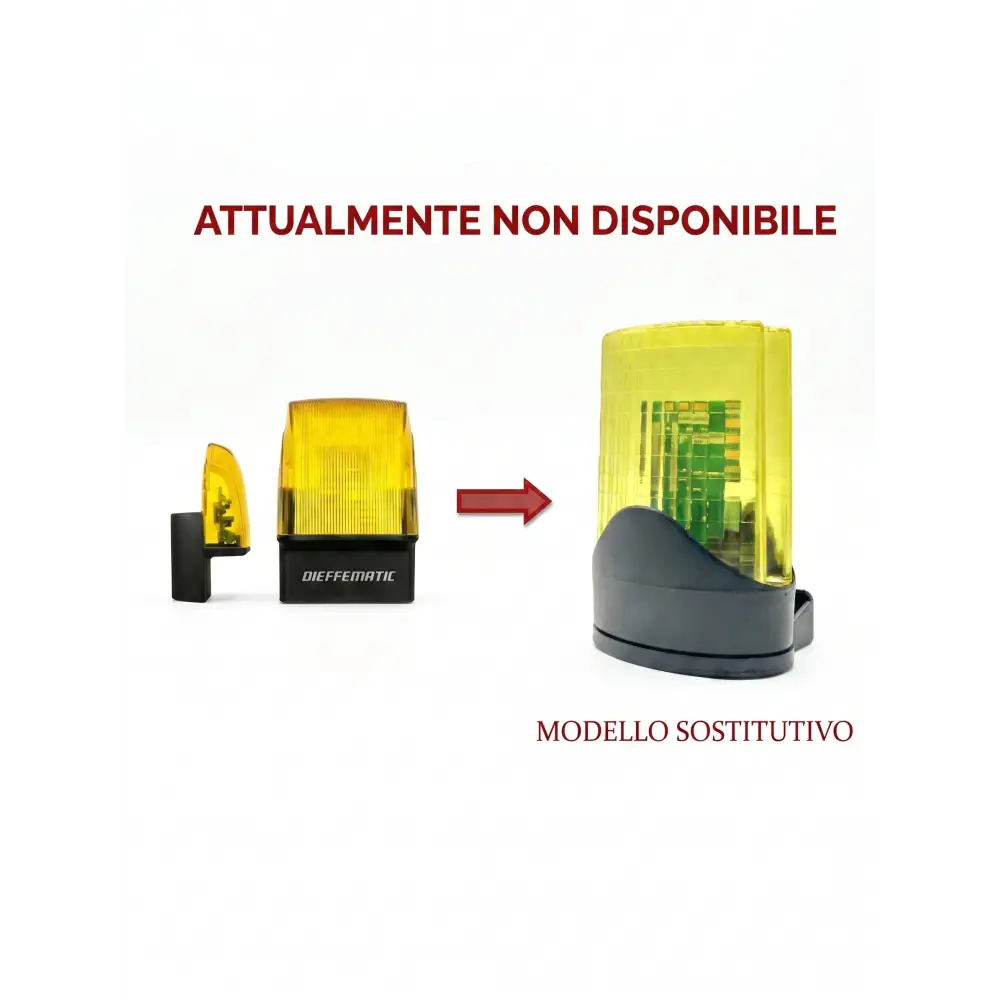

- N° 1 230V flashing light
- N° 1 Warning sign
- N° 1 Installation accessories
- N° 1 Instructions for mechanical and electronic installation in ITALIAN
+ N° 3 METRES OF GALVANIZED STEEL RACK
24-month warranty
