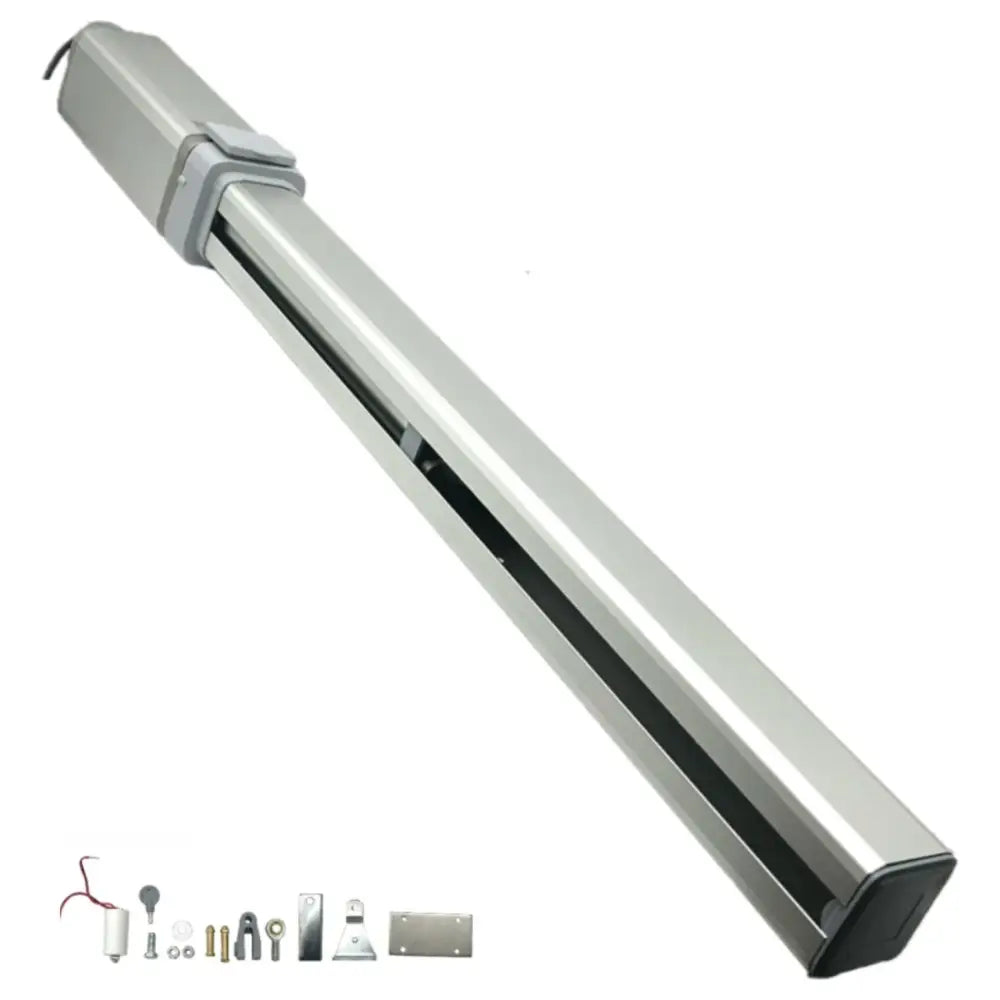

Professional VDS HYDRA 390 230V hydraulic actuator for gate leaves up to 6m. Exceptional 3500N thrust. Maximum strength and IP55 reliability.
The VDS HYDRA 390 230V hydraulic piston is the top-of-the-range solution for heavy-duty operation, with an extended piston rod stroke of 390 mm and a powerful thrust of 3500N. Specifically designed for large gate leaves (up to 6 metres long), it ensures consistent industrial-grade performance.
High-performance hydraulic actuator for oversized single swing gate leaves.
Benefits: Increased piston rod speed of 1,5 cm/s and capacity of up to 60 cycles/hour, ideal for high-traffic commercial or industrial entrances.
Solution: Ideal for panelled or very heavy gates exposed to strong gusts of wind, where the 3500N thrust prevents swaying or structural jamming.
KEY BENEFITS
Extended piston rod stroke of 390 mm for improved mechanical leverage
Exceptional 3500N thrust for gate leaves up to 6 metres long
Intensive use frequency of up to 60 cycles per hour
RECOMMENDED APPLICATIONS
High-traffic industrial, commercial or condominium entrances
Gate leaves from 2,3 metres up to 6 metres long
TECHNICAL SPECIFICATIONS
Model: HYDRA 390
Power supply: 230Vac (±5%) 50/60Hz
Power consumption: 250 W
Current draw: 1,2 A
Max. piston rod stroke: 390 mm (Recommended 370 mm)
Piston rod speed: 1,5 cm/s
Cycles/hour: 60
Operating temperature: -20°C to +60°C
Max. thrust: 3500 N
Required capacitor: 12,5 µF
Operator weight: 13,6 Kg
Protection rating: IP 55
Max. gate leaf length: 6 m
Gate leaf opening angle: 90° - 125°
SPECIFICATIONS
Irreversible mechanism: Equipped with a full hydraulic lock. It becomes reversible for manual opening by using the special key supplied on the protected central valves.
COMPATIBILITY
Fully compatible with the Dieffematic EKOS230M2 control unit
PACKAGE CONTENTS
1x VDS HYDRA 390 hydraulic actuators
1x Pair of mounting brackets (front and rear)
1x Manual release keys
Mounting accessories and technical manuals.
TECHNICAL DOCUMENTATION
MECHANICAL INSTALLATION
IRREVERSIBLE/REVERSIBLE CONVERSION GUIDE
24-month warranty
