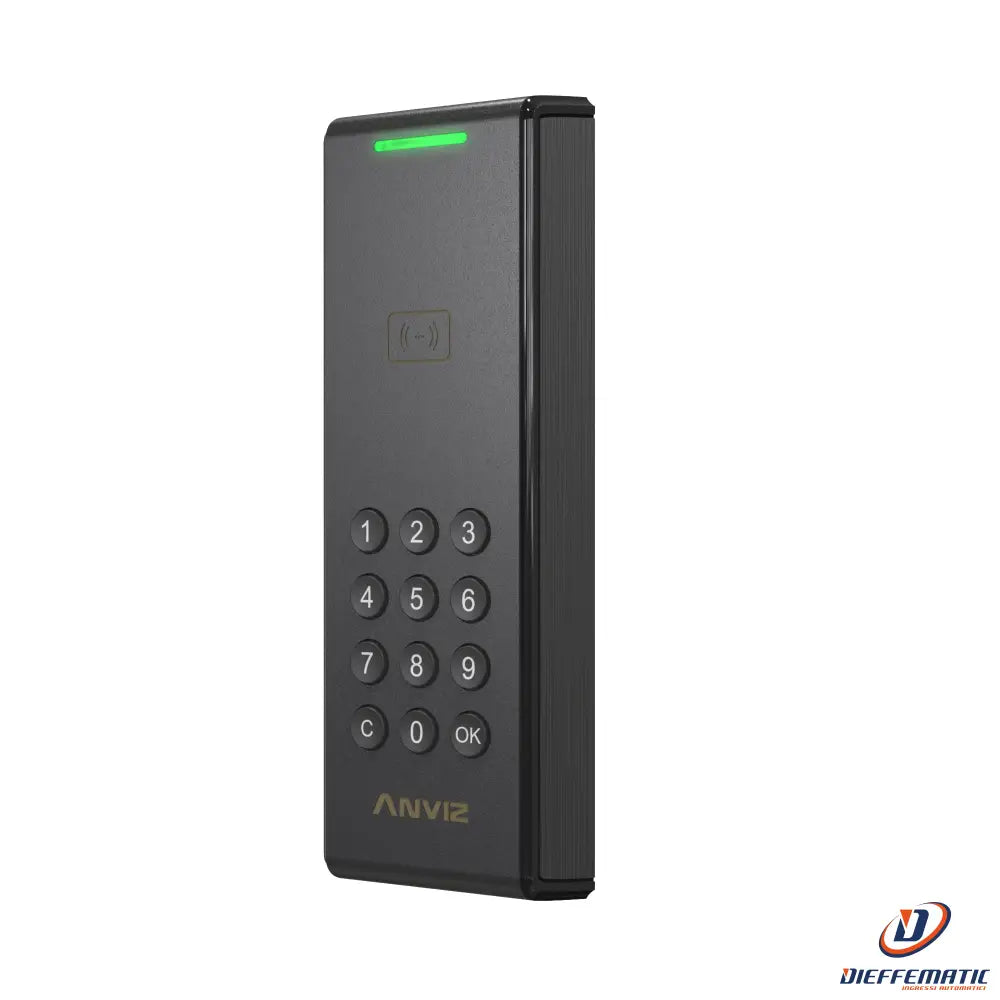

IP65 PoE access control
Mod. C2KA-BT-WIFI
SKU: C2KA-BT-WIFI
IP65 PoE access control
• EM/MF card and PIN
• 10,000 users | 100,000 records
• TCP/IP, WiFi, Bluetooth, RS485 and Wiegand
• Integrated controller
• CrossChex Standard / Mobile
DESCRIPTION:
• Anviz
• Standalone access control reader
• Identification via EM/MF card, PIN and/or combinations
• Capacity: 10,000 cards/passwords and 100,000 records
• TCP/IP, WiFi, Bluetooth, RS485 and Wiegand communication
• Integrated controller (door sensor, button and relay)
• Suitable for outdoor use, IP65
• IEEE802.3af standard PoE
• Compatible with CrossChex Standard software
• Manage users and door openings from the CrossChex Mobile app, available free for iOS and Android
SPECIFICATIONS:
Brand
Anviz
Model
C2KA-BT-WIFI
Capacity
Up to 10,000 cards/passwords
Records
100,000 records
Identification methods
Card, PIN and/or combinations
Proximity card
EM RFID (125 kHz) and MF (13.56 MHz)
Communication
TCP/IP, WiFi, Bluetooth, RS485 and Wiegand
Inputs
1 x door sensor, 1 x button, 1 x Wiegand IN
Outputs
1 x NO/NC relay, 1 x Wiegand OUT, 1 x DC 12 V
Software
CrossChex Standard: free local PC software for access control and time and attendance
CrossChex Mobile: free mobile app for access control
Voices
Spanish, English, French and Portuguese
Change language via WebServer using a browser
Power supply
DC 12 V / 1 A max.
IEEE802.3af standard PoE
Protection rating
Suitable for outdoor use, IP65
Operating temperature
-10 °C ~ +60 °C
Dimensions
50 (H) x 159 (W) x 20 (D) mm
Weight
450 g
CONTENTS:
• Anviz standalone access control device
• Installation materials
• Instructions for use
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
C2KA User Manual
CrossChex IT Manual
24-month warranty
