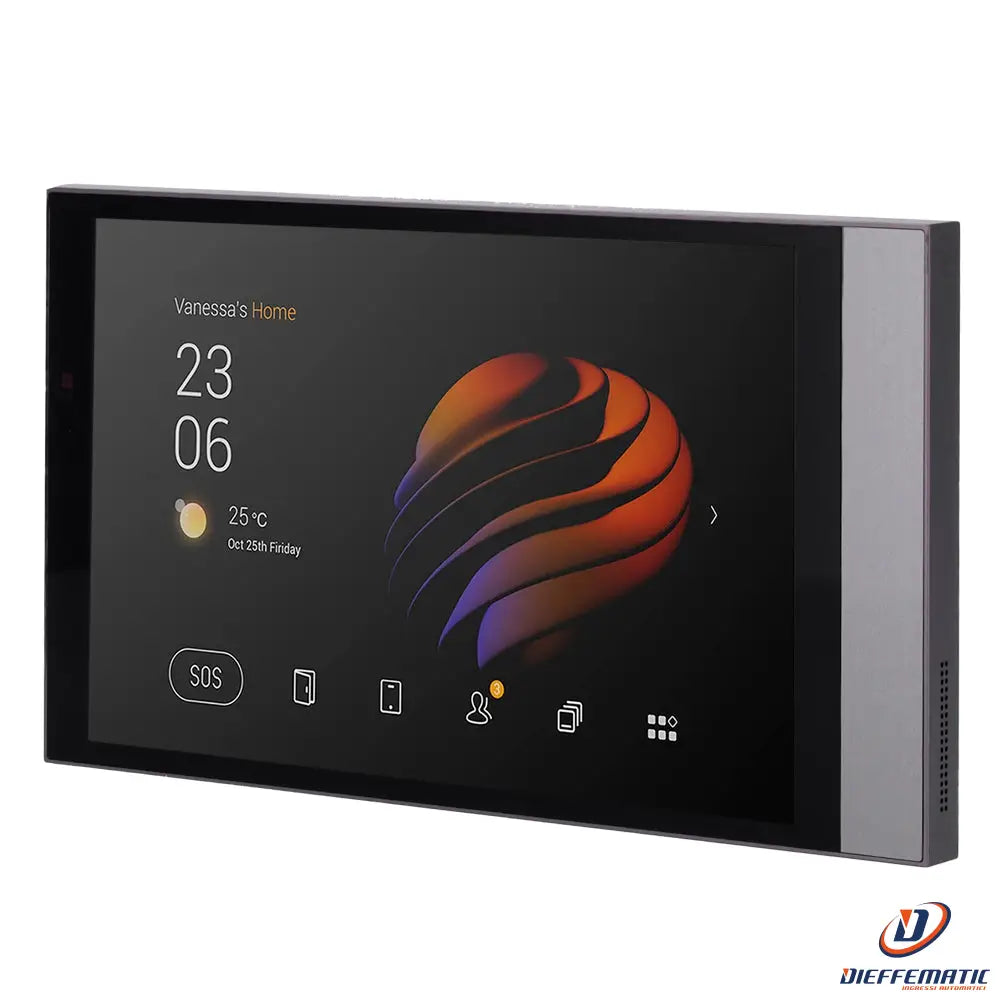

Akubela Ak-Pg71N-Knx-Eu Android 10.0 Smart Home Monitor

Android 10.0 smart home monitor

Model AK-PG71N-KNX-EU

SKU: AK-PG71N-KNX-EU

• Android 10.0 smart home monitor

• 8" TFT screen | Third-party applications

• Two-way audio | Video intercom monitor

• TCP/IP, WiFi, Bluetooth, ZigBee, KNX, SIP

Environmental sensors, 2 relays

• Cloud connection


DESCRIPTION:

• Akuvox

• Akubela range

• 8" Android 10.0 TFT display for smart home control

• Video intercom monitor function

• Built-in dual microphone and speaker

• Two-way audio with Crystal Clear technology

• Automatic voice detection

• 2 relay outputs

• Proximity, light, temperature and humidity sensor

Multi-screen expansion

• TCP/IP, WiFi, Bluetooth, ZigBee and KNX

• Standard SIP, easy to integrate

• Flush-mounted in an additional standard junction box

• Full configuration via web browser

• Push notifications and calls between devices via the BelaHome or SmartPlus app

• 4 free users included per home

Call and user directory

• Create scenes and smart automations

• Cloud firmware updates managed by the installer

• Cloud connection between outdoor stations and monitors across different networks

• Install third-party applications with Google Services

• Remote access to the installation configuration


SPECIFICATIONS:

Brand
Akuvox
Akubela range

Model
PG71N-KNX-EU

Operating system
Android 10.0

Hardware
RAM: 2 GB | ROM: 16 GB

LCD
8" TFT 1280 x 800

Operating mode
Capacitive touch panel

Inputs
1 x 0-5 V digital input

Outputs
2 x relays

Sensors
Proximity, light, temperature and humidity

Functions
Search and management of smart home devices
Management of scenes and smart automations
Connection to KNX bus
Video intercom monitor

Audio
Two-way audio with dual microphones and speaker featuring noise reduction with Crystal Clear Audio technology

Remote access
Configuration via web browser
Bela Home mobile app (scenes and automations) or SmartPlus (intercom)
Remote cloud access: yes

Operating mode
Local network and/or via the cloud across different networks

Firmware updates
Remotely via the cloud using an installer account or locally via web browser

Network interface
Ethernet 10/100 BaseT / WiFi 802.11b/g/n / Bluetooth 4.2 / ZigBee 3.0 / KNX

Power supply
DC 21-30 V (via power supply or KNX bus)

Operating temperature
-10° C ~ +50° C

Dimensions
214 (H) x 120 (W) x 46.7 (D) mm

Weight
600 g


CONTENTS:

• Akuvox smart home indoor monitor

• Installation materials

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Installation Guide AK-PG71-KNX-EU

24-month warranty
