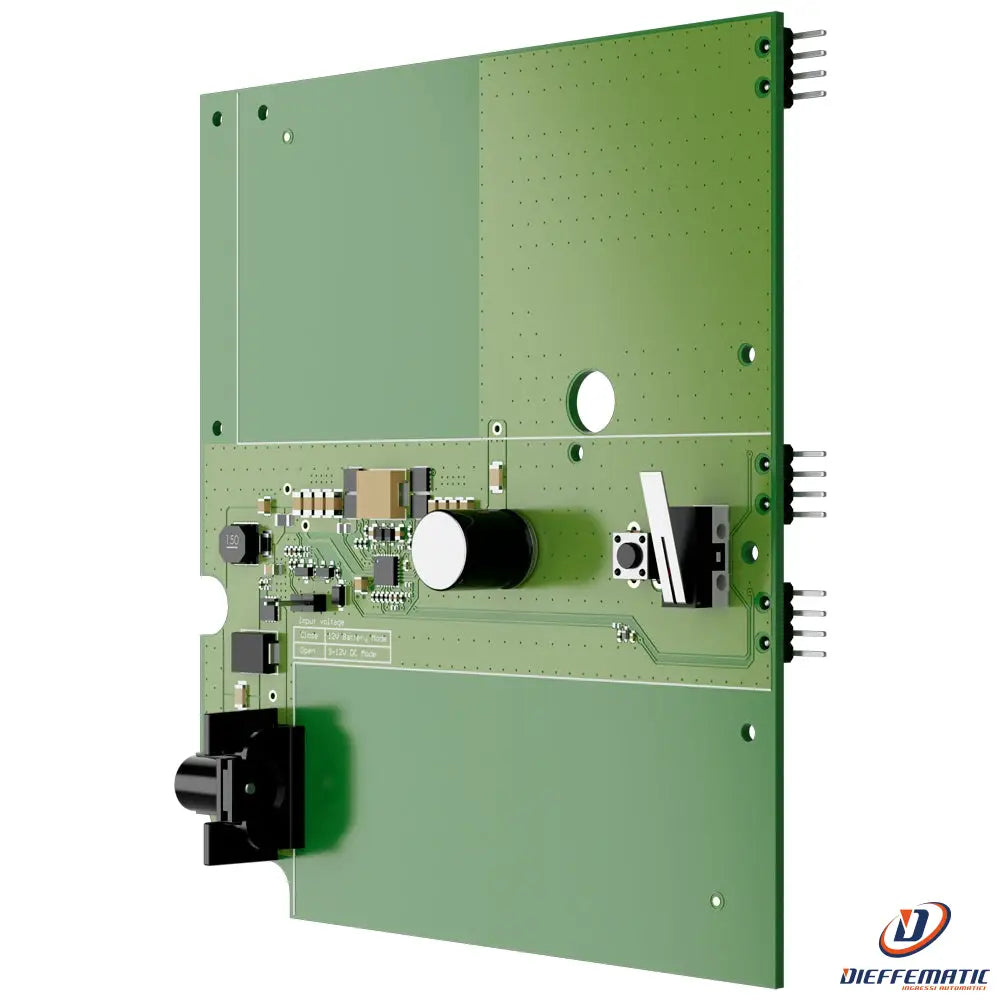

Ajaxcctv Aj-Dc12V-Psu-Nvr 12 Vdc Power Supply Module

12 VDC power supply module

Model AJ-DC12V-PSU-NVR

SKU: AJ-DC12V-PSU-NVR

• 12 VDC power supply module

• Compatible with Ajax 8- and 16-channel NVRs

• Input voltage 8~16 VDC

• CON280 connector included


DESCRIPTION:

The Ajax 12 V power supply for NVRs powers a video recorder (NVR) directly from a 12 V battery, ensuring continuous operation even when mains power is unavailable or during power outages.

This makes it an ideal solution for installations in remote locations or places without access to electricity, such as warehouses, construction sites, or rural areas. It is also perfect for installations that require continuous monitoring, even during a power outage, ensuring a stable power supply and uninterrupted operation of the video surveillance system to protect critical data and strengthen security at all times.

The 12 V power supply for NVRs is easy to install directly on the NVR itself, enabling fast, hassle-free integration. Its compact design ensures a neat and efficient installation, optimizing time and resources on any video surveillance project.


• Ajax

• 12 VDC power supply module for Ajax 8-ch and 16-ch NVRs

• Input voltage 8~16 VDC

• Maximum input current 4 A

• Easy installation after replacing the NVR board


SPECIFICATIONS:

Brand
Ajax

Compatibility
Ajax 8-ch and 16-ch NVR

Input voltage
8~16 VDC

Required current
4 A maximum

Output current
2 A

Operating temperature
0 °C ~ 40 °C

Operating humidity
Up to 75%

Protection rating
IP20

Dimensions
118 (H) x 123 (W) x 17 (D) mm

Weight
51 g


CONTENTS:

• 12 VDC power supply module for Ajax 8- and 16-channel NVRs

• Pin adapter

• Instruction manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF sheet

MAN-IT-DC12V-PSU-NVR

24-month warranty
