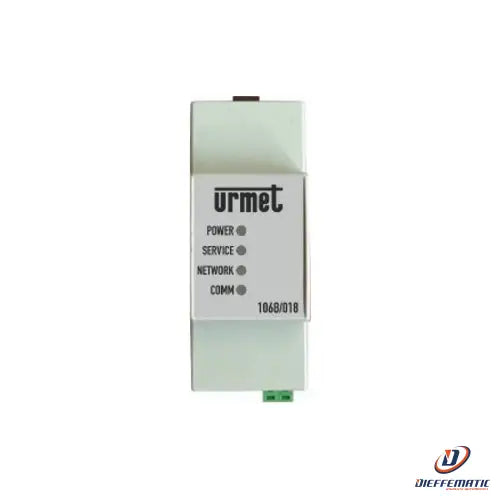

Modbus interface for 1068 control panels
Mod. 1068/018
SKU: 1068/018
The Modbus interface is a gateway that allows 1068 intrusion control panels to communicate with the Modbus communication standard.
The connection to the LAN network can be either wired (RJ45 cable) or WiFi.
• Nominal supply voltage: 12 ÷24V
• Frequency band: 2400 ÷ 2483.5 MHz
• Output power (max.) : 0.032°
• Ethernet LAN standard: IEEE 802.3/802.3u
• WiFi LAN standard: IEEE 802.11 b/g/n
• Operating temperature: -20°C ÷ +65°C
• Dimensions on DIN rail (W x H x D) mm: 37 (~ 2 DIN modules) x 91 x 62
24 month warranty
