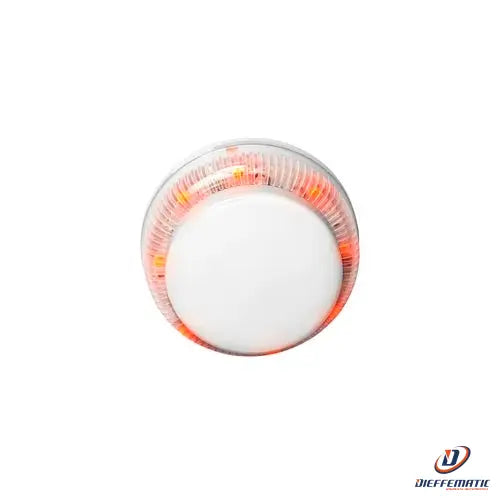

Loop-addressed base with integrated siren and flashing light, line 500
Mod. 1043/512
SKU: 1043/512
The device is a base with integrated siren and flashing light, it can be used either as an independent actuation device or with a detector of the digital line of the 500 series (code 1043/501/502 /503 /504). The base, if connected to an addressed control unit, connects directly to the loop (does not require external power) and takes on an address.
The 1043/512 base is equipped with a high sound pressure siren and a powerful LED flasher.
Like all Urmet digital devices, it is equipped with a built-in isolator module.
The base implements acoustic and optical synchronization with other bases installed on the same detection line.
• Operating voltage: 20Vdc (-15%, +10%) modulated - detection line
• Quiescent current: 250 microA @20Vdc
• Alarm current consumption: 2.5 mA @20Vdc
• Sound power at 1 m: 78 dB
• Integrated isolator module
• Selectable beep tones
• Selectable sound emission volume
• Lid supplied with the product
• Configuration from central unit or via dip
• Degree of protection: IP21C
• Max. number of bases in alarm per line: 20 on a 64 Ohm base
• (the number varies according to the resistance of the cable)
• Dimensions: ø 114mm
• EN54 part 3 certification: DoP number 1293-CPR-0535
24 month warranty
