Description

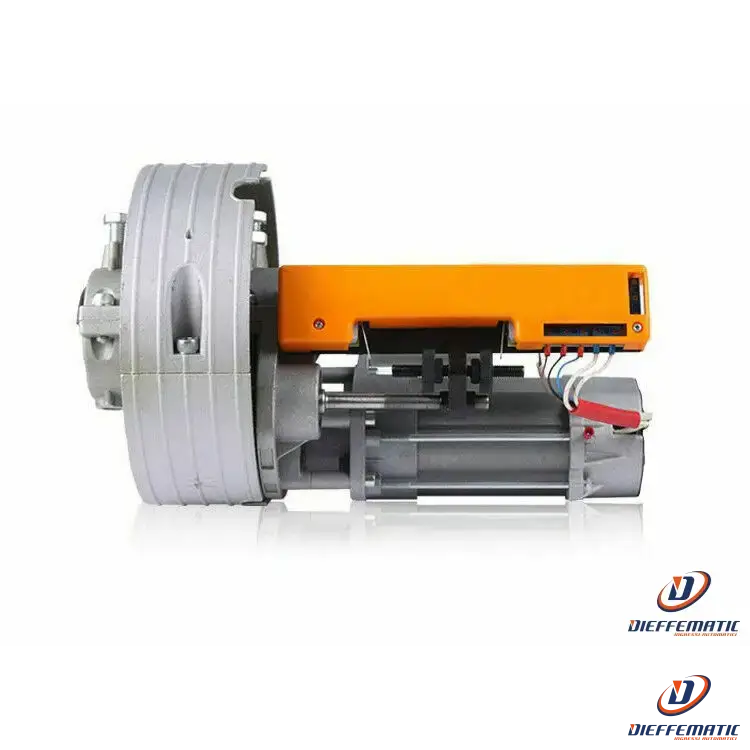

Automation for Roller Shutters
Capacity: 100 kg
Professional
The quality of the materials makes this motor lightweight, quiet and compact, ensuring excellent operating life.
The BIG series enables quick and easy motorisation of commercial and garage roller shutters.
COVER COLOUR
The standard motor cover colour is YELLOW/ORANGE. Depending on the supply batch and availability, the motor cover may also be shipped in RED or GREY.
Please note: the variation is purely aesthetic and limited to the colour of the outer cover. Performance, electric brake, mounting adapters (spring Ø 200 mm - shaft Ø 48/60 mm), wiring and 180 kg capacity remain exactly 100% identical for all colours.
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL
Features:
Power supply: 230 Vac - 50 Hz
Extremely easy to install, even on existing shutters,
thanks to the device's ability to split into two parts that can be rejoined on the spring shaft.
Built-in, easily adjustable limit switches.
The gearbox is irreversible and locks the shutter when closed, but a corresponding manual release is provided.
The electric brake is factory-fitted.
Cast aluminium body, steel alloy mechanical components.
Permanently lubricated with lithium grease
The motor is suitable for 60-48 mm shafts; for 42-33 mm shafts, the 42 mm shaft adapter, code RD42, must be purchased separately.
Outer ring, 200 mm diameter, includes 220 mm adapter.
Motor cover colour: Yellow (Standard) | Red or grey (depending on stock availability)
KIT CONTENTS:
No. 1 electromechanical actuator, cast aluminium housing, high-performance electric motor.
Power supply: 220 V, 50 Hz. Weight: 8.3 kg
No. 1 electric brake with release knob
No. 1 installation accessories
No. 1 mechanical and electronic installation manual in ITALIAN
24-month warranty
