Description

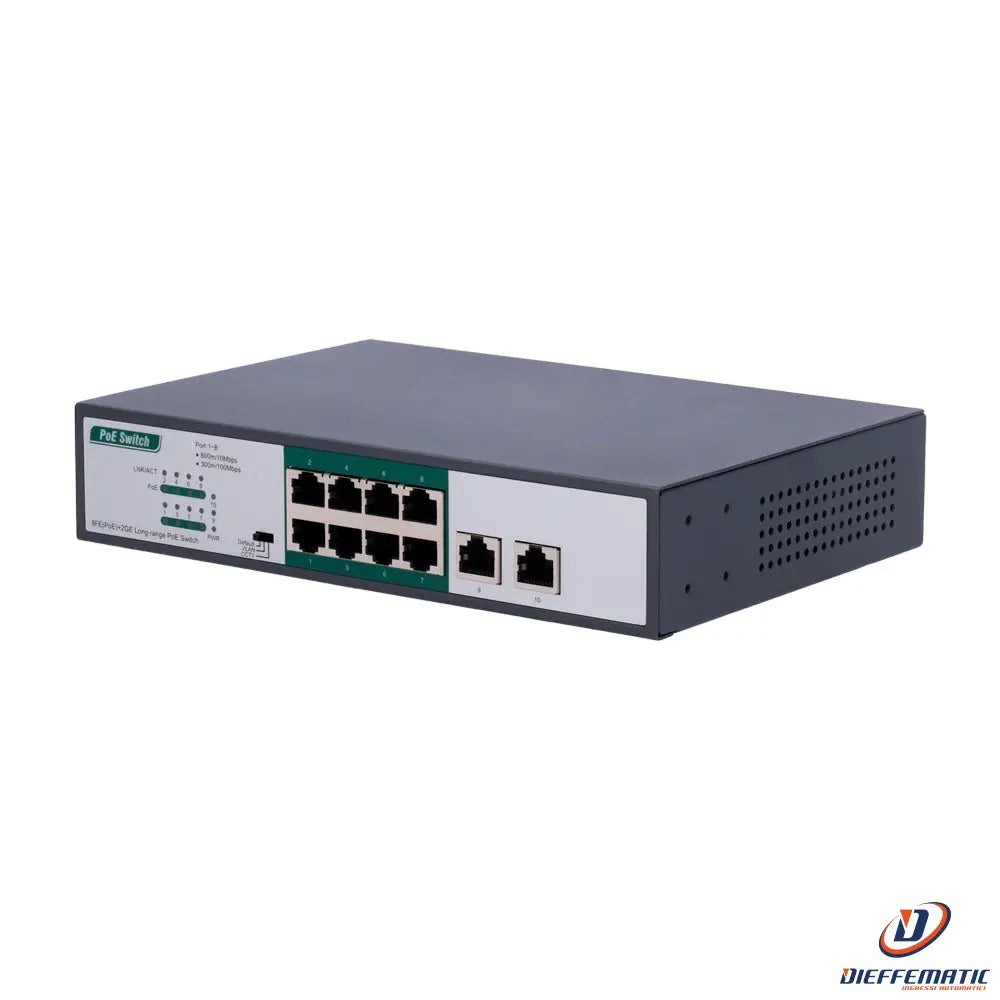

PoE switch
Mod. SW1008POE-H-800M-120W
SKU: SW1008POE-H-800M-120W
• PoE switch
• 8 PoE FE ports + 2 GE ports
• Speed: 8 x10/100Mbps + 2 x10/100/1000Mbps
• 8 PoE+ ports up to 800m with accessory
• Up to 120 W total PoE power
• IEEE802.3at PoE / af PoE+ standard
DESCRIPTION:
• Desktop switch
• 8 PoE+ RJ45 10/100 Mbps ports + 2 Gigabit RJ45 ports
• 30W PoE+ ports, 802.3af/at
• Supports PoE power up to a total of 120W across all ports
• Ports 1~8 are PoE Long Range ports, supporting distances of up to 300 meters at 100Mbps and 800 meters at 10Mbps
• VLAN mode
• PoE Watchdog
SPECIFICATIONS:
Interface
8 PoE RJ45 ports + 2 Gigabit ports
Port speed
8 x10/100 + 2 x10/100/1000 Mbps
Power supply
Ports 1~8: PoE+ Up to 30W per port
Ports 1~8: PoE+ Long Range. Reaches up to 250 meters at 100Mbps and supplies 19.64 to 17.56W. Reaches up to 800 meters at 10Mbps and supplies between 7.38 and 6.67W, but requires use of the accessory
Up to 120W total PoE power
PoE Specifications
Complies with IEEE 802.3at PoE+ / IEEE 802.3af PoE
Data transfer rate up to
5.6Gbps
MAC table
8K
Jumbo Frame
9216Byte
Packet Buffer
4 Mbit
Operating Mode
VLAN (Isolated Port) / Default (Normal Mode) / CCTV (Extended Mode 250m)
Operating temperature
0° C - 40° C
Power supply
AC 100 V - 240 V
Installation
Desktop / Rack
Dimensions
220 (W) x 44 (D) x 150 (H) mm
Rack mounting
1U
Weight
1.88 kg
CONTENTS:
• PoE switch
• Power cable
• User manual
• Rack-mount brackets
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
