Shipping
Shipping in 2-4 business days
Description

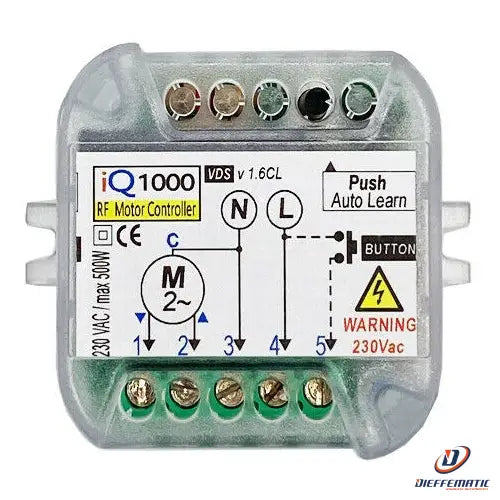

CONTROL UNIT FOR ROLLER SHUTTER MOTOR
MINIATURIZED
230V
+ 433.92 MHZ RECEIVER
+ PLASTIC ENCLOSURE
+ INPUT FOR PUSH BUTTONS
Professional
The MINIPROX control unit is a practical, functional device that is easy to install and use, and is suitable for simple operation of roller blinds and shutters.
This device uses the new, innovative rolling-code decoding system, which is safer and more advanced than the traditional fixed-code system.
It ensures safety, immunity to unintended activation, and ease of installation and expansion, all for greater comfort in your home.
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
ELECTRONICS MANUAL
Control unit for single-phase asynchronous motors powered by 220 V, 50 Hz mains voltage.
Wiring: Common = Neutral, Live to the black wire for lowering, Live to the brown wire for raising.
Essential for automating radio- and electrically controlled roller shutters.
Simplified programming for pairing remote controls using a button: P1; an LED indicates the pairing stages.
The control unit has a fixed operating time of 4 minutes.
All tubular motors designed for roller shutters or roller blinds have their own opening and closing limit switches, so first adjust the motor travel correctly to ensure the curtain rises all the way without being under tension, and does the same when lowering; then connect the motor only to the control unit
Dimensions H45 X L45 X S25 MM
24-month warranty
eb: 373047128567
