Description

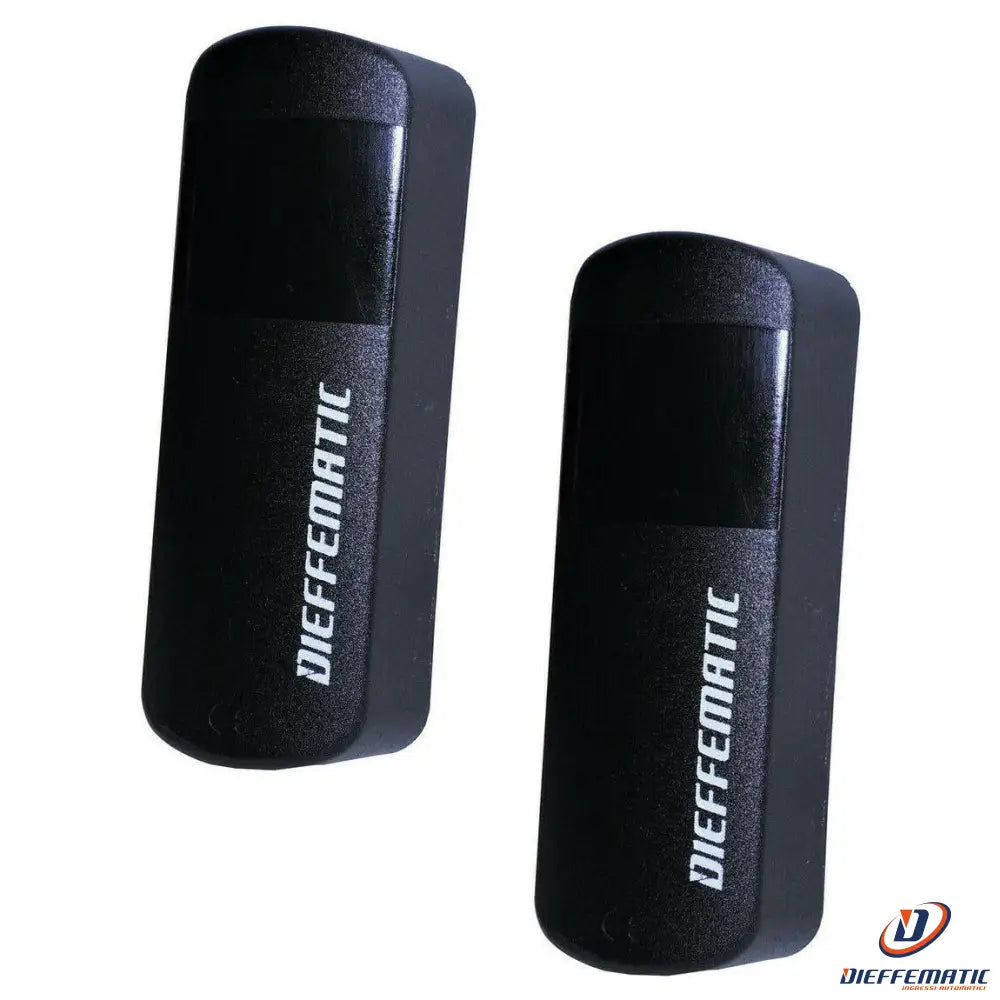

Pair of WALL-MOUNTED Photocells
Universal
Professional
Mod. FO-MATIC
- Power supply 12/35 V AC-DC
- Cross-synchronization at 24 Vac
- Built-in sun filter
- SNOW function, activated via jumper
Outdoor photocell with refined, coordinated design, made of material transparent to infrared rays.
The photocell creates a single-beam infrared barrier with digital coding on two possible channels (Channel A or Channel B).
The interruption of the infrared beam activates a relay device that switches a contact from C/NC to C/NO or vice versa.
The photocell can be used either as an accessory device for gate or sliding door automation systems or as an anti-theft sensor to detect the presence of unauthorized people and trigger the corresponding alarm.
Robust: polycarbonate housing
MAX. RANGE 15 METRES
DIMENSIONS 100 x 35 x 25 MM
Proportional LED alignment for easy and safe installation
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL
FEATURES:
Glass lens, range 15 m
Synchronized, range 15 m
Current consumption: RX (12V,5cc) 30mA
Current consumption: TX (12.5V DC) 35Ma
Current consumption: RX (24V AC) 70mA
Current consumption: TX (24V AC) 80mA
Emission band 950nm
Enclosure protection rating IP44
C/NO/NC contacts 24V 1A (resistive, non-inductive)
Operating temperature -20°C ÷ +55°C
24-month warranty
