Pair Of Surface Photocells Max. Range 60 M Cardin Cdr851t Automation

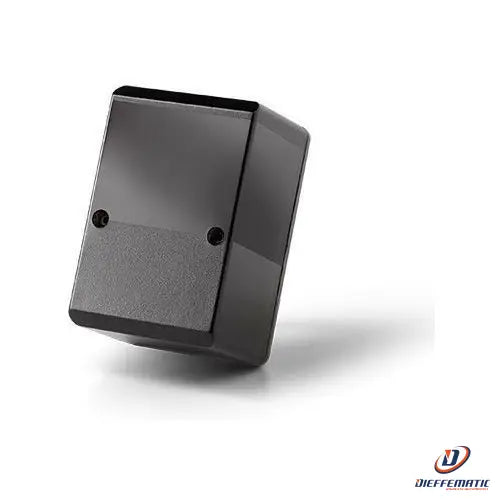

PAIR OF SURFACE PHOTOCELLS MAX. RANGE 60 m

Shockproof IP55 surface-mounted plastic container. Maximum range 60 m.

Mod. CDR851T

Version with anti-tamper tamper.

Range 15 m - 60 m
12/24 Vac-dc power supply
IP55 protection rating
Projector and receiver housed in watertight plastic containers.
Optics mounted on self-frictional joints, adjustable both horizontally, being able to perform
a rotation of 90°, which vertically with a possible rotation of +/-30° compared to the
standard position.
Control: double relay with exchanges in series.
Sensitivity adjustment trimmer on receiver (CDR851 version only).

The kits contain:
- 1 projector;
- 1 receiver;
- 2 closing windows for outdoor photocells;
- 2 plates for quick wall fixing;
- screws and gaskets.

POWER SUPPLY 12/24 Vac-dc
MAXIMUM RANGE 60 METERS
OPERATING TEMPERATURE -10...+55 °C

Modulated infrared barrier composed of projector and receiver. Represents
an effective detection system for the protection of passages or spaces, subject to
automated installations of doors and gates.
A container with a pleasant design contains innovative technical solutions that make the
extremely reliable and safe system in all working conditions.
Optics mounted on self-frictional joints, adjustable both horizontally, being able to perform
a rotation of 90°, which vertically with a possible rotation of +/-30° compared to the
standard position.
These two adjustments allow installations with lateral operation with respect to the
fixing plan and installations with projector and receiver positioned at different heights.
Double relay control with exchanges in series, as required by current regulations.
Extreme simplicity of assembly both for the surface fixing version and for the
built-in version.
The wide range of versions available satisfies all system needs.

24 month warranty
