Description
ACTUATOR for swing-leaf gates
230V
STROKE 400
NON-REVERSIBLE
Professional
**For leaves up to 2.50 m long and weighing 250 kg**

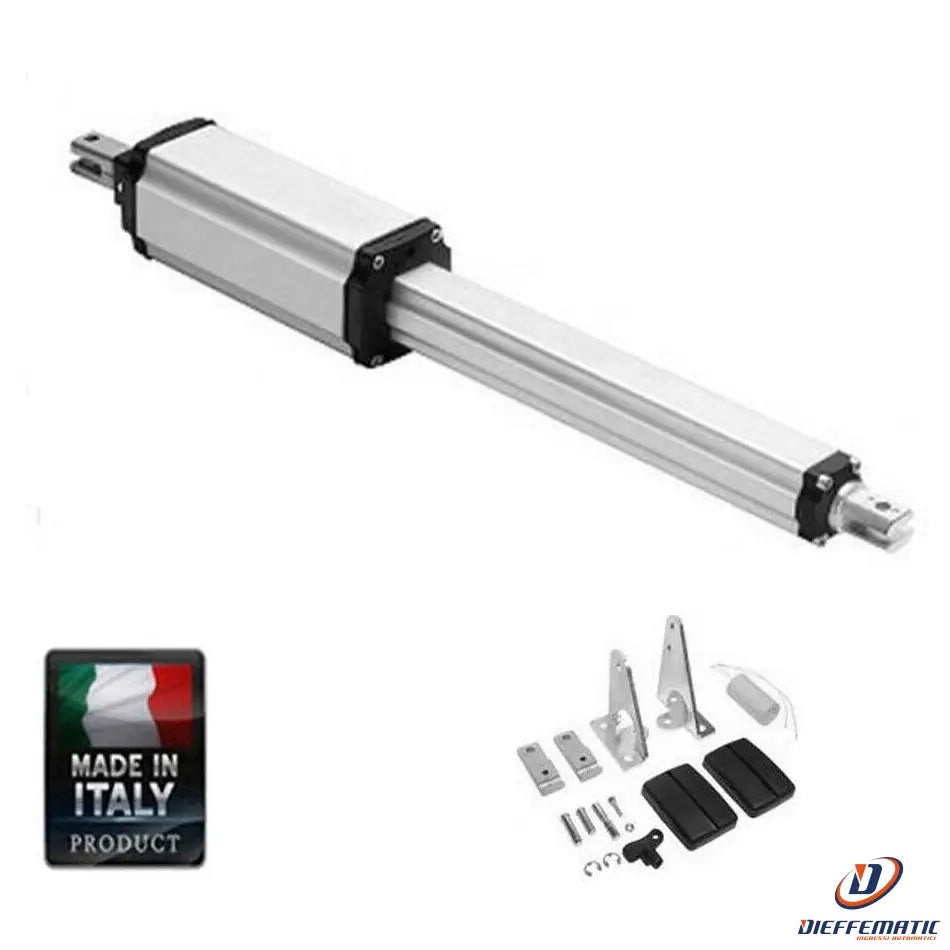

Model PM1 230 V
Linear electromechanical actuator for shared residential use, all-metal construction, stainless steel rod.
Once correctly installed, PM1 automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 250 kg and measuring no more than 2.50 metres in length. Its aluminium body and bronze gear train ensure a long service life.
The actuator requires an electric lock for the leaves.
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MECHANICAL INSTALLATION MANUAL
BRACKET DIMENSIONS:
KIT CONTENTS:
No. 1 linear electromechanical actuator for shared residential use, for outdoor use
Release with custom key. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V, 50 Hz. Weight 6.5 kg
No. 1 installation accessories
No. 1 instructions for installing the mechanical and electronic parts in ITALIAN
TECHNICAL DATA
PM (reversible)
-
PM1 (non-reversible)
Max. leaf weight
250 Kg
250 Kg
250 Kg
Max. leaf length
1.80 (300) m
2.50 (400) m
3.50 (600) m
Motor power supply
12Vdc
230 Vac
230 Vac
Motor power
50 W
250 W
250 W
Motor speed
900
800
800
Capacitor
/
12.5 ?F
12.5 ?F
Mechanical release for emergency operation
/
/
with key
Operating temperature
-20° C / +55° C
-20° C / +55° C
-20° C / +55° C
Weight
7.5 Kg
7.5 Kg
7.5 Kg
Protection rating
IP 55
IP 55
IP 55
90° opening time
15/25/30 sec
15/25/30 sec
15/25/30 sec
Rod stroke
300/400
300/400/600
300/400/600
Thrust force
1500 N
1500 N
1500 N
Average motor current draw
3 A
1 A
1 A
24-month warranty
